80 Voyager XP User Guide
If a barcode is not touched by a predefined window, it will not be decoded or output
by the scanner. If Presentation Centering is turned on by scanning Presentation
Centering On, the scanner only reads codes that pass through the centering win-
dow you specify using the Top of Presentation Centering Window, Bottom of
Presentation Centering Window, Left, and Right of Presentation Centering Win-
dow barcodes.

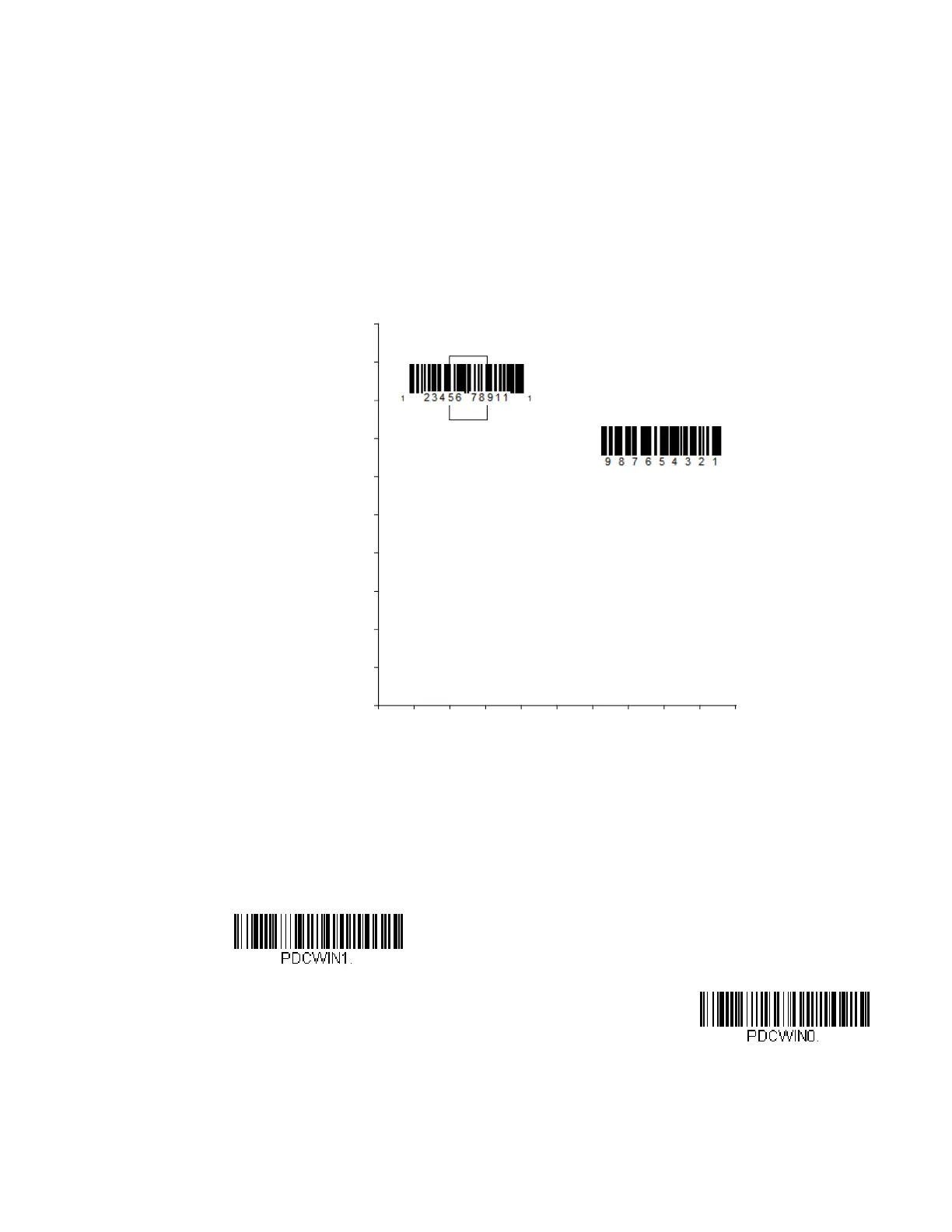

In the example below, the white box is the centering window. The centering window
has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Barcode 1
passes through the centering window, it will be read. Barcode 2 does not pass
through the centering window, so it will not be read.
Note: A barcode needs only to be touched by the centering window in order to be read. ?It
does not need to pass completely through the centering window.
Scan Presentation Centering On, then scan one of the following barcodes to
change the top, bottom, left, or right of the centering window. Then scan the per-
cent you want to shift the centering window using digits on the Programming
Chart. Scan Save. Default Presentation Centering = 40% for Top and Left, 60% for
Bottom and Right.
0
Barcode 1
Barcode 2
10 20 30 40 50 60 70 80 90 100%
100
90
80
70
60
50
40
30
20
10
0%
Presentation Centering On
* Presentation Centering Off
