5.6.2 Fire protection equipment (FPE) / fire interface extinguishing (FIE) outputs
2
ABC
3
1 Übersicht (Gesamt)
2 Übersicht (AÜE)
3 Übersicht (Akustik)
4 Übersicht (BSE/BSL)
5 Einzelauswahl
6 Sammelzuweisung
Steuergruppen
3
5JKL
3
DEF
7PQRSCLR
3
1 zones
2 control zones
- detector/transponder
4 configuration
5 settings
6 verify and save
configuration
3
3
1 overview (all)
2 overview (ATU)
3 overview (sounder)
4 overview (FPE/FIE)
5 select single assignment
- multiple assignment
control zones
3
3 3
control zone
control zone : +0001+
control 1
3
function type
1 ATU
2 sound
3 FPE
4 FIE
5 common
6 not used
3
1 function type : FPE
2 hardware : R 1
3 inverted : off
4 trigger events : 1
5 pulse duration (s) : off
6 pulse latched : off
7 trigger prevention : 2
*control zone >0007<
3

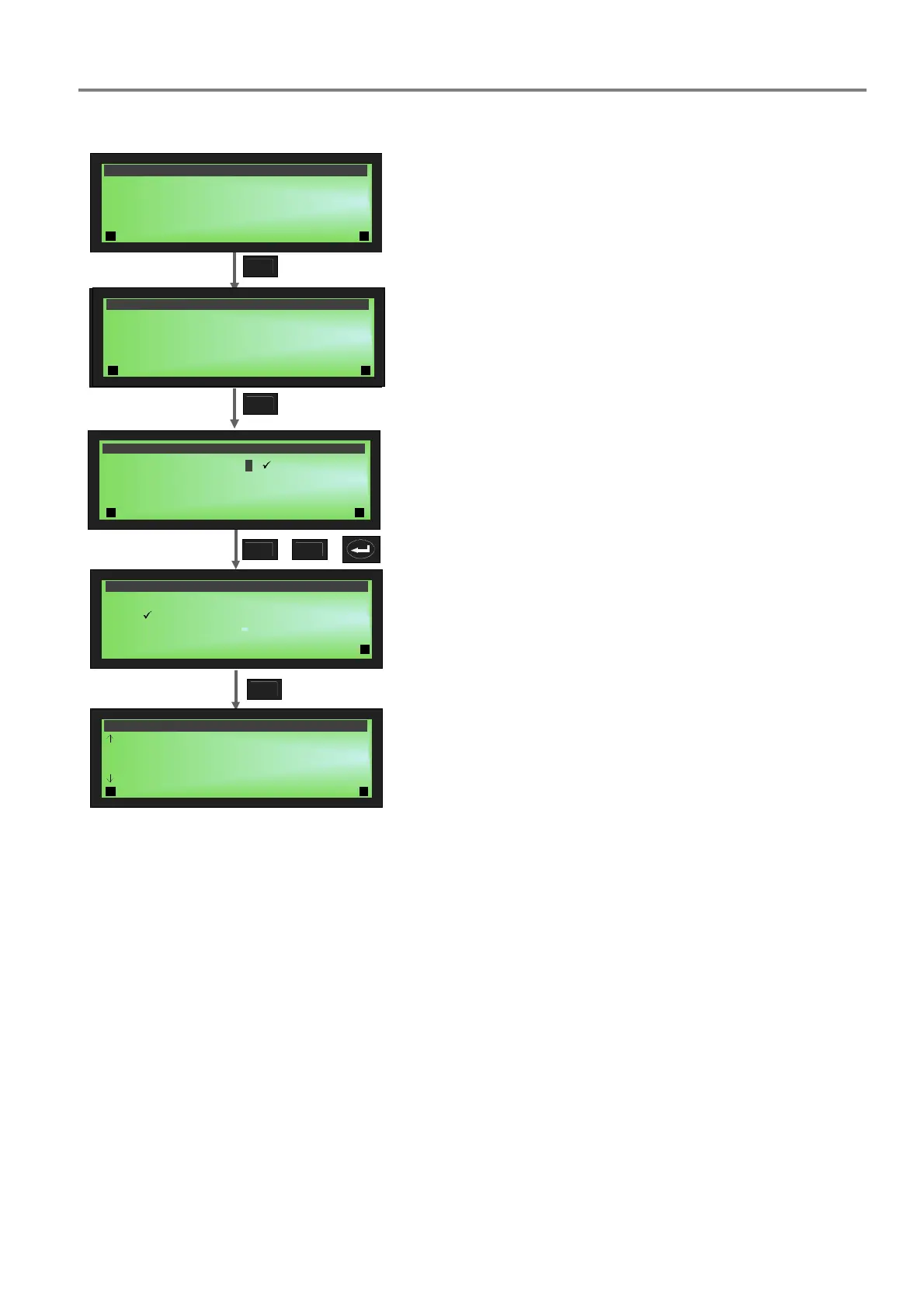

Fig. 39: >FPE/FIE outputs< menu screens
Control zones
Single assignment
Select control zone
Select FPE
Control zone 7 is now an FPE control zone and will no longer
be triggered when the fire protection equipment is switched off.
