Honeywell HC30W45R3 - CHAPTER 10 TROUBLESHOOTING; Troubleshooting for Dynamic Intra Frame Period

113 pages

To Next Page

To Previous Page

CHAPTER

Honeywell 30 Series IP Cameras User Guide

10 TROUBLESHOOTING

Troubleshooting for Dynamic Intra Frame Period

Before connecting the camera to NVR(s) and VMS(es) with Smart codec unsupported,

log on to the camera’s web page, go to Setup

 Camera Setup  Video  STREAM 

Video settings for main stream/Video settings for sub stream/Video settings for

third stream and uncheck Dynamic I-Frame period as shown in the following

illustration.

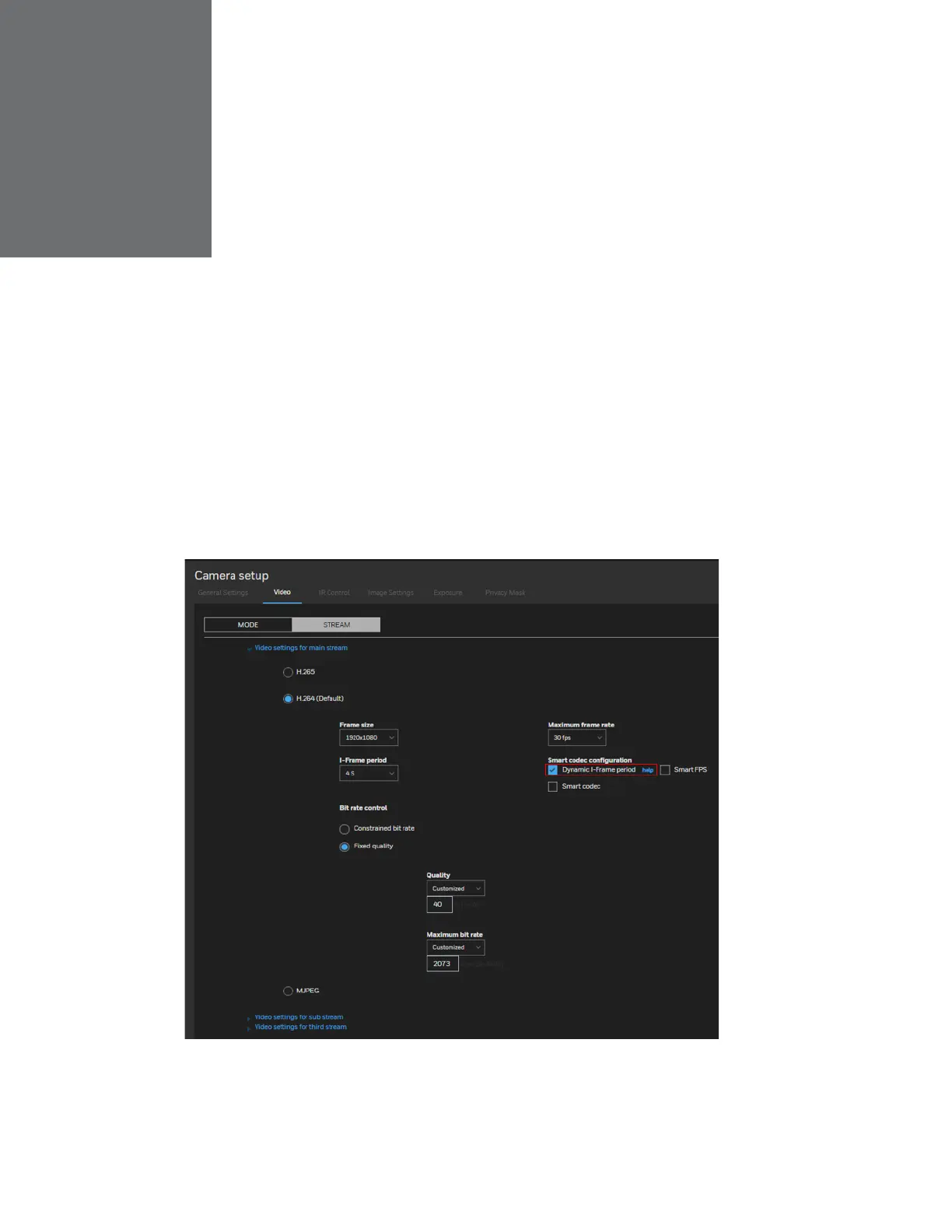

Figure 101 Video Settings for Dynamic I-Frame Period

Otherwise, the following problems may be observed on NVR(s) and VMS(es), when an

operator is doing actions, e.g. play live videos, play back videos and export clips.
