Honeywell 30 Series IP Cameras User Guide
SD card test: Click to test your SD card. The system will display a message indicating the
result as a success or a failure. If you want to use your SD card for local storage, format it
before use. For more information, see SD Card Format on page 70.
View: Click to open a file list window. This function is only for SD card and network
storage.
• If you click the View button for an SD card, a content management page will prompt
so that you can manage the recorded files on SD card. For more information, see
Content Management on page 71.
• If you click the View button for network storage, a file directory window will prompt
for you to view recorded data on network storage.
Create folders by date, time, and hour automatically: If you select this item, the system
will automatically create folders by the date when video footages are stored onto the
network storage.
Add Server
Click Add server to open the server setting window. You can specify where the
notification messages are sent to when a trigger is activated. A total of 5 server settings
can be configured.
There are the following server types available: Email and HTTP. Select the item to display
the detailed configuration options. You can configure either one or all of them.

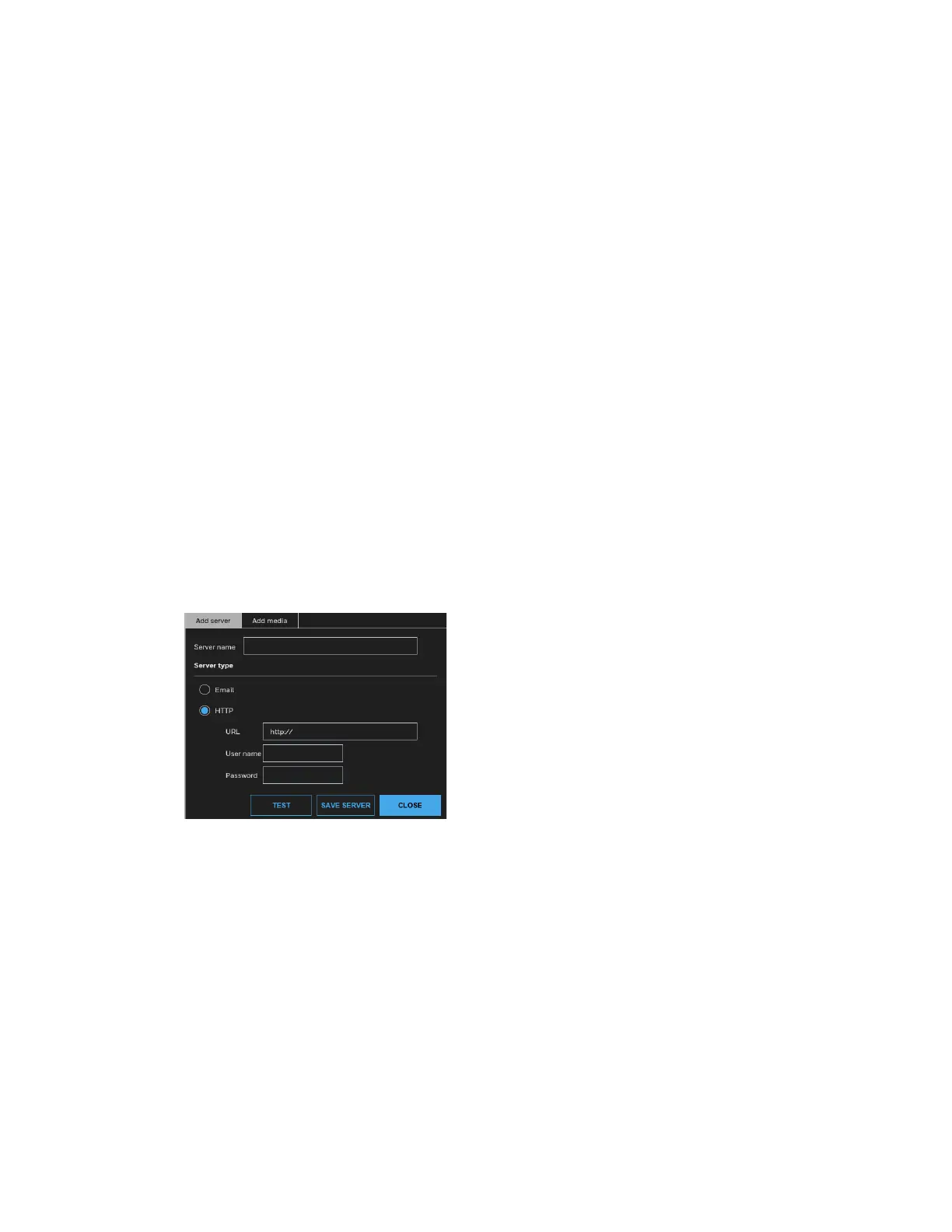

Figure 75 Add Server
Server Type - Email
Select to send the media files via email when a trigger is activated.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
