4R PRO Four regional views interactively displayed when the
field of view changes in any of the views
1O8R One original and eight regional views
1P3R One Panoramic and three Regional views (Wall
mount)
One Original View
When mounted on a ceiling, the fisheye camera can cover an approximate of 64 m²
surveillance area (installed at a height of approximately 3 meters), while keeping details
in videos with recognizable facial features of people passing through the area.
This layout is especially adequate for taking an overview glimpse of the surveillance area
when mounted on the ceiling.

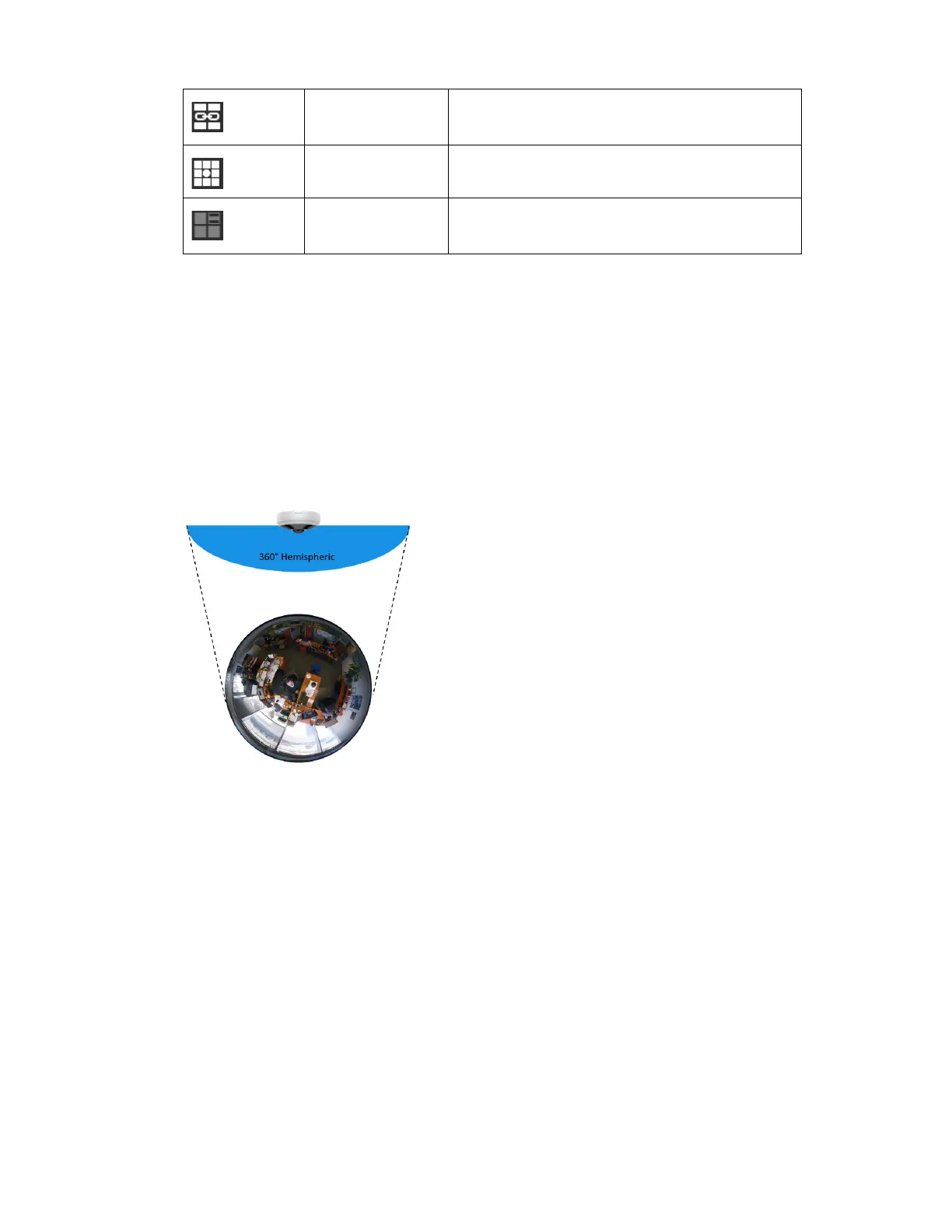

Figure 23 One Original View
One Panoramic View
With the image correction algorithms in firmware, the hemispheric image is transformed
into a rectilinear stripe in the 1P display mode. You can use the PTZ panel or simply use
mouse drags to quickly move through the 360º panoramic view. (Mouse control on the
Panoramic view is available with the Ceiling mount type.)
When mounted on a wall, this layout can cover a 180º overview from side to side, e.g., on
the entrance of a building or a corridor.
