Honeywell 30 Series IP Cameras User Guide
Model Main Stream Sub Stream Third Stream
HC30WE5R2
(5MP)
2560x1920/2048x1536/1600x1200/
1280x960/800x600/704x480/640x4
80
800x600/704x48
0/640x480
640x480/70
4x480
HC30WF5R1 1920x1920/1536x1536/1200x1200/
960x960/480x480
960x960/480x48
0
480x480
HC30W25R3(
4MP)
2688x1520/1920x1080/1600x904/1
280x720/640x360
1280x720/640x3
60
640x360
HC30W25R3(
5MP)
2560x1920/2048x1536/1600x1200/
1280x960/800x600/704x480/640x4
80
800x600/704x48
0/640x480
640x480/70
4x480
HC30W25R3-
12V(4MP)
2688x1520/1920x1080/1600x904/1
280x720/640x360
1280x720/640x3
60
640x360
HC30W25R3-
12V(5MP)
2560x1920/2048x1536/1600x1200/
1280x960/800x600/704x480/640x4
80
800x600/704x48
0/640x480
640x480/70
4x480

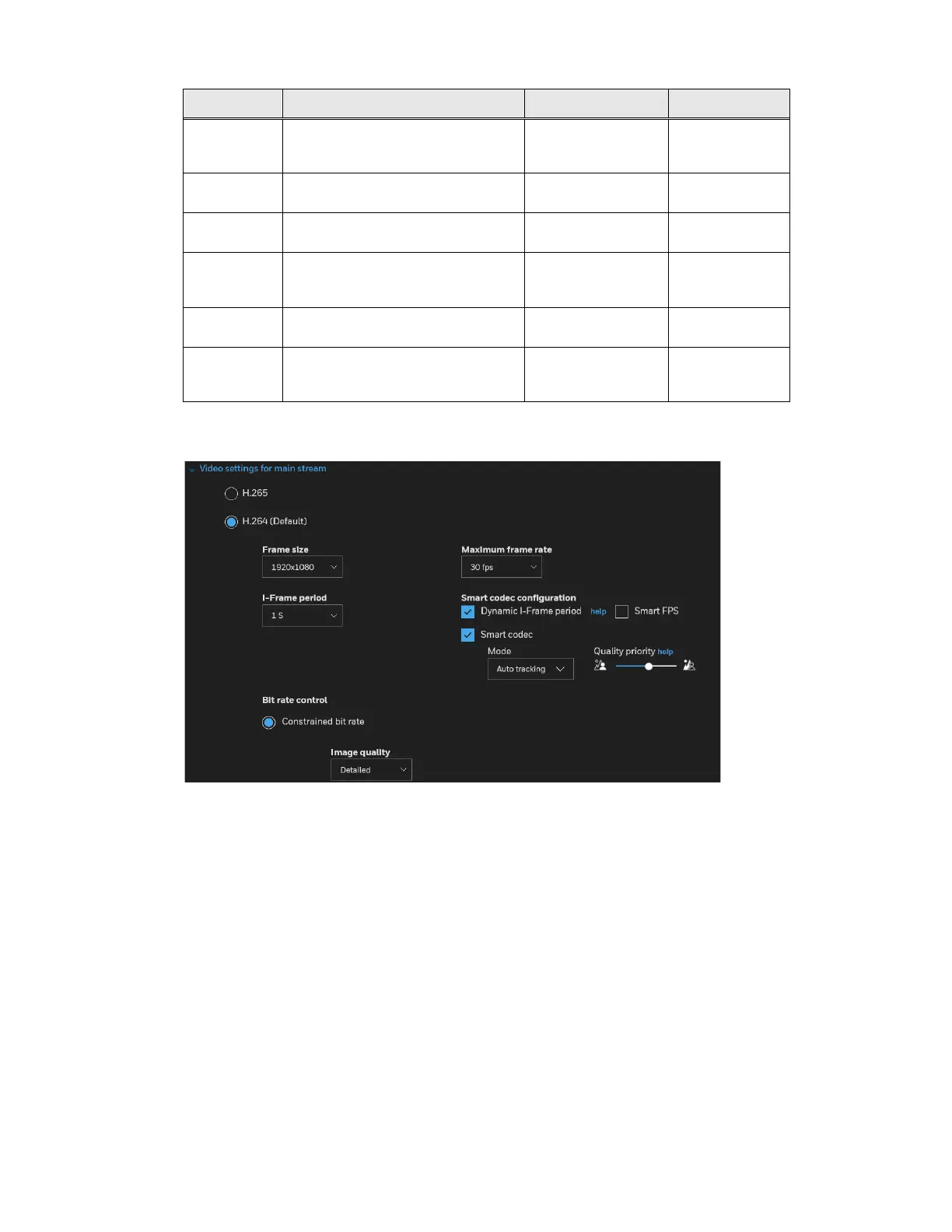

Figure 35 Video Stream Settings
Frame Size
You can set different video resolutions for different viewing devices. For example, you
can configure a smaller frame size and lower bit rate for remote viewing on mobile
phones and a larger video size and a higher bit rate for live viewing on web browsers or
recording the stream to an NVR. A larger frame size takes up more bandwidth.
Maximum Frame Rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for
smoother video quality and for recognizing moving objects in the field of view.
If the power line frequency is set to PAL, the frame rates are selectable from 1-50 fps. If
the power line frequency is set to NTSC, the frame rates are selectable from 1-60 fps.
You can also select Customized and manually enter a value.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
