Honeywell 30 Series IP Cameras User Guide

Discovering Your Camera in the Network

Double-click on the desktop and the following figure is displayed:

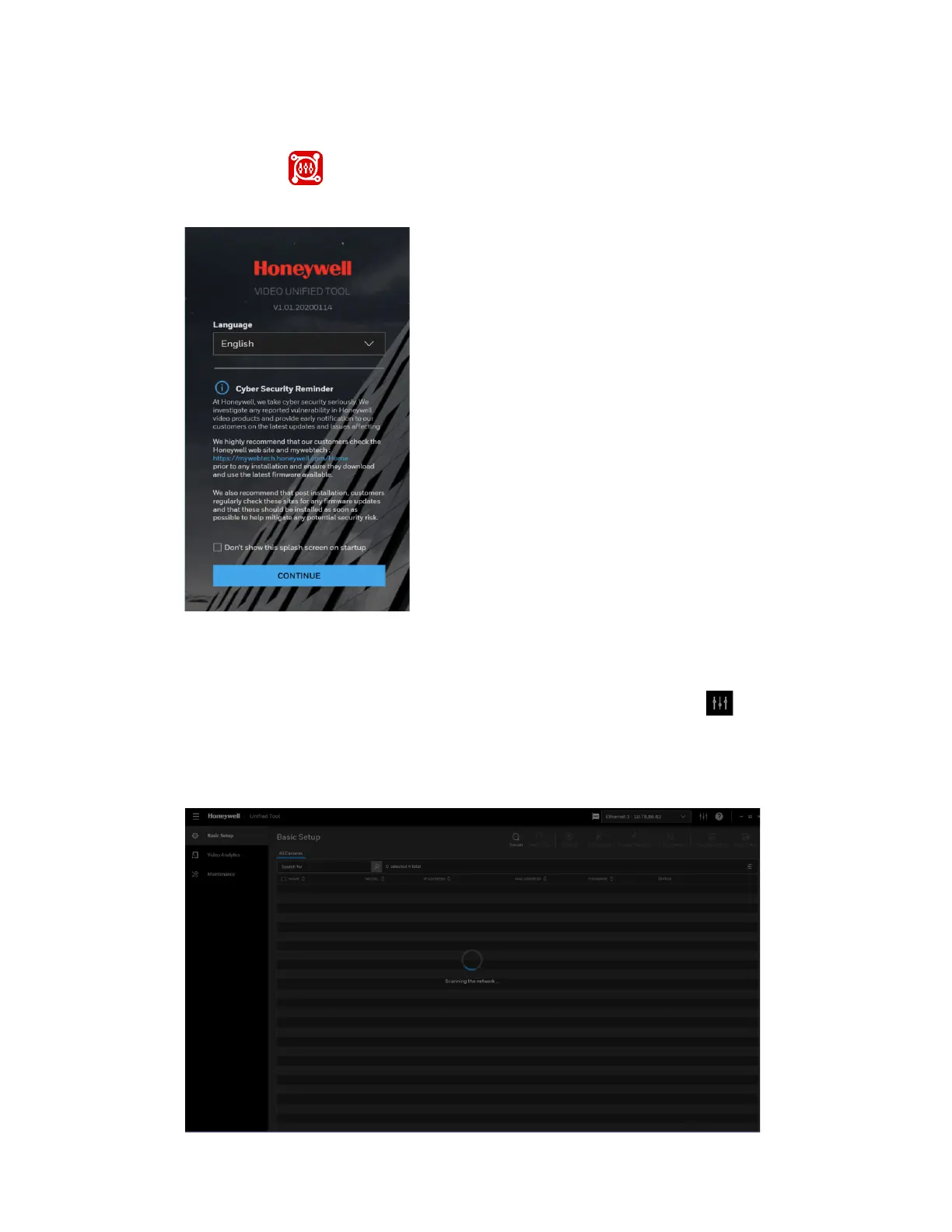

Figure 4 Splash Screen

1. Select your language from the drop-down list of Language. Currently, only English

is supported.

2. Check “Don’t show the splash window on startup” and this page can be skipped

next time. If you want to check the splash window again, click as shown in

Figure 6 and select the checkbox of Show the splash page on startup.

3. Click CONTINUE. It will scan devices in the network automatically.

Figure 5 Scanning the Network
