Honeywell 30 Series IP Cameras User Guide

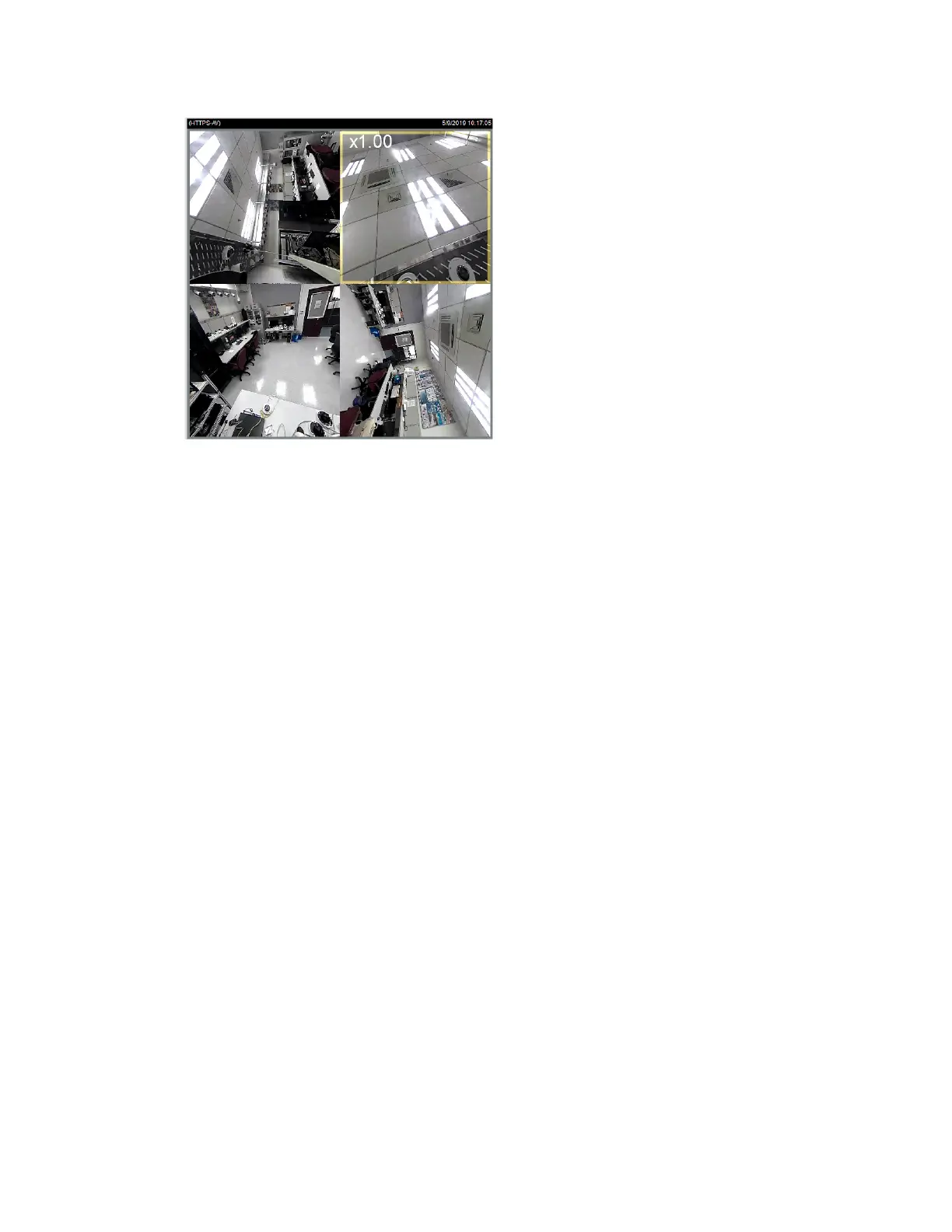

Figure 29 Four Regional Views

Four Regional Proactive Views

This layout is like the layout of the Four Regional Views except that the quad view

windows consecutively rotate in correspondence to the change of view area in one

window.

Note: The zoom in/out and tilt control is not available in this mode.

One Original and Eight Regional Views

This layout control and look and feel are identical to that as described in the One

Original and Three Regional Views.
