You can use a mouse click and drag to quickly scroll horizontally through the
surveillance area.

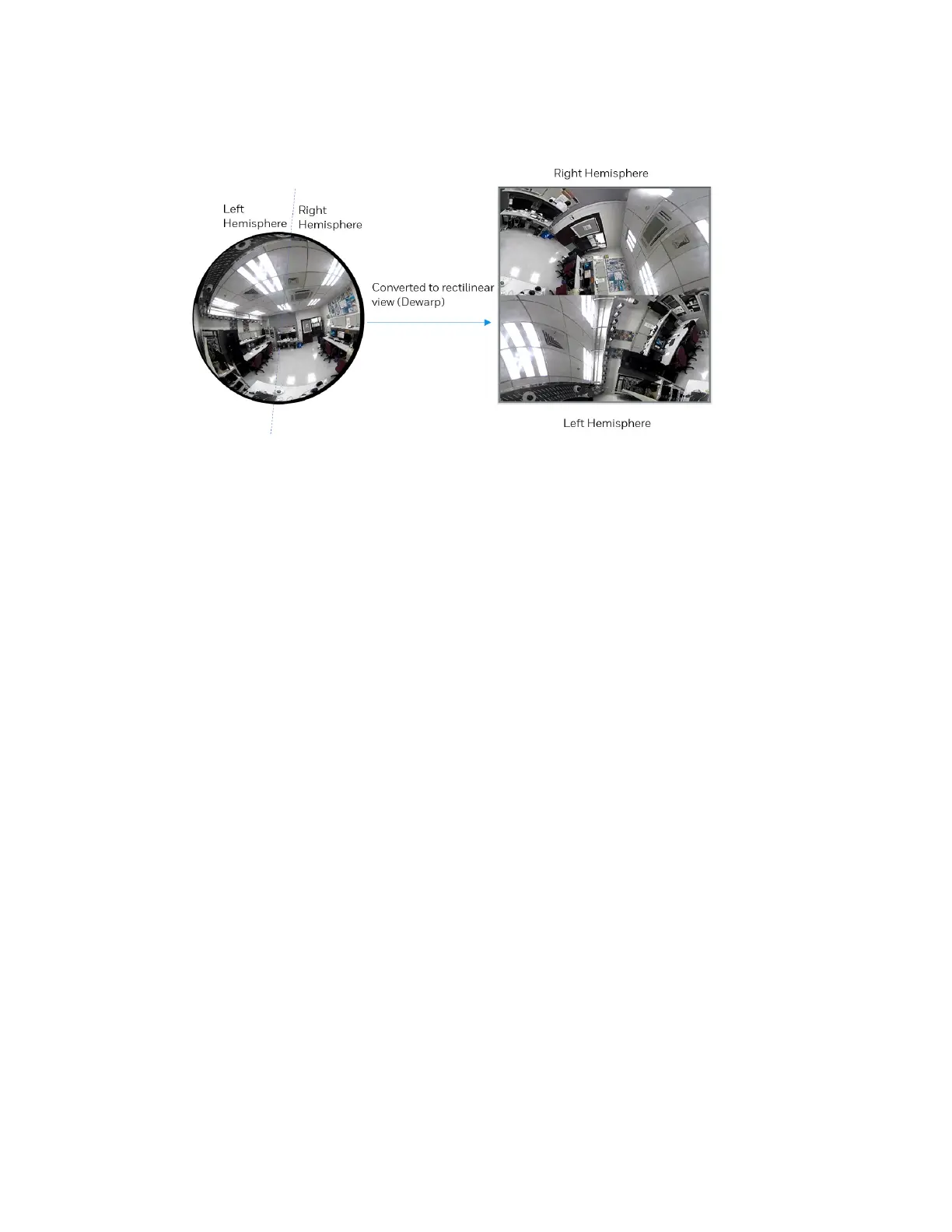

Figure 26 Two Panoramic Views
One Panoramic and Three Regional Views
This layout provides access to two regional views and the reference to their relative
positions on a panoramic view. It is available only when you select the Wall mount type,
see the Mount type section in Video Settings on page 25.
The operations of this layout is similar to the operations of the One Original and Three
Regional Views, see One Original and Three Regional on page 20.
One Original and Three Regional Views
This layout provides access to multiple live view sections within the hemisphere and the
reference to their relative positions on an Original circular view. The FOV (Field of View)
indicators (#1 ~ #3) interact with your current operation when you zoom in/out or move
the live view window to a different place.
You can zoom in or out or move to other areas within the hemisphere using identical
methods as previously described in the 1R mode.
You can also change the locations of Regional views by dragging the FOV indicators on
the "Original" circular view.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
