Honeywell 30 Series IP Cameras User Guide
The main page includes the following areas: system menu, live view tool bar, language
selection and user account settings.

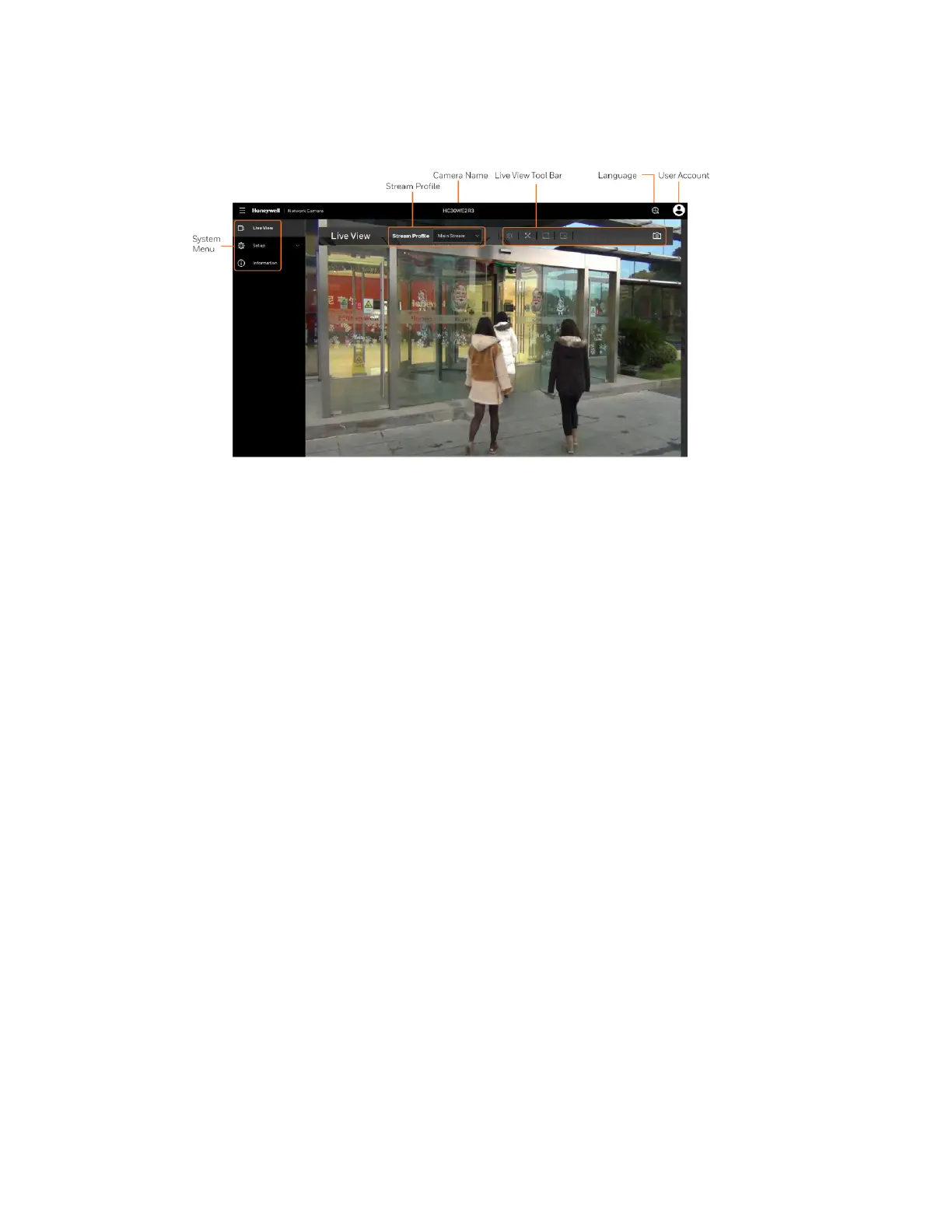

Figure 17 Main Page
The main page of the Fisheye model (HC30WF5R1) is different from the other models.
For the main page of the Fisheye model, see Fisheye Main Page on page 16.
System Menu
When you log in to the camera via the web client, the main page opens by default. To
access the Setup page or Information page, select the corresponding tab.
Stream Profile
In the Stream Profile list, select Main Stream, Sub Stream, or Third Stream to set the
stream profile.
Main Stream
Delivers high definition video for real-time monitoring, recording,
and storage. Uses the most bandwidth.
Sub Stream Delivers low/standard definition video, typically for remote
monitoring in lower network bandwidth environments.
Third Stream
Delivers low definition video.
The properties for each stream type are configured on the Setup  Camera Setup 
Video page (see
Configuring Video Settings on page 27).
Camera Name
You can change the camera name according to your needs. For more information, see
Configuring System General Settings on page 76.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
