Honeywell 30 Series IP Cameras User Guide

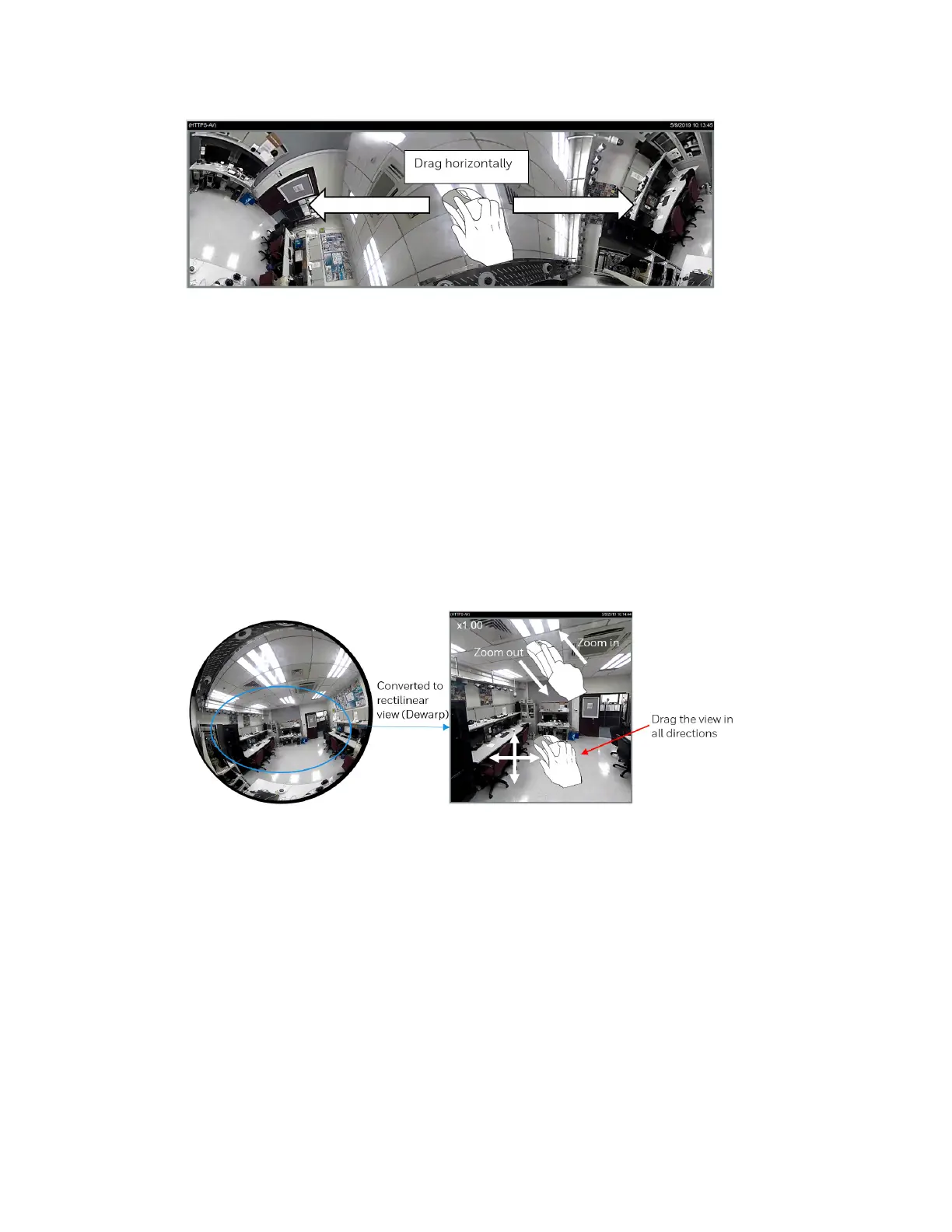

Figure 24 One Panoramic View
Note:
This layout is applicable to an overview, the Zoom in/out function does not apply in
this mode.
One Regional View
This layout provides access to one image section within the hemisphere. You can zoom
in or out (using the mouse wheel or PTZ panel) or move to other areas in the hemisphere
using mouse clicks and drags. A single click on an object can bring the object to the
center of your view window. Click and hold down the left mouse button, and you can
drag the view in all directions.
Figure 25 One Regional View
One Panoramic and Two Regional Views
This layout provides access to two regional views and the reference to their relative
positions on a panoramic view. This layout is available only when you select the Wall
mount type, see the Video Settings on page 25.
The operations of this layout is similar to the operations of the One Original and Three
Regional Views, see One Original and Three Regional Views on page 20.
Two Panoramic Views
This layout provides simultaneous access to both the left and right sections of a
hemisphere. Both panoramic views are corrected into a more viewable dewarped image.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
