Honeywell 30 Series IP Cameras User Guide
time. By default, the start and end time of day mode are set to 07:00 and 18:00.
Sensitivity of IR: Adjust the responsiveness of the IR filter to lighting conditions as Low,
Normal, or High.
Configuring Video Settings
Go to Setup  Camera Setup  Video.
This section describes how to configure viewing window and video streaming properties
(format, resolution, frame rate, bit rate, I-frame interval and so on.).
Mode
Go to Setup  Camera Setup  Video  MODE.
In MODE tab, you can set the pixel mode for different cameras.
Note:
Changing the video mode will clear the following settings: privacy mask, exposure
widow, motion and focus window.

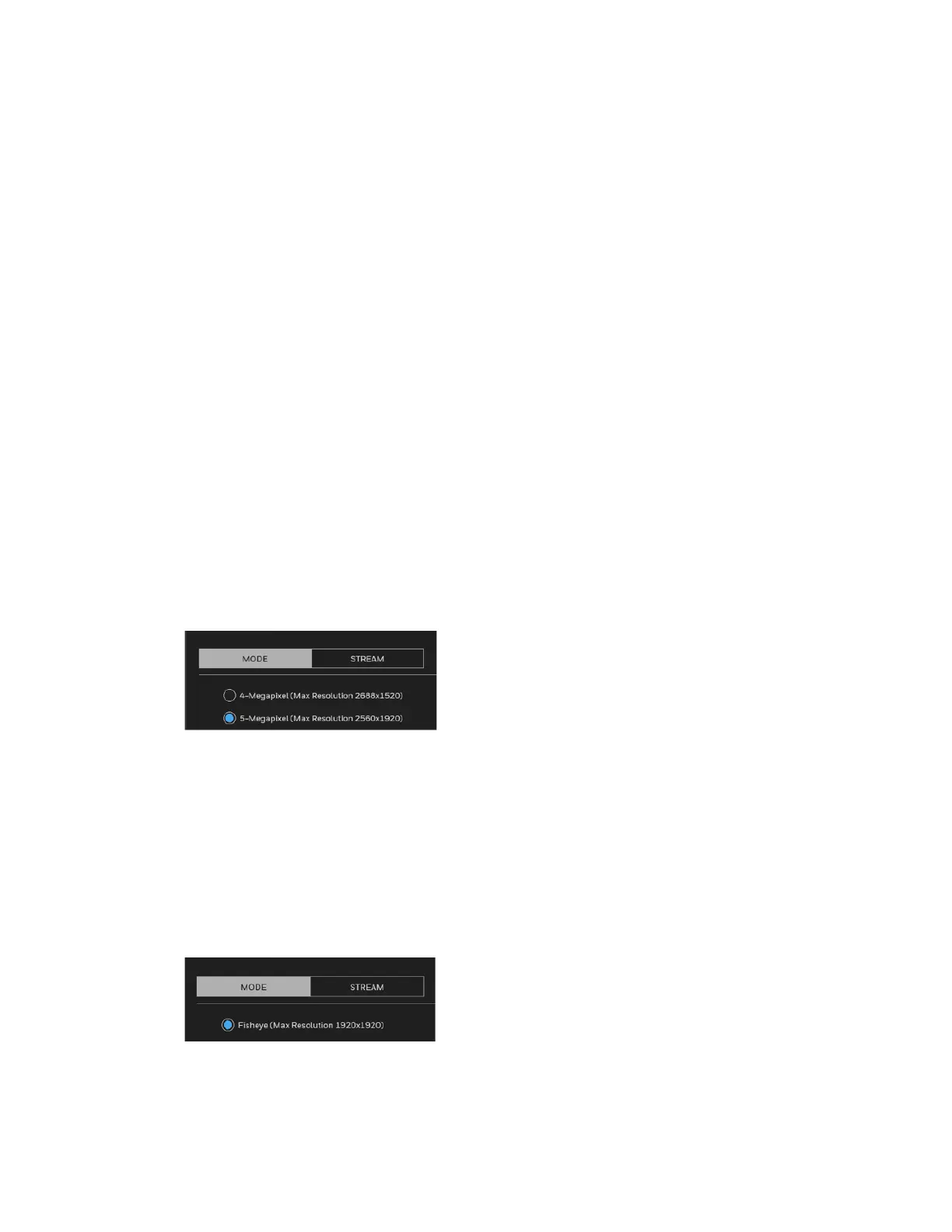

Figure 32 Mode Tab 1
4-Megapixel (Max Resolution 2688x1520): Select it and the maximum resolution will
be 2688x1520. The aspect ratio will be 16:9. This mode applies to
HC30W45R3/HC30W45R2/HC30WB5R1/HC30WB5R2/HC30WE5R3/
HC30WE5R2/HC30W25R3/HC30W25R3-12V cameras (see Figure 32).
5-Megapixel (Max Resolution 2560x1920): Select it and the maximum resolution will
be 2560x1920. The aspect ratio will be 4:3. This mode applies to
HC30W45R3/HC30W45R2/HC30WB5R1/HC30WB5R2/HC30WE5R3/
HC30WE5R2/HC30W25R3/HC30W25R3-12V cameras (see Figure 32).
Figure 33 Mode Tab 2
Fisheye (Max Resolution 1920x1920): Select it and the maximum resolution will be
1920x1080. This mode applies to HC30WF5R1 cameras (see Figure 33).

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
