12
Honeywell 30 Series IP Cameras User Guide

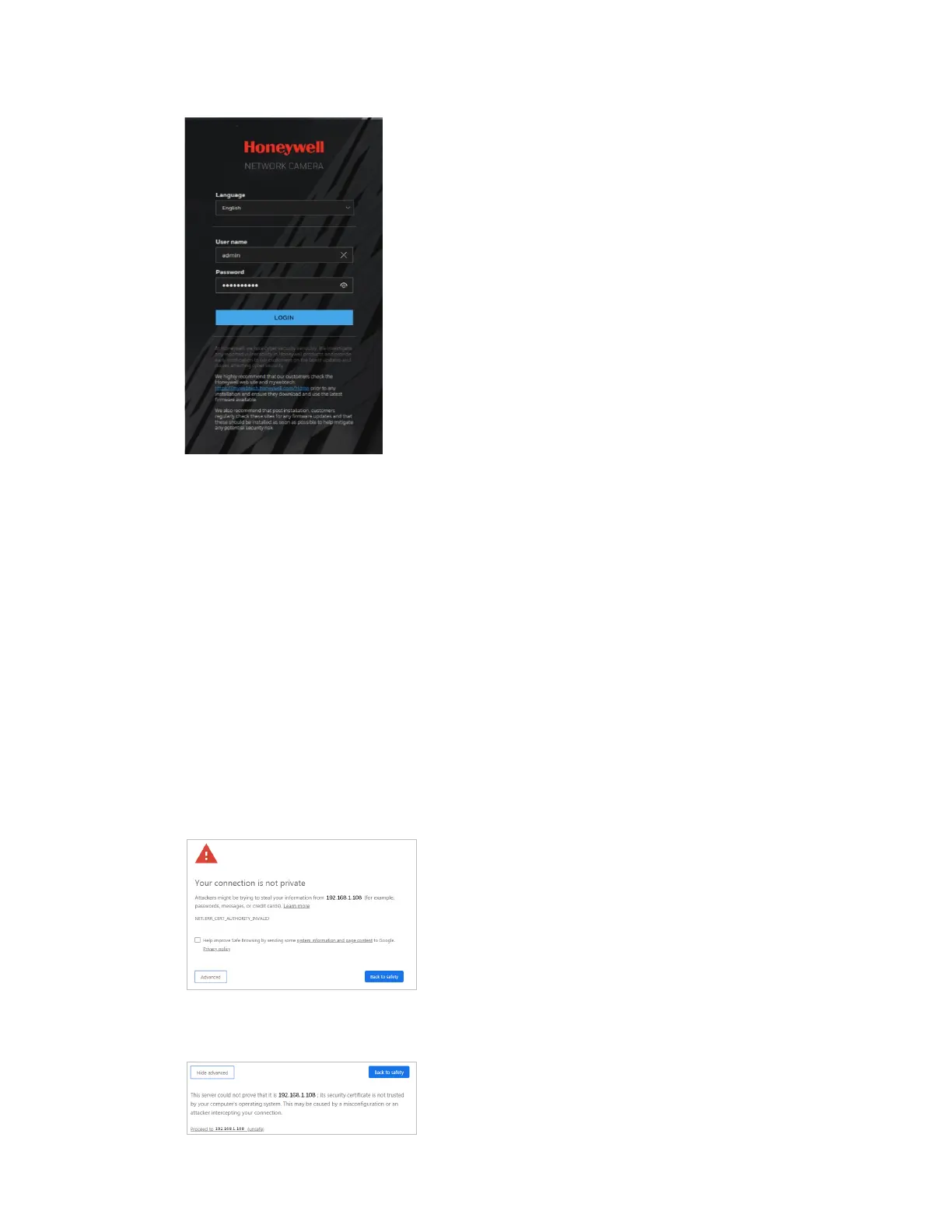

Figure 12 Login Page
If you are logging in for the first time, you will be prompted to download and install the
plugin. Follow the on-screen instructions to install it. When the installation is complete,
the web client automatically refreshes, and the main page opens.
Logging in Via Google Chrome
1. Type the camera’s IP address in the address bar of Google Chrome and press
Enter on the keyboard. For example, if your camera’s IP address is 192.168.1.108,
you would type https://192.168.1.108.
Note:
Chrome 71 (or later) is supported for H.264 video. Chrome is not supported for
2. The following window is displayed. Click Advanced.
Figure 13 Safety Problem
3. The following window is displayed. Click Proceed to 192.168.1.108 (unsafe).
Figure 14 Security Certificate Problem

Table of Contents

Other manuals for Honeywell HC30W45R3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell HC30W45R3 and is the answer not in the manual?

Honeywell HC30W45R3 Specifications

General IconGeneral
TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Maximum operating distance30 m
IK codeIK10
Form factorSpherical
Mounting typeCeiling/wall
Product colorBlack, White
International Protection (IP) codeIP66
White balanceAuto, Manual
Minimum illumination0.03 lx
Bit rate controlConstant Bit Rate (CBR)
Total megapixels5 MP
Gain control typeAuto
Maximum resolution2560 x 1920 pixels
Video formats supportedH.264, H.265
Analog signal format systemNTSC, PAL
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor typeCMOS
Number of sensors1
Optical sensor size1/2.7 \
Lens diameter2.8 mm
Fixed focal length2 mm
Maximum aperture number2
Wi-FiNo
Number of users10 user(s)
Ethernet interface typeGigabit Ethernet
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size256 GB
DC output voltage12
Power source typeDC, PoE
Power consumption (max)6.49 W
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90 %
Windows operating systems supportedWindows 10, Windows 7
Weight and Dimensions IconWeight and Dimensions
Depth89.51 mm
Width117.11 mm
Weight540 g
Package weight880 g
