8.4.3 Privacy Zones, Continued
2. Select the camera. In the above example, there are 16 cameras shown. If your
MaxCom Gold supports eight (8) cameras, only cameras 1 through 8 will be
displayed.

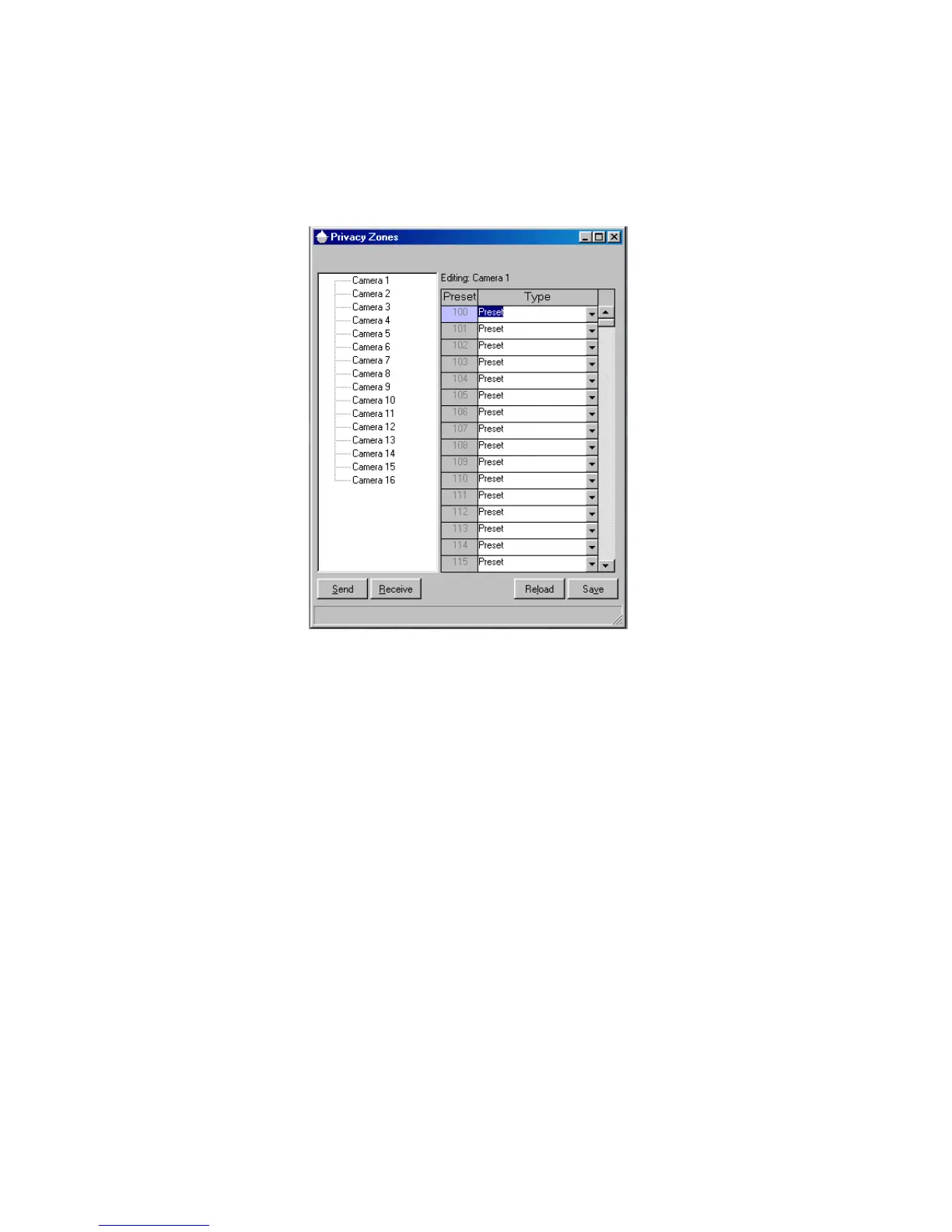

For example, click on camera 1. The following menu is displayed.
Vertical Scroll Bar – To view more presets for the selected camera, click on the
arrows on the vertical scroll bar. One click on an arrow moves the screen up or
down one preset at a time. Holding down the left mouse button while pointing to an
up or down arrow, continuously scrolls through the presets until the mouse button is
released or the end of the available presets (100 – 127) is reached. Dragging the
button in the scroll bar allows larger steps to be made.
There are several buttons on the bottom of the window:
Send – After editing the fields, click on the Send button to transmit the configuration
to the MaxCom Gold.
Receive – To transmit the current configuration of Preset Titles stored in a MaxCom
Gold to the PC configuration utility, click on the receive button.
Reload – To return the screen to the default configuration or to the configuration
prior to any changes made in this editing session, press the Reload button.
Save – After editing, click on Save to save your changes.
Rev. 1 84 900.0560
18-July-2005
