114 MPA2C3 Installation Guide
Door access mode indication
On the panel’s information card Normal Door Access Mode functions are described
in wording in WHITE. Where wording in RED is available at some functions (e.g.
OUT / AUX R-NO/R-NC jumpers) AND Reversed Door Access Mode has been acti-
vated, then the wording in Red must be considered.
In the figure below, identify the wording in RED for Reversed Door Access Mode
indicators.

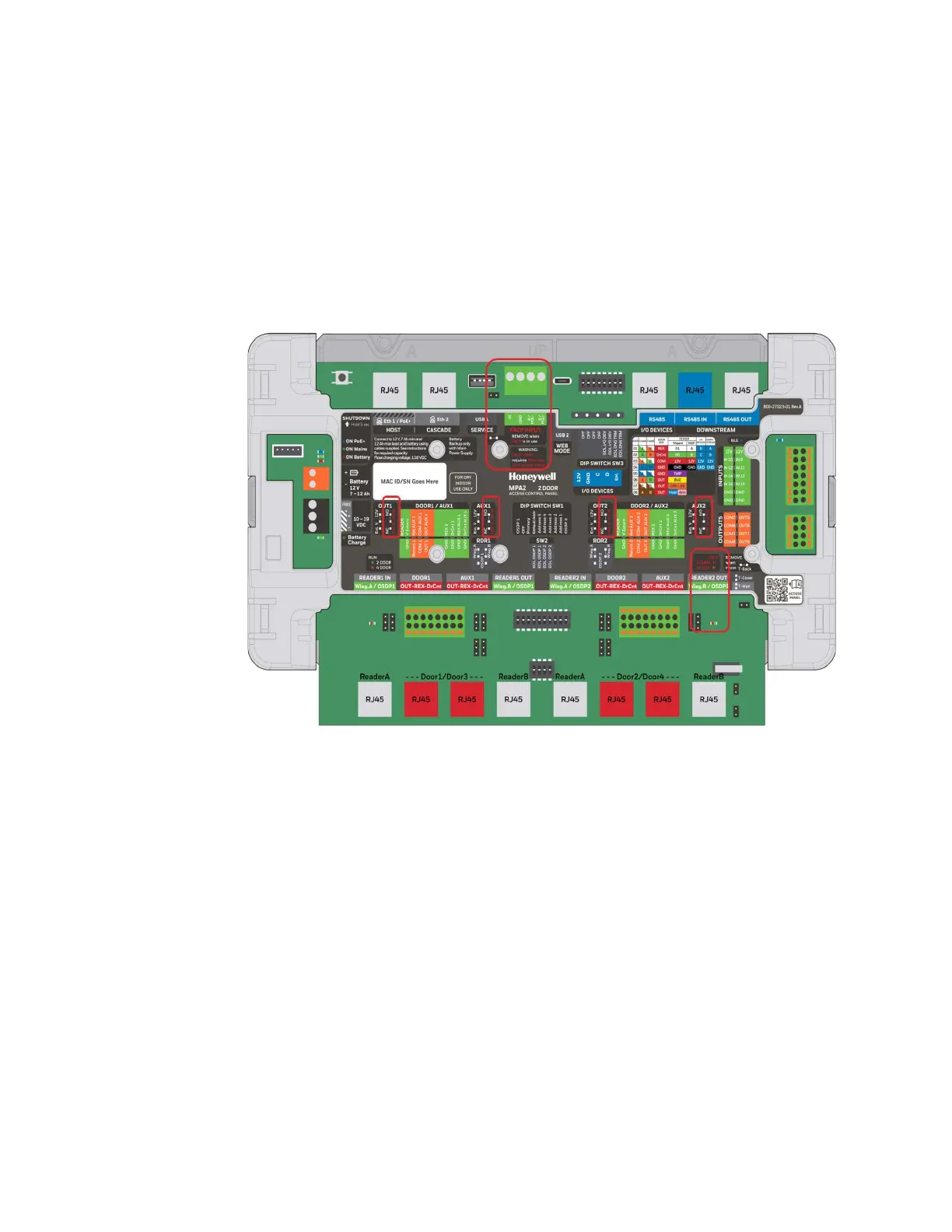

Figure 3-43 he wording in RED for Reversed Door Access Mode indicators.
When Reversed Door Access Mode is activated, the amber FACP LED is ON, indi-
cating that FACP Input can be connected.
