Honeywell MPA2C3 Installation Manual

136 MPA2C3 Installation Guide
Ethernet – Network Dedicated to Access Control
Note: Router must provide DHCP service.

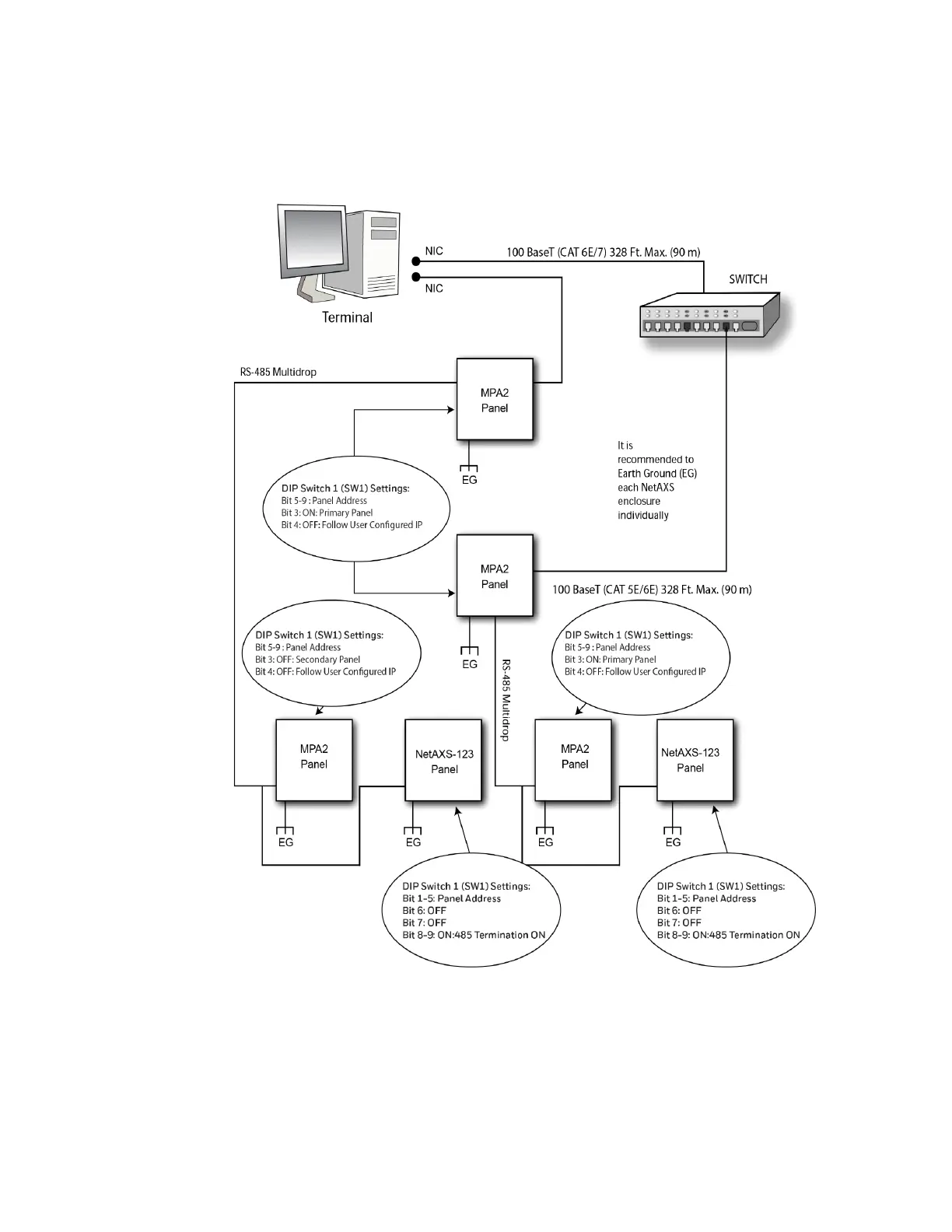

Figure 4-1 Ethernet – Network Dedicated to Access Control
Note: You should ground each MPA2C3 Standard Metal Enclosure panel individually with
an Earth Ground.
ACS4,OR ACS2,
OR ACS8 Panel
ACS4,OR ACS2,
OR ACS8 Panel
ACS4
ACS4,OR ACS2,
OR ACS8 Panel
ACS4,OR ACS2,
OR ACS8 Panel
ACS4,OR ACS2,
OR ACS8 Panel
