MPA2C3 Installation Guide 67
10. terminal and let it come online, it will show up as “New Reader with address 0”
11. Assign reader address as Door 2, Reader IN
Option 2: reset all reader and reassign all one by one
1. Connect all readers from MPA2C1 to MPA2C3 panel to the designated OSDP1
and OSDP2 terminals

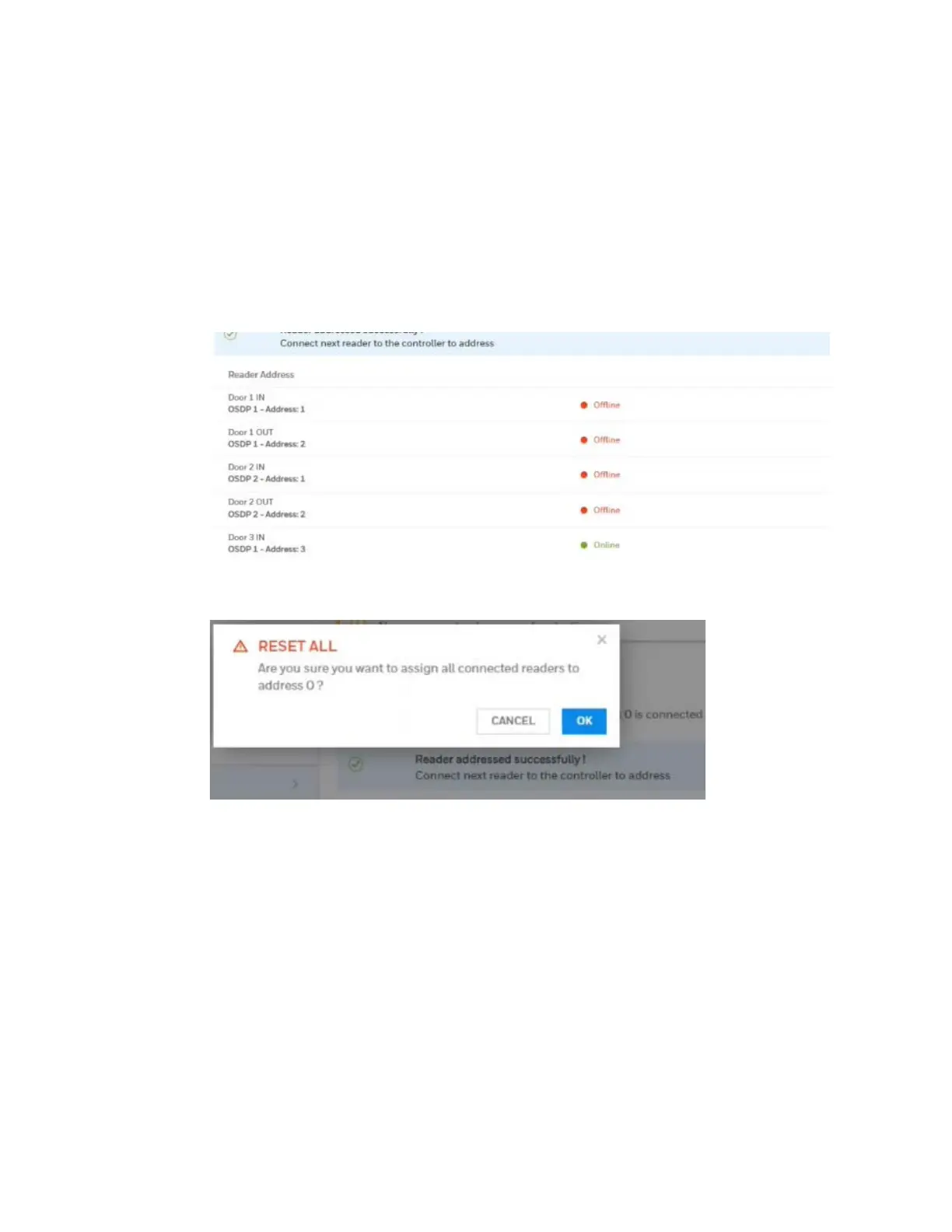

2. Click “RESET ALL” to reset addresses of all the connected reader to address 0
A warning will appear.
3. Click OK to reset all connected readers to address 0
4. Click Cancel to keep the addresses as they were
1. Disconnect all the readers and follow the steps in "6.x.2 Address assignment
procedure for OSDP readers "
Testing the Reader Addresses
