48 MPA2C3 Installation Guide
Wiring Readers
The RJ45 reader terminals are used for both Wiegand or OSDP readers. On the
information card is a description for the wiring to the RJ45 PINs and wire func-
tions.

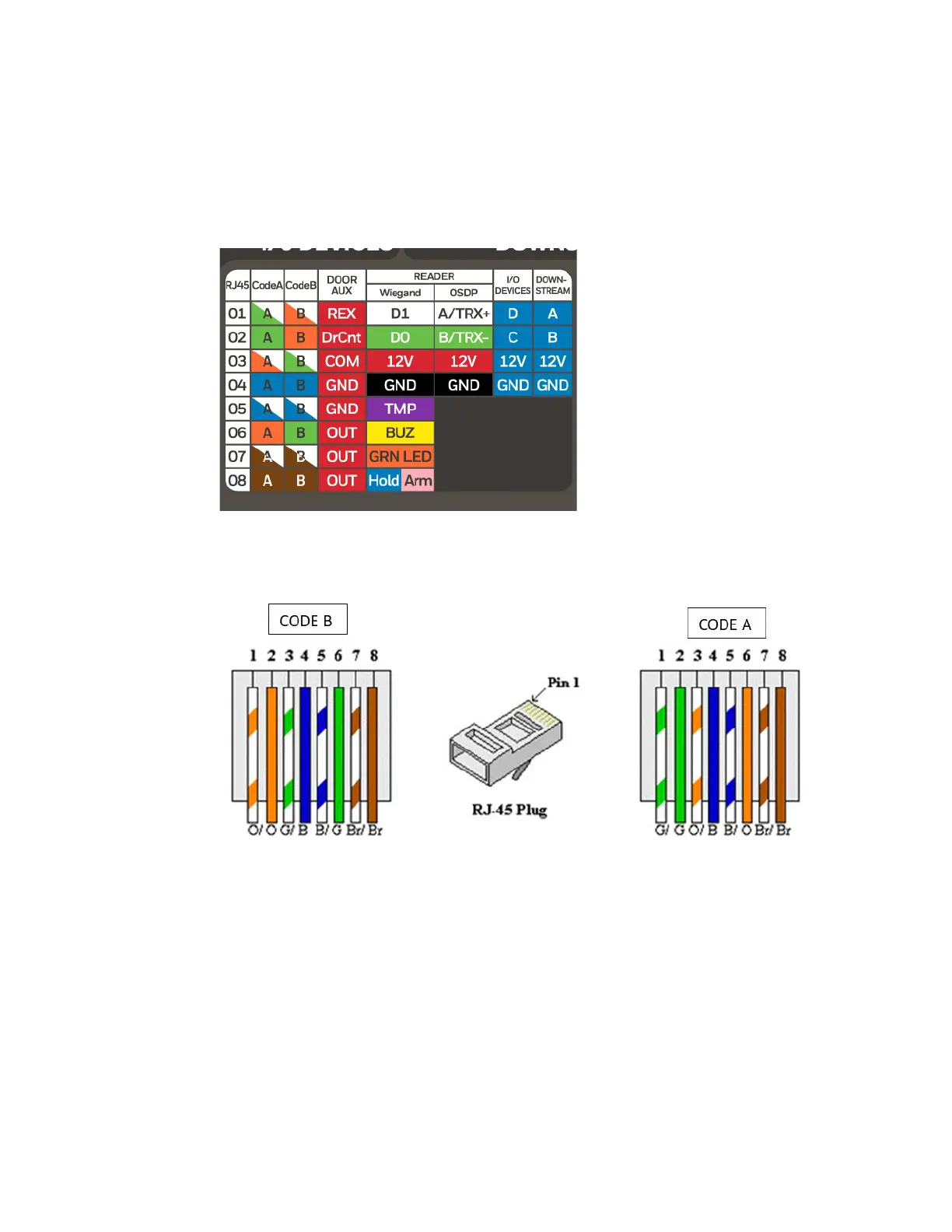

Figure 3-14 The Pin number correspond with the below RJ45 connector setting.
Use the correct RJ45 connector type for the correct type and size of the wires, when
using CAT cable.
When using thicker cables (AWG18 - AWG20), an MPA2RJ (RJ45 -8 screw connec-
tor) is required to connect the reader to the panel.
