Ethernet Virtual Loop with All Panels on Common IP Subnet

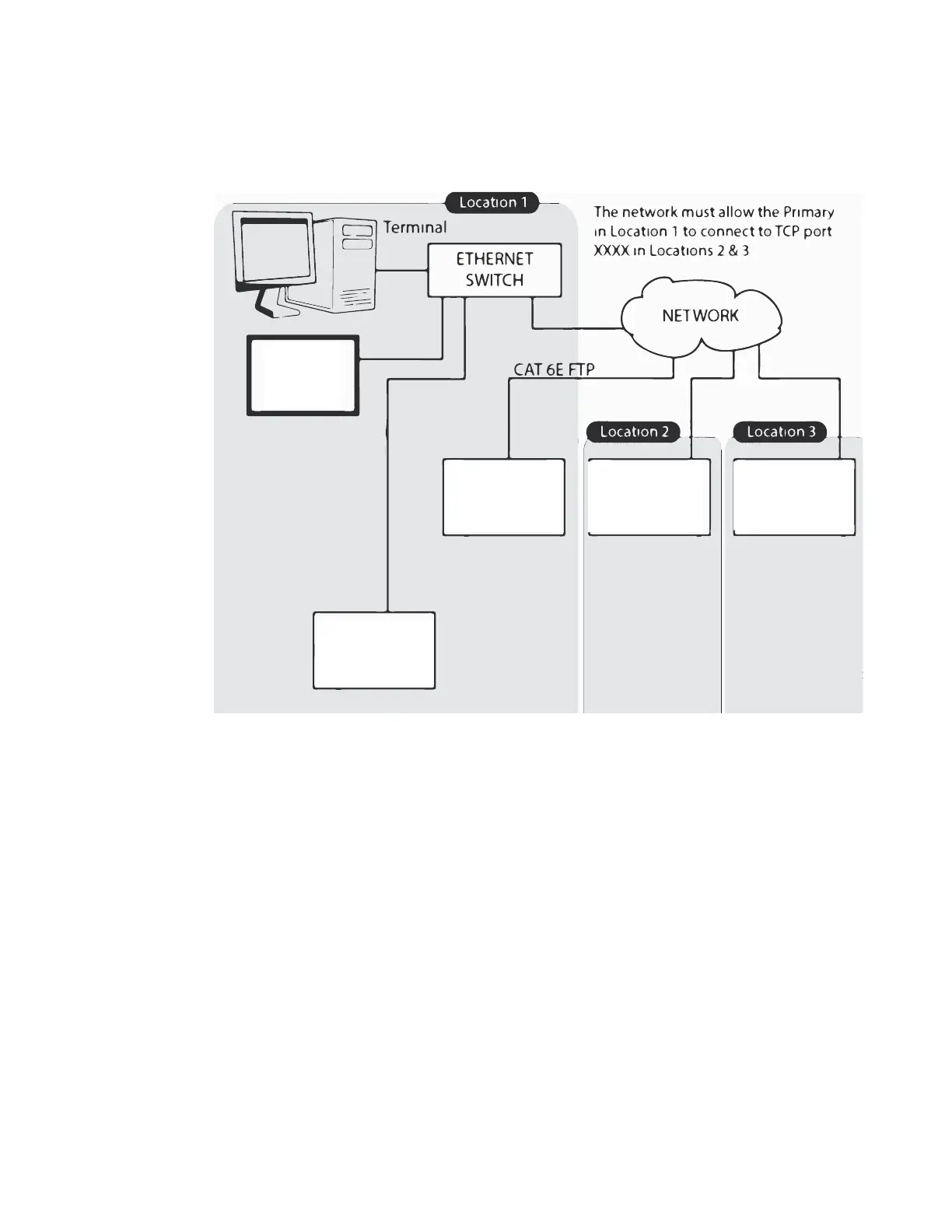

Figure 4-4 Ethernet Virtual Loop (EVL) with All Panels on Common IP Subnet
Note: The network must provide DHCP server (or use dedicated Network configuration with
a router, as shown in next section).
Note: The Network must provide firewall protection from unauthorized access.
Note: EVL connected MPA2 downstream panel communication has not been evaluated by
UL.
ACS4,OR ACS2
OR,ACS8 Panel
ACS4
ACS4,OR ACS2
OR,ACS8 Panel
ACS4,OR ACS2
OR,ACS8 Panel
ACS4
MPA2C3
Panel
ACS4,OR ACS2,
OR ACS8 Panel
ACS4,OR ACS2,
OR ACS8 Panel
ACS4,OR ACS2,
OR ACS8 Panel
ACS4,OR ACS2, OR
ACS8 Panel
