22 MPA2C3 Installation Guide
Access Control Panel Wiring and Components
Note: This device complies with part 15 of the FCC Rules (the FCC certification will be
processed in the future). Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

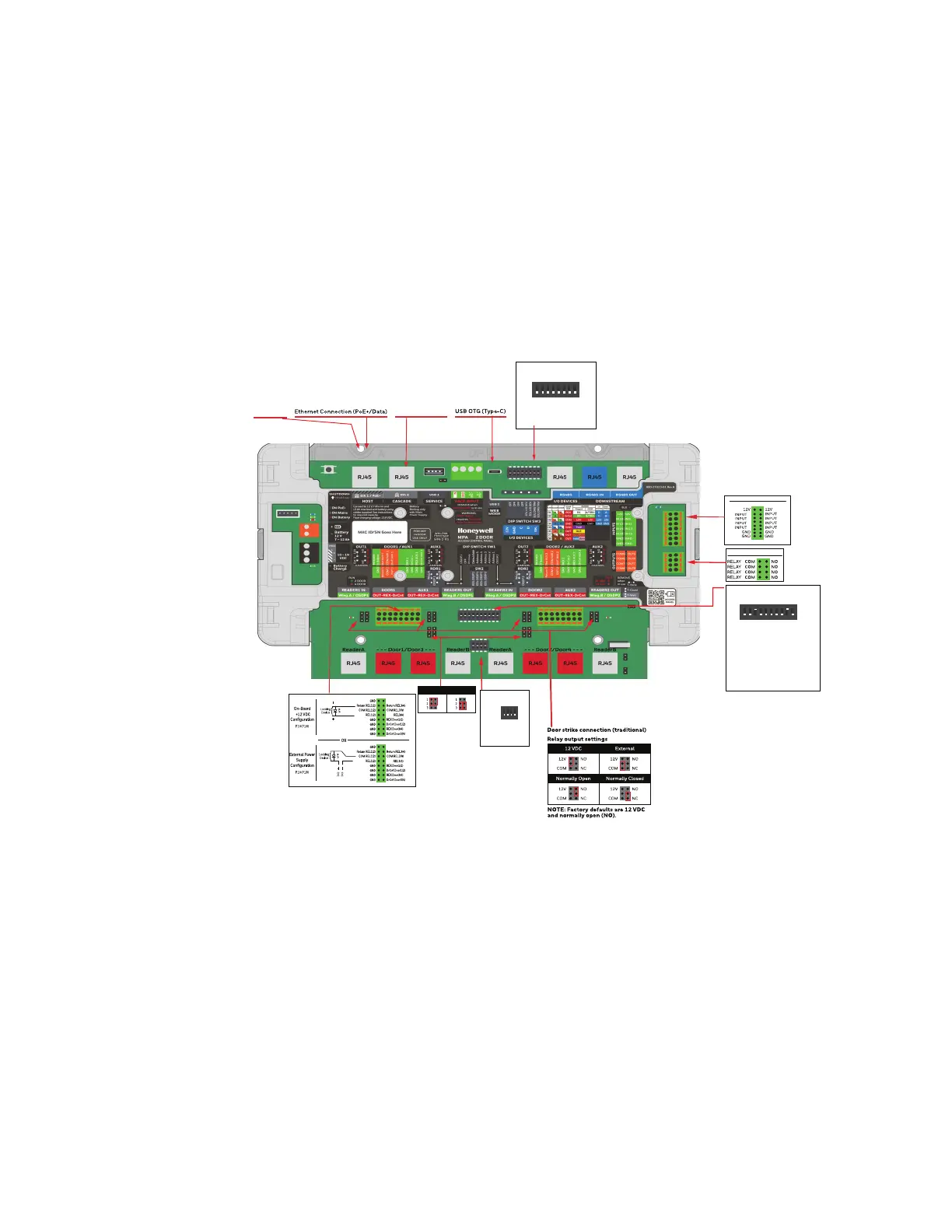

Figure 2-1 The following figures show the MPA2C3 panel wiring and components.
Warning: Do not plug in unknown USB devices (for example, USB Killers) which can damage
hardware components. This access control unit is not designed with a protective
function for any deliberately damaged USB devices. Honeywell is not responsible for
your losses caused by using deliberately damaged USB devices.
8 Auxiliary Inputs
4 Auxiliary Relay Outputs
PoE Switch
DIP Switch 3 (SW3)
OFF
12345678
ON
Set
1-4 OFF
5 EoL RS485 bus I/O Devices
6 EoL RS485 bus I/O Devices
7 EoL RS485 bus Downstream Panels
8 EoL RS485 bus Downstream Panels
10
14
12
16
11
9
13
15
5
6
7
8
Set
DIP Switch 1 (SW1)
OFF
12345678910
ON
1Wiegand READER 1(A/B)-OSDP1
2 OFF
3 secondary /Primary panel(ON)
4 User IP address /Deafault IP address
5 Address 5
6 Address 4
7 Address 3
8 Address 2
9 Address 1(ON)
10 Wiegand READER 2(A/B)-OSDP2
Set
DIP Switch 2 (SW2)
OFF
1234
ON
1 EoL OSDP1
2 EoL OSDP1
3 EoL OSDP2
4 EoL OSDP2
OUT
READER V Extern
OUT
OUT
OUT
READER V Extern
OSDP Reader
Wiegand Reader
