MPA2C3 Installation Guide 129
Mounting the Enclosure
Wiring the Panel – Metal Enclosure
1. Mount the panel into the metal housing and secure it with 4 M5 screws.
2. Metal housing and secure it with 4 M5 screws.

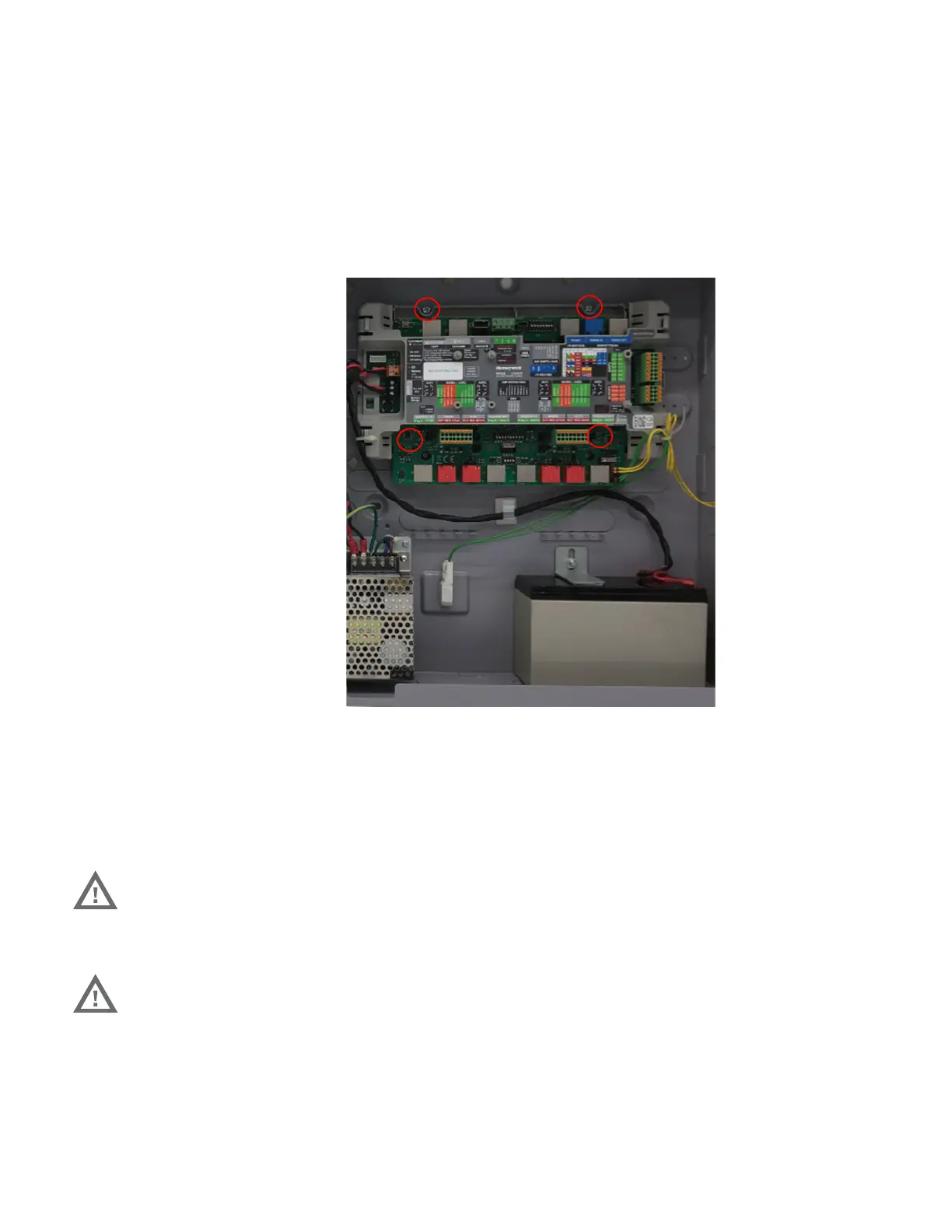

Figure 4-3 Installing the Panel
Wiring to Power Supply and Tamper Connector – Metal Enclosure
Warning: Use a static strap whenever touching the panel to ensure protection from ESD
(Electrostatic Discharge).
Warning: Do not apply power at this time.
