120 MPA2C3 Installation Guide

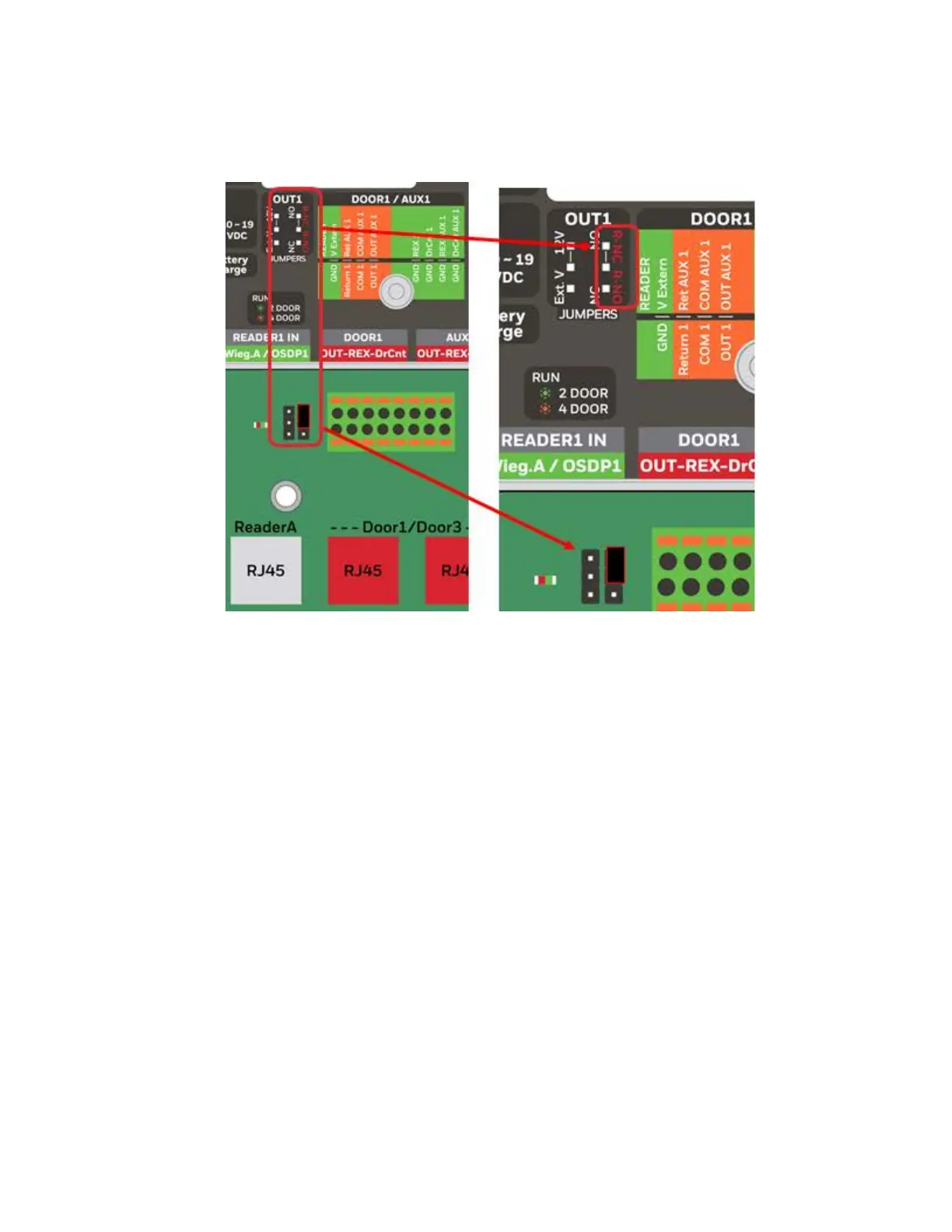

a. Set the Jumperhead to the Red R-NC (Normally Closed in Reversed Door
Access Mode).
b. This is the correct setting to connect power-to-lock locking devices (such as
magnetic locks) to the output.
Connect the locking device to the OUT and COM when using voltage free / external
PSU (Jumperhead on OUT - Ext.V) for the locking device.
Connect the locking device to the OUT and Return when using internal Panel’s
power source (Jumperhead on OUT – 12V) for the locking device.
3. Remove the jumper head from the FACP jumper when FACP IN-GND is
connected.
When the FACP IN and GND are connected to the Fire panel's output, then the
jumper head has to be removed from the FACP jumper to unbypass the FACP IN-
GND input.
When the R/POL+ - R/POL- are connected to the Fire panel's output (using
reversed polarity technology) then the jumper head have to be left on.
Note: The amber FACP LED (in use) will not turn on automatically when the FACP jumper
has been removed.
