MPA2C3 Installation Guide 127
EU Mains

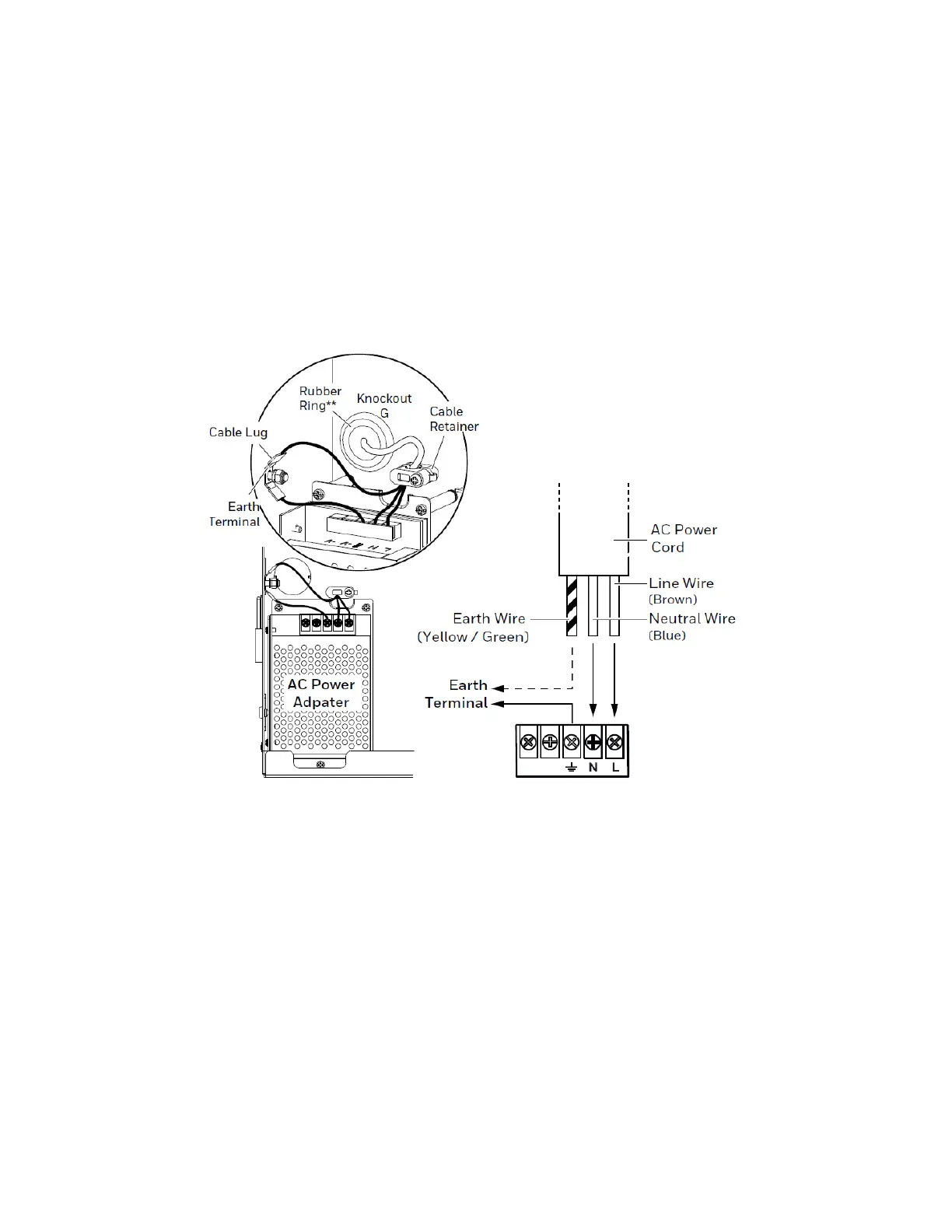

For the MPA2MPSE, MPA4MPSE kits and MPA2ENCME enclosure (without IEC
mains socket), to wire the AC power supply to the enclosure's power supply unit,
proceed as follows:
1. Attach the rubber ring to Knockout G to protect the AC power cord. The knock-
out G is only for AC power cord.
2. Wire the AC power cord to the AC power adapter.
3. Crimp the cable lug to the incoming earth wire and then connect it to the earth
terminal.
