36 MPA2C3 Installation Guide
Installing Battery Terminals
The battery recommended for the MPA2C3 is 12V / 7Ah or 12V / 12Ah. For some
batteries, 2 battery terminals need to be installed for wiring. These 2 battery termi-
nals are included in the packing list.
1. Remove the screws that attaching on the electrodes (+, -).
2. Attach the battery terminal onto the electrode and secure it. (Two battery
terminals are included in the standard metal enclosure package.)

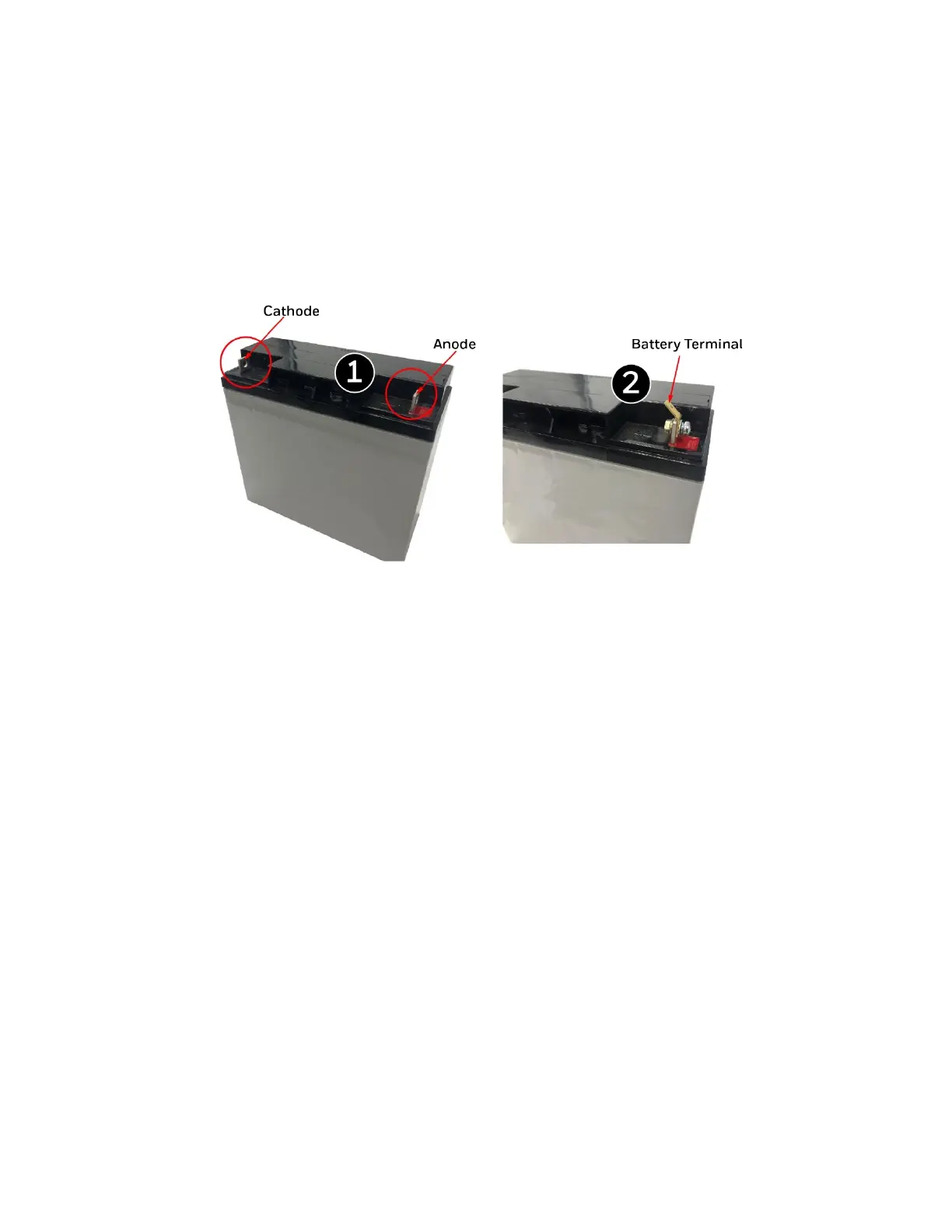

Figure 3-8 Installing the Battery Terminals
3. Connect the battery cable to the newly installed battery terminals.
4. The Battery included in package is UL compliant.
5. If the users want to purchase Battery by themselves, please contact Honeywell
Technical Support first, to confirm the requirement or limitation of Battery.
6. Incorrect Battery may cause the system damaged.
