54 MPA2C3 Installation Guide

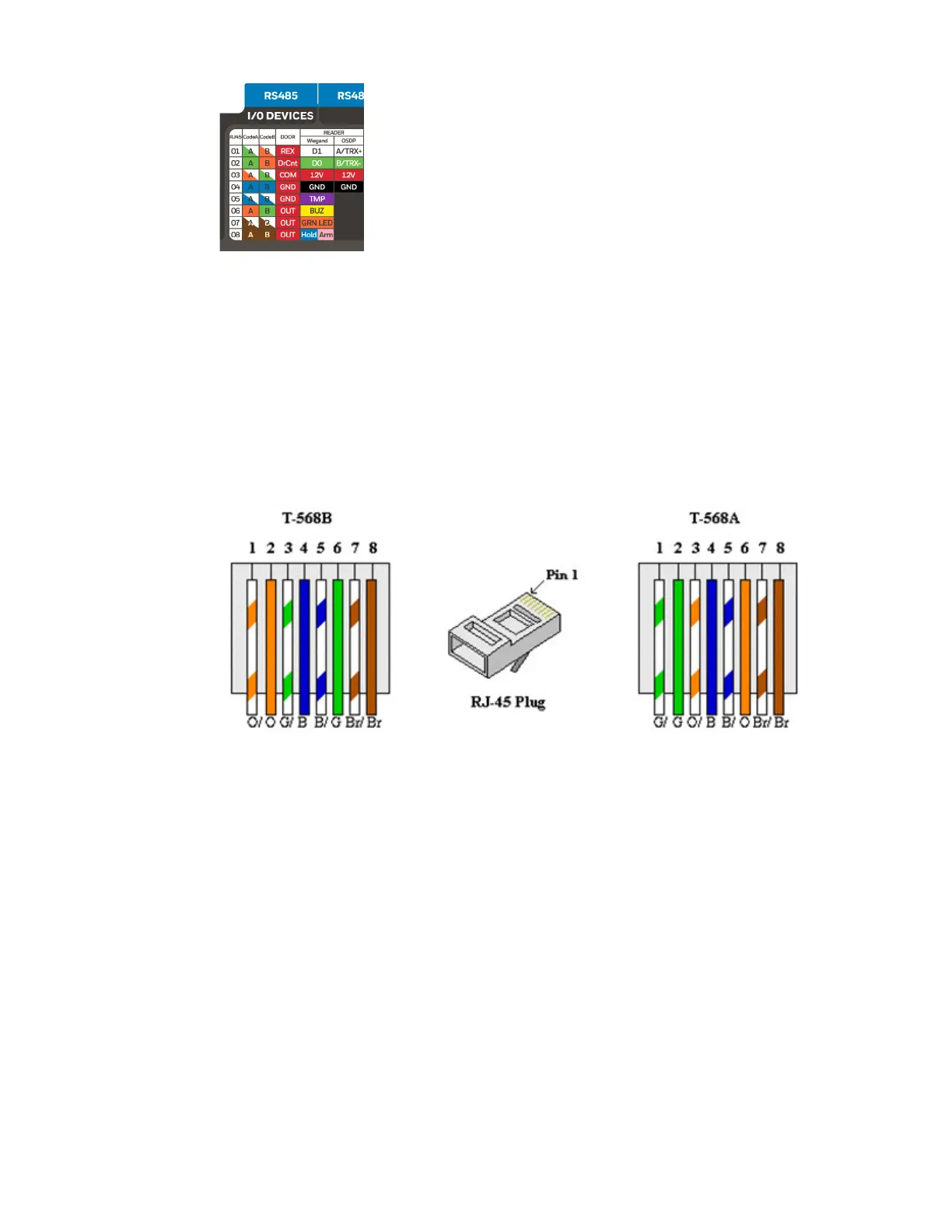

1. * The wire colors of our recommended readers is implemented in the table:
OmniSmart, OmniClass,
OmniProx, HID SIGNO and iCLASS and luminAXS.
Note: The reader wire colors can be different for various readers. Please see the reader’s
manual
2. ** See previous chapter for voltage range and maximum currents.
MPA2C3 has a fixed baud rate for both OSDP busses at 9600 bits per second (bps)
Similarly the OSDP reader Baud Rate. must be set to 9600 bps
OSDP Bus transmission speed (baud Rate)
MPA2C3 has a fixed baud rate for both OSDP busses at 9600 bits per second (bps)
Similarly the OSDP reader Baud Rate. must be set to 9600 bps
CODE ACODE B
