MPA2C3 Installation Guide 89

The below figure shows The connection and relevant jumper setting when internal

power is used to the outputs in a 4-door panel.

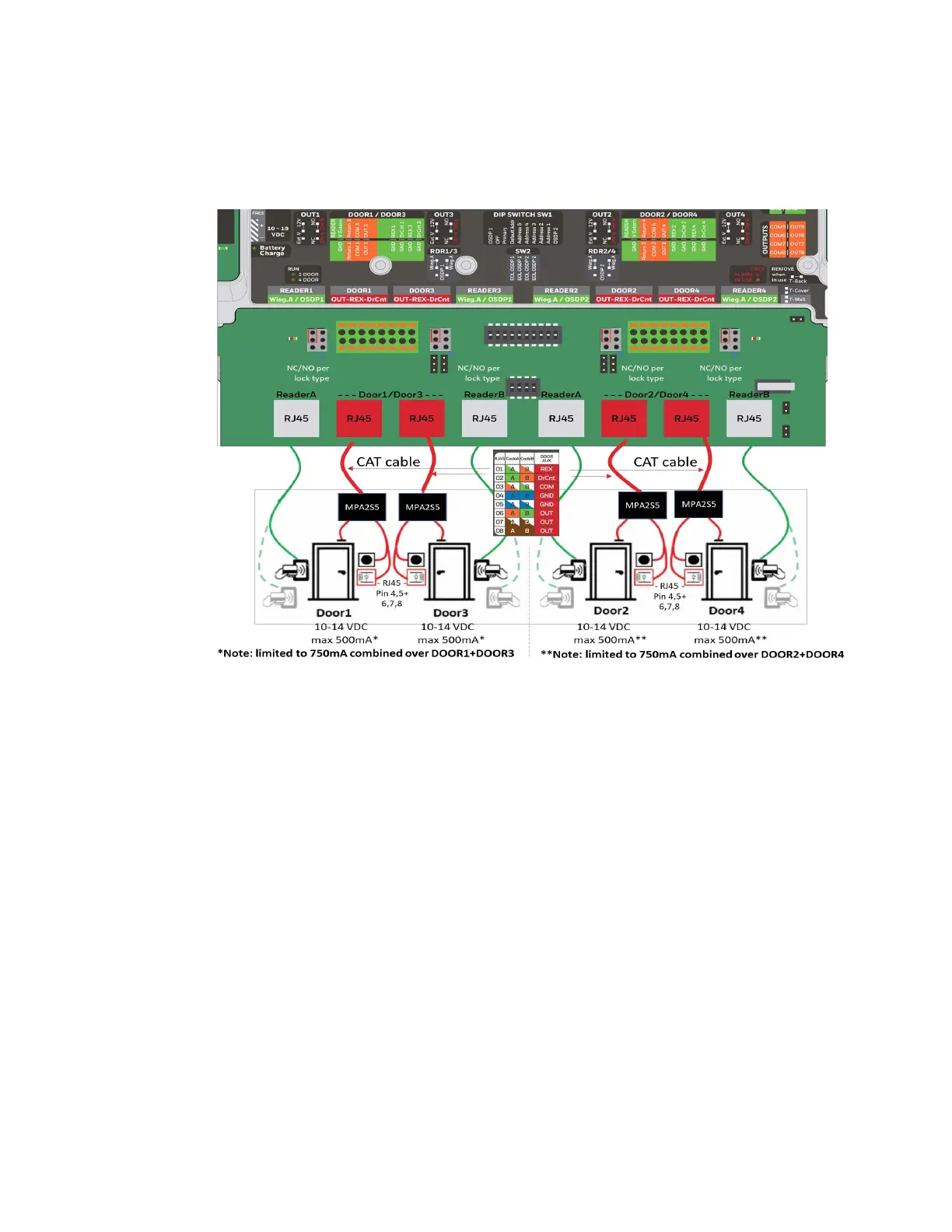

Figure 3-25 The connection and relevant jumper setting when internal power is used to

the outputs in a 4-door panel
