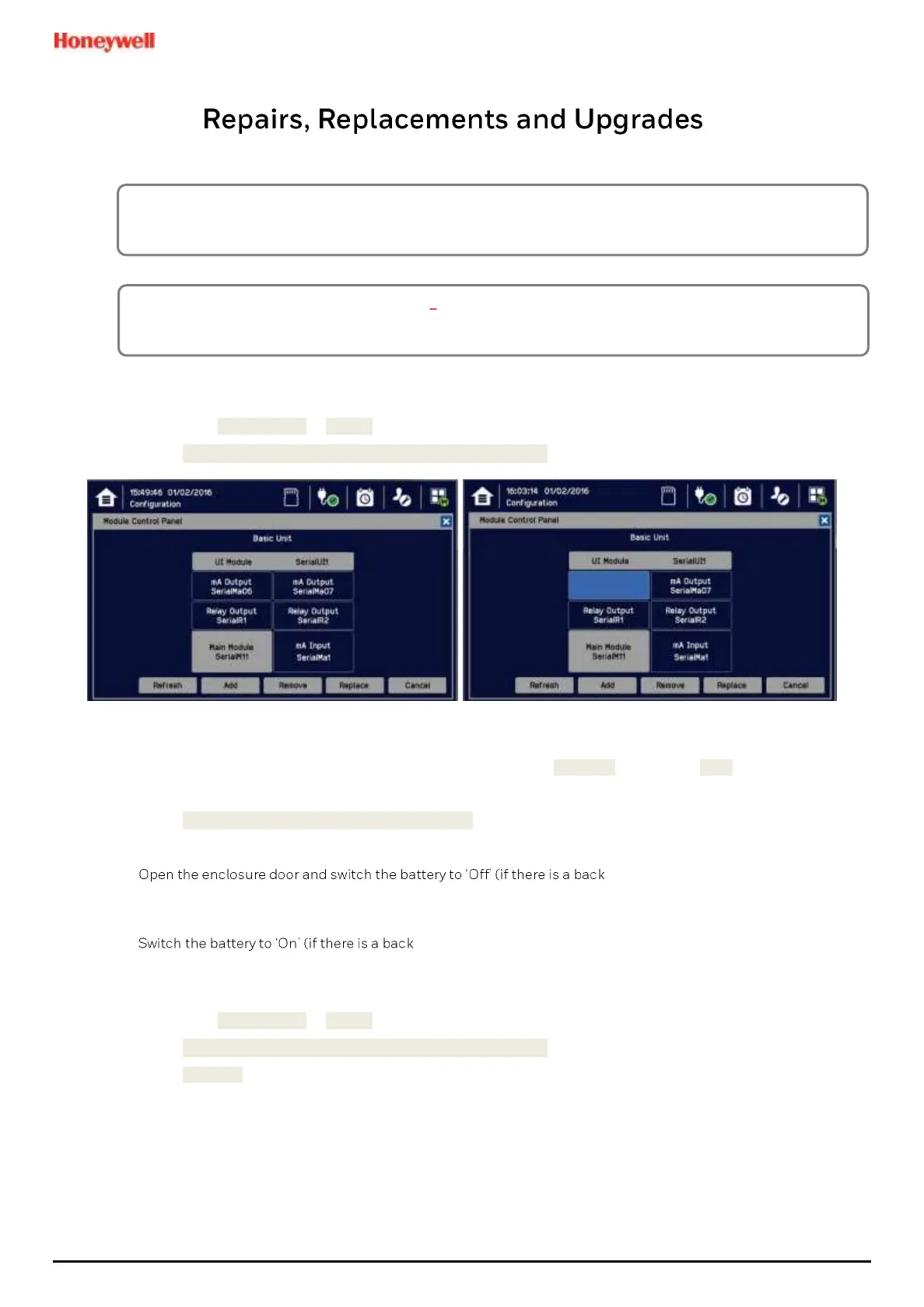

Repairs, Replacements and Upgrades
MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 112 Technical Handbook
Chapter 9.
9.1 How to Decommission and Remove a Serviceable I/O Module
9.1.1 To Remove a Serviceable Module
1) Login as an Administrator or Service.
2) Touch Menu>Configuration>Module Control panel.
3) Touch the I/O module block that you want to remove, and touch [Remove] and confirm [Yes].
4) Wait for the block to turn light blue. Remove any other modules the same way.
5) Touch Menu>Maintenance> Power-off>Yes.
6) Isolate the power supplies.
7) -up battery installed).
8) Electrically disconnect the module(s), and then remove them (see Ch.10.2 How to replace a Faulty Module if you
want to replace it with another module).
9) -up battery installed).
10) Close and secure the enclosure door.
11) Switch on the Touchpoint Plus and wait for the system to stabilise.
12) Login as an Administrator or Service.
13) Touch Menu>Configuration>Module Control panel.
14) Touch [Refresh] to confirm the modules were removed correctly.
15) Log out.
CAUTION
Failing to follow this procedure correctly could render the removed module unusable and unrepairable.
ANTI STATIC PRECAUTIONS
Antistatic Precautions are required to prevent damage to electronic components.
