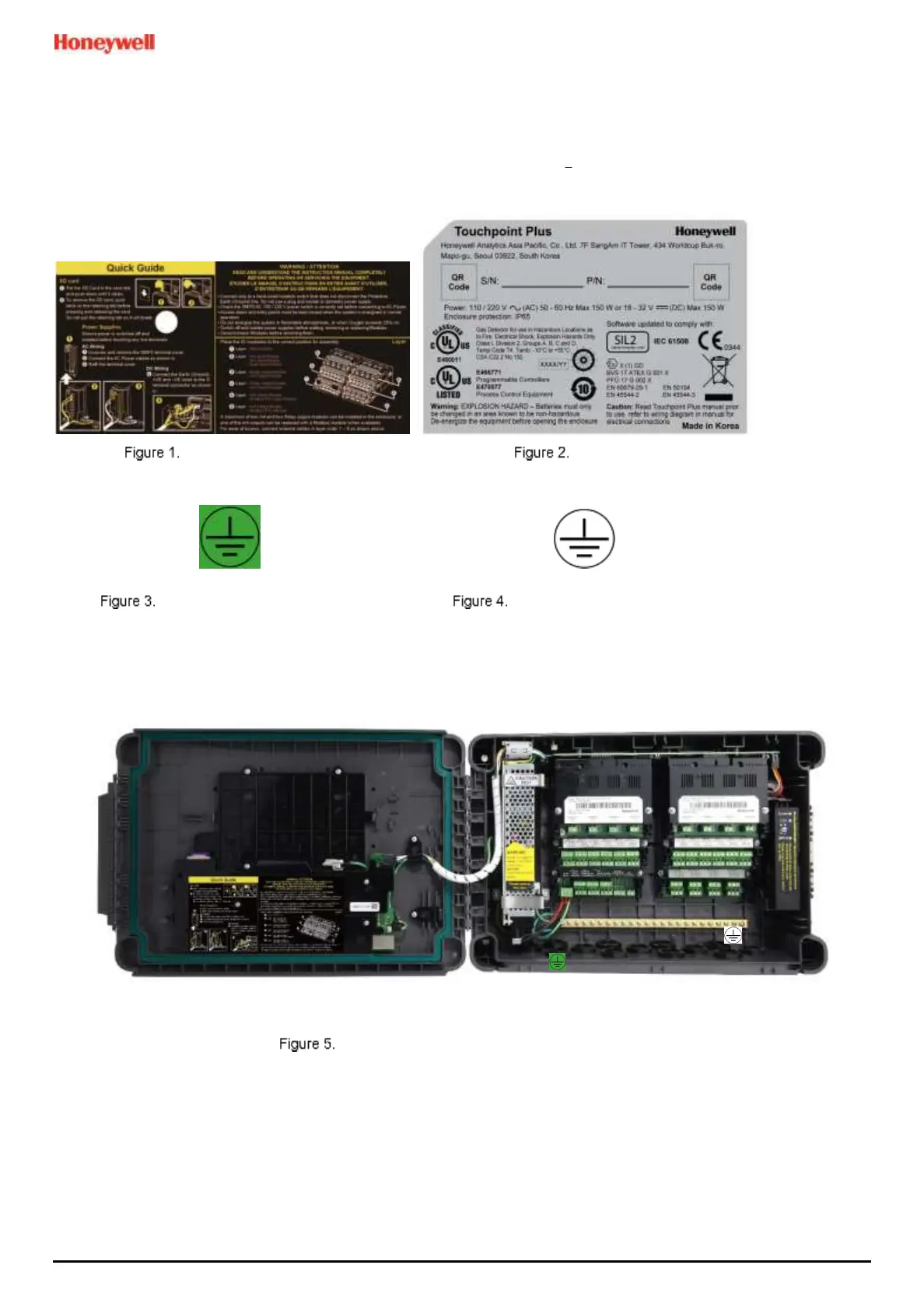

2.2 Location and Description of Warning Labels
2.2.1 Safety Warning Labels
In accordance with the requirements of European Standard EN 60825 1, appropriate warning labels are mounted in
specified locations on the equipment. This is to indicate conditions under which the user could be subjected to
electrical hazards.
Quick Start Guide Label
(Not to Scale)
Rating Label
(External – Not Shown Below)
Protective Earth (Ground) Point
Equipment Earth (Ground) Point
This Protective Earth (Ground) location point label
is used inside the system and is not normally visible
to the operator.
This Equipment Earth (Ground) location point label
is used inside the system and is not normally visible
to the operator.
Internal Label Positions

Honeywell Touchpoint Plus Specifications

General

Mounting	Panel
Communication	Ethernet
Communication Ports	1 x Ethernet, 2 x USB
Power Supply	24 VDC
Enclosure Rating	IP65 (front)
