MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 22 Technical Handbook

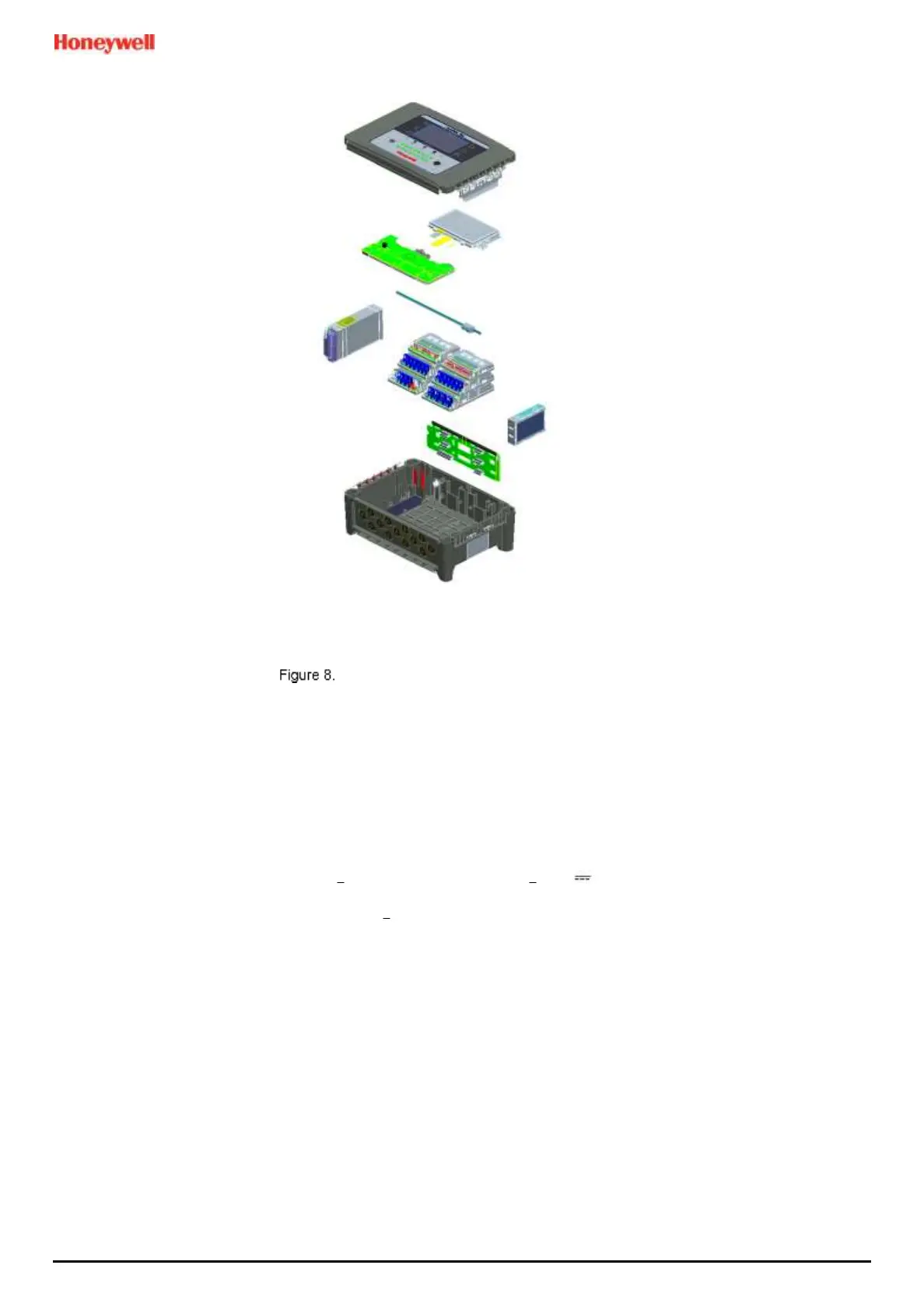

TPPL Controller Exploded View
Both the Touchpoint Plus and its optional expansion unit have the option for AC, DC and battery backup power
supplies, but the optional Expansion Unit has no motherboard or display (LCD).
Features of the Controller unit:
• colour LCD Touch Screen with multi-language user interface and menus
• password protection
• flexible Mains Power Input: 50 60 Hz 110/220 V ~ (AC), 18 32 V (DC), Max 107 W for a single unit or 210W
for combined Base and Expansion Units
• up to 8 channels of Analogue Input (0 22 mA loop input or Bridge mV for Cat bead or Dual input )
• 2 or 3-wire signal inputs
• up to 24 channels of user configurable relay controlled Output
• up to 8 channels of configurable mA Output
• alarm update on Acknowledge
• automatic Self-Diagnostic Event Log with error codes
• event recording
• SD Card
