MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 29 Technical Handbook

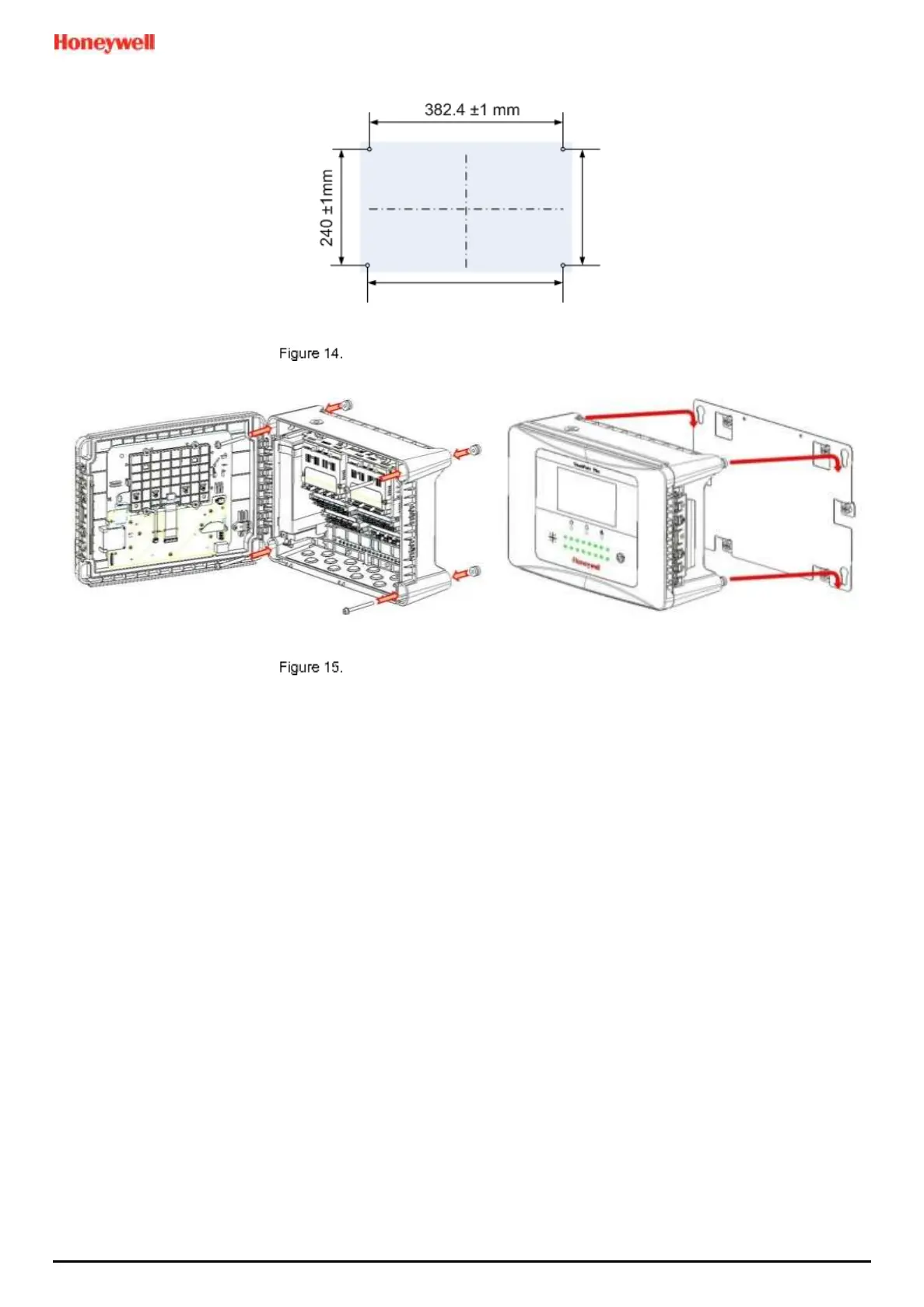

Wall Mounting Template
Wall and Plate Mounting Points
You can use the wall mounting plate as its own template and location guide, and you should ensure that the
mounting bolts are adjusted to fit the plate bayonet holes before fixing the plate to the wall. The mounting nuts
should be torqued to 1.18 - 1.76 Nm (10.42 - 15.62 lb-in).
