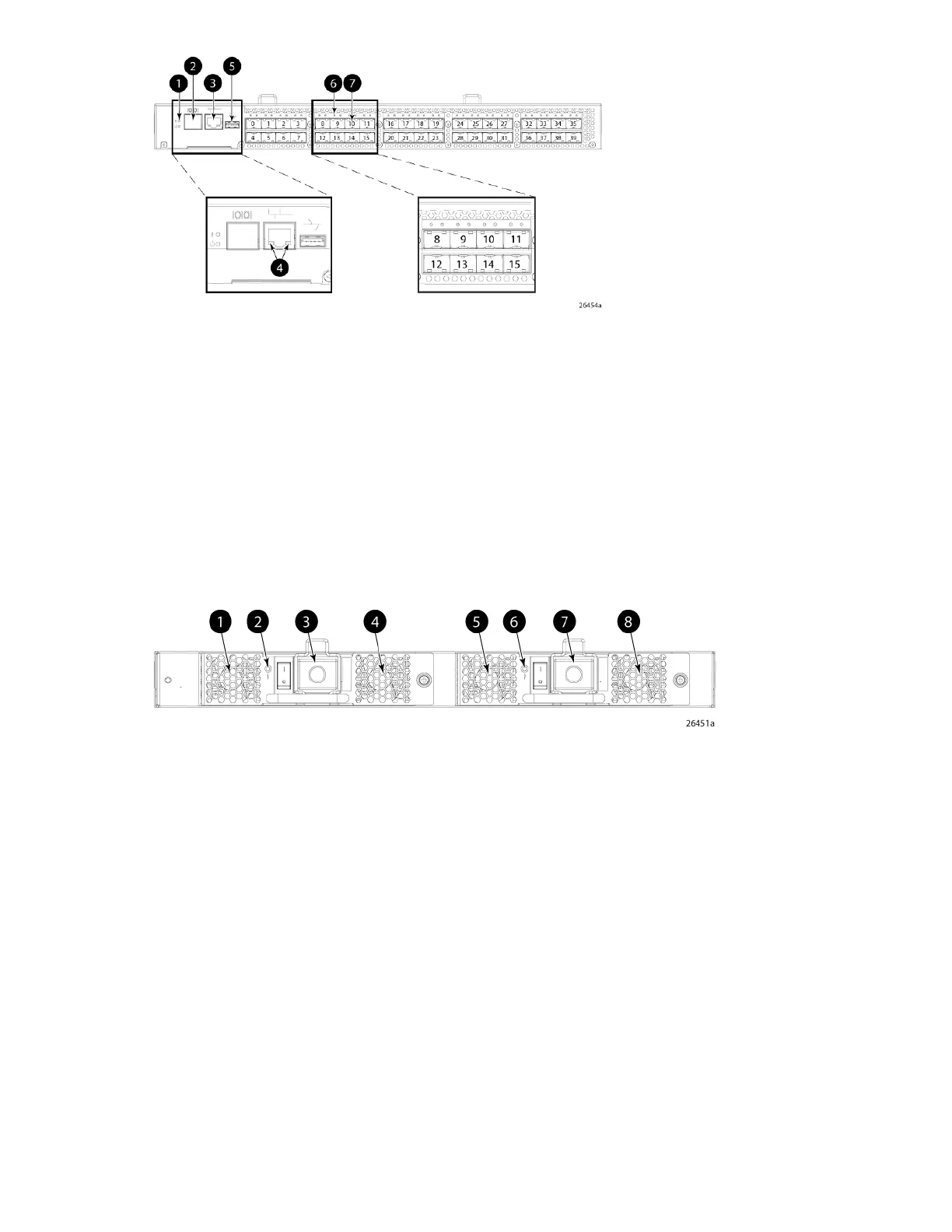

5. USB port1. System status (top) and power (bottom) LEDs
6. Fibre Channel port status LED2. System RS-232 console port (RJ-45)
7. Fibre Channel port3. System Ethernet port
4. Ethernet port LEDs (green/amber)
Figure 2 Port side view—8/40 SAN Switch
.
Nonport side of the 8/40 SAN Switch
The nonport side includes the two redundant power supply fan assemblies and the corresponding
status LEDs. Figure 3 shows the nonport side of the 8/40 SAN Switch.
5. Fan (for power supply/fan FRU1)1. Fan (for power supply/fan FRU2)
6. Power supply/fan status LED (for power supply/fan
FRU 1)
2. Power supply/fan status LED (for power supply/fan
FRU2)
7. Power supply connector (for power supply/fan FRU
1)
3. Power supply connector (for power supply/fan
FRU2)
8. Fan (for power supply/fan FRU1)4. Fan (for power supply/fan FRU2)
Figure 3 Nonport side view—8/40 SAN Switch
.
Activating additional 8/40 SAN Switch ports
By default, the 8/40 SAN Switch model integrates 24 licensed ports (ports 0 through 23). To enable
additional ports, you must purchase and install the HP Storage Works 8/40 SAN Switch 8-Gb 8-port
Upgrade LTU (part number T5519A):
8-Gb SAN Switch Hardware Reference Guide 15
