4. Verify correct operation of the switch in the fabric by entering the fabricshow command from
the workstation.
This command provides general information about the fabric.
8-Gb SAN Switch LEDs
System activity and status can be determined through the activity of the LEDs on the switch. The LED
states are as follows:
• No light
• Steady light
• Flashing light
The LEDs are either green or amber.
8/8 and 8/24 SAN Switch LEDs
8/8 and 8/24 SAN Switch LEDs are located on the port side only.
4. Link speed LED1. System power LED (green)
5. Port status LED (port 3)2. System status LED (green/amber)
6. Port status LED (port 7)3. Link status LED

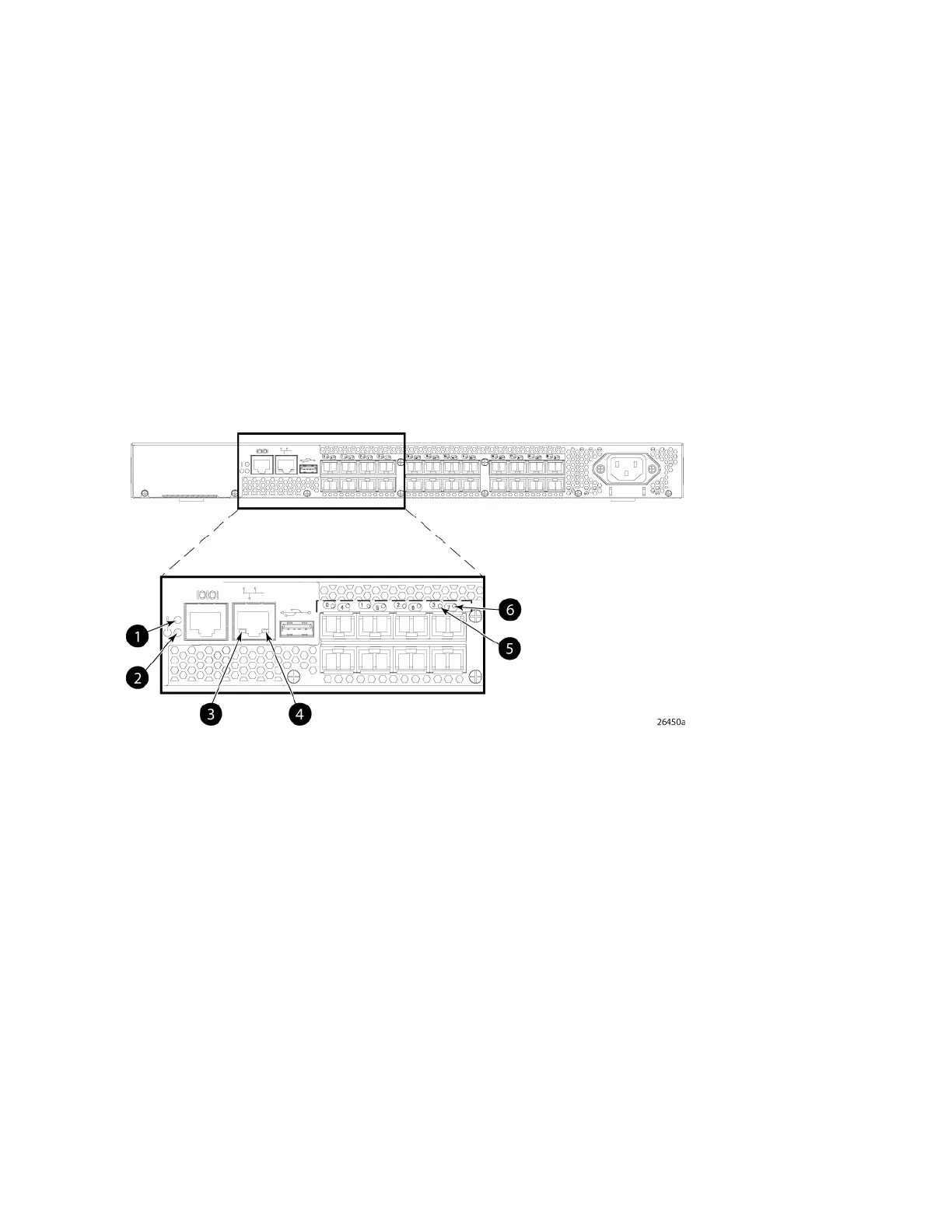

Figure 26 Identifying 8/8 and 8/24 SAN Switch LEDs
.
Managing the 8-Gb SAN Switches58
