HP 1606 - Nonport Side of the 8;80 SAN Switch and the Encryption SAN Switch; Port Side View 8;80 SAN Switch

9. FC ports 16–231. 8/80 SAN Switch
10. FC ports 24–312. Switch ID pull-out tab
11. FC ports 32–383. Status LED (top) power LED (bottom)
12. FC ports 40–474. Console port
13. FC ports 48–555. Ethernet port
14. FC ports 56–636. USB port
15. FC ports 64–717. FC ports 0–7
16. FC ports 72–798. FC ports 8–15

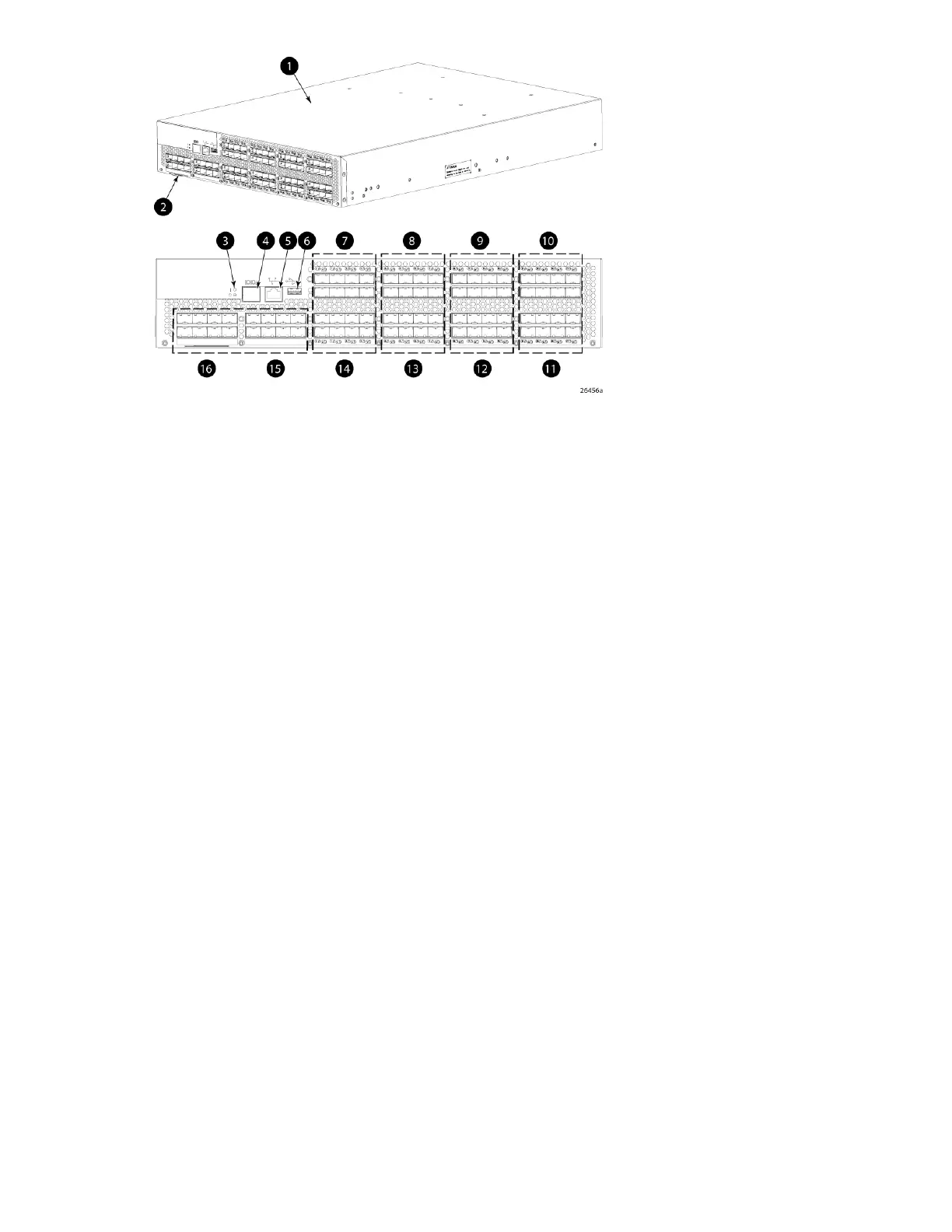

Figure 4 Port side view—8/80 SAN Switch
.
Nonport side of the 8/80 SAN Switch and the Encryption SAN Switch
Figure 5 shows the nonport side of the 8/80 SAN Switch and the Encryption SAN Switch, which
contains the power supplies (including the AC power receptacle and AC power switch) and fans.
8-Gb SAN Switch Hardware Reference Guide 17
