3. Attach the rear mounting brackets to the rear rack uprights.
• For an HP 10000 Series Rack, assemble each of the brackets using two #10-32 x 1/2-inch
Phillips panhead screws with captive star lock washers and two #10 adapter washers, as
shown in Figure 14.
• For an HP System/e Rack, install the two rear mounting brackets using two #10-32 x 1/2-
inch Phillips panhead screws and two #10 alignment washers, as shown in Figure 15.

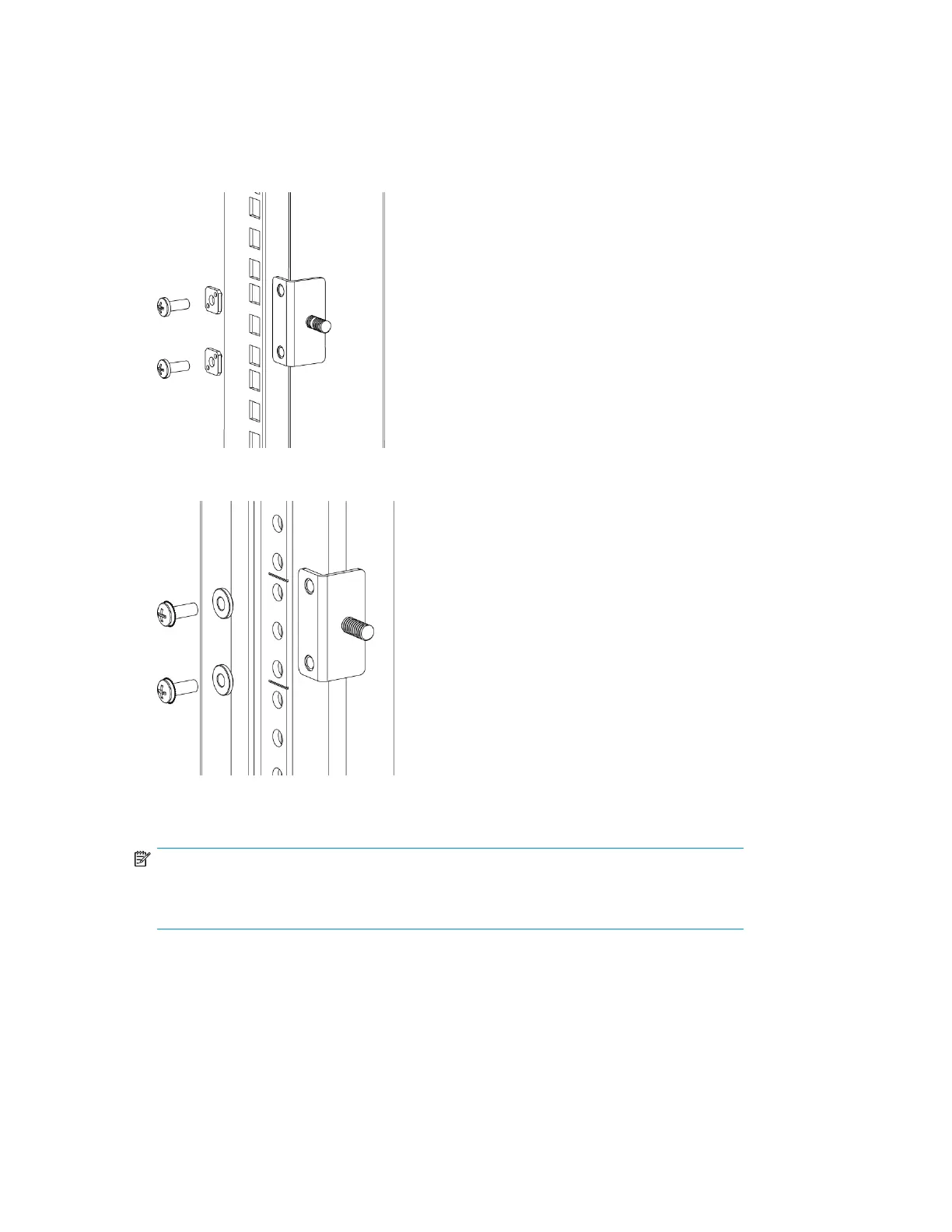

Figure 14 Installing the rear mounting brackets (HP 10000 Series rack)
.
Figure 15 Installing the rear mounting brackets (HP System/e rack)
.
NOTE:
The SAN Switch Rack Mount Kit contains rails labeled Left and Right to designate the left
side and right side of the cabinet.
Installing and configuring an 8-Gb SAN Switch38
