8/80 SAN Switch LEDs
8/80 SAN Switch LEDs are located on the port side and nonport side. See Figure 29 and Figure 30.
8. FC ports (0 through 7)1. 8/80 SAN Switch
9. FC ports (48 through 55)2. System status LED
10. FC port status LED (port 52)3. Ethernet port
11. FC port status LED (port 48)4. Ethernet speed LED
12. Console port5. Ethernet link LED
13. System power LED6. FC port status LED (port 0)
7. FC port status LED (port 4)

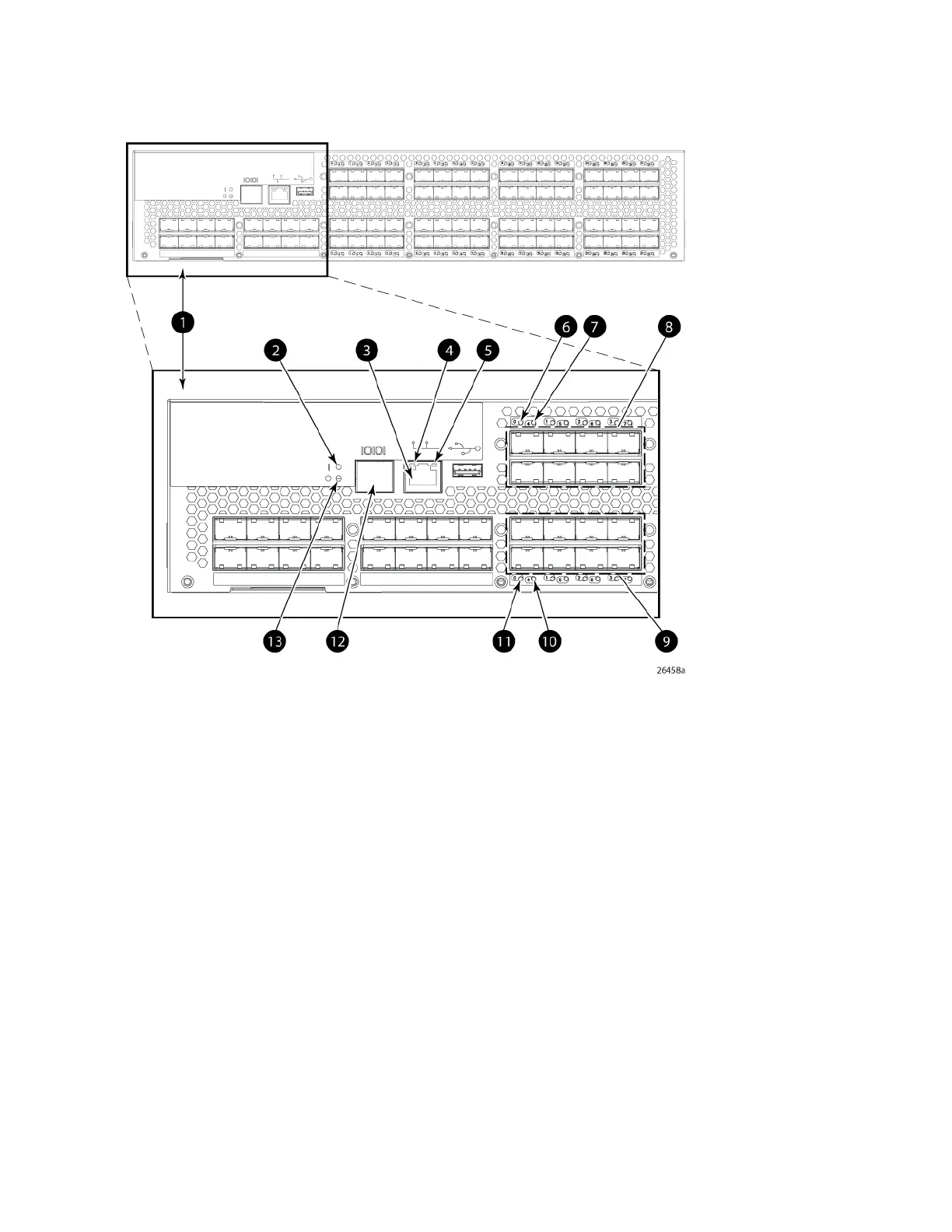

Figure 29 Identifying 8/80 SAN Switch port side LEDs
.
Managing the 8-Gb SAN Switches60
