HP 1606 - Port Side of the 1606 Extension SAN Switch; Port Side of the HP 1606 Extension SAN Switch; Port Numbering on the 1606 Extension SAN Switch

• IR
• Extended Fabric
• Adaptive Networking
• Server Application Optimization
• ISL Trunking
• Fabric Watch
• Advanced Performance Monitor
• FICON CUP
• FICON Accelerator
For information on these features, see the Fabric OS Administrator’s Guide.
Port side of the 1606 Extension SAN Switch

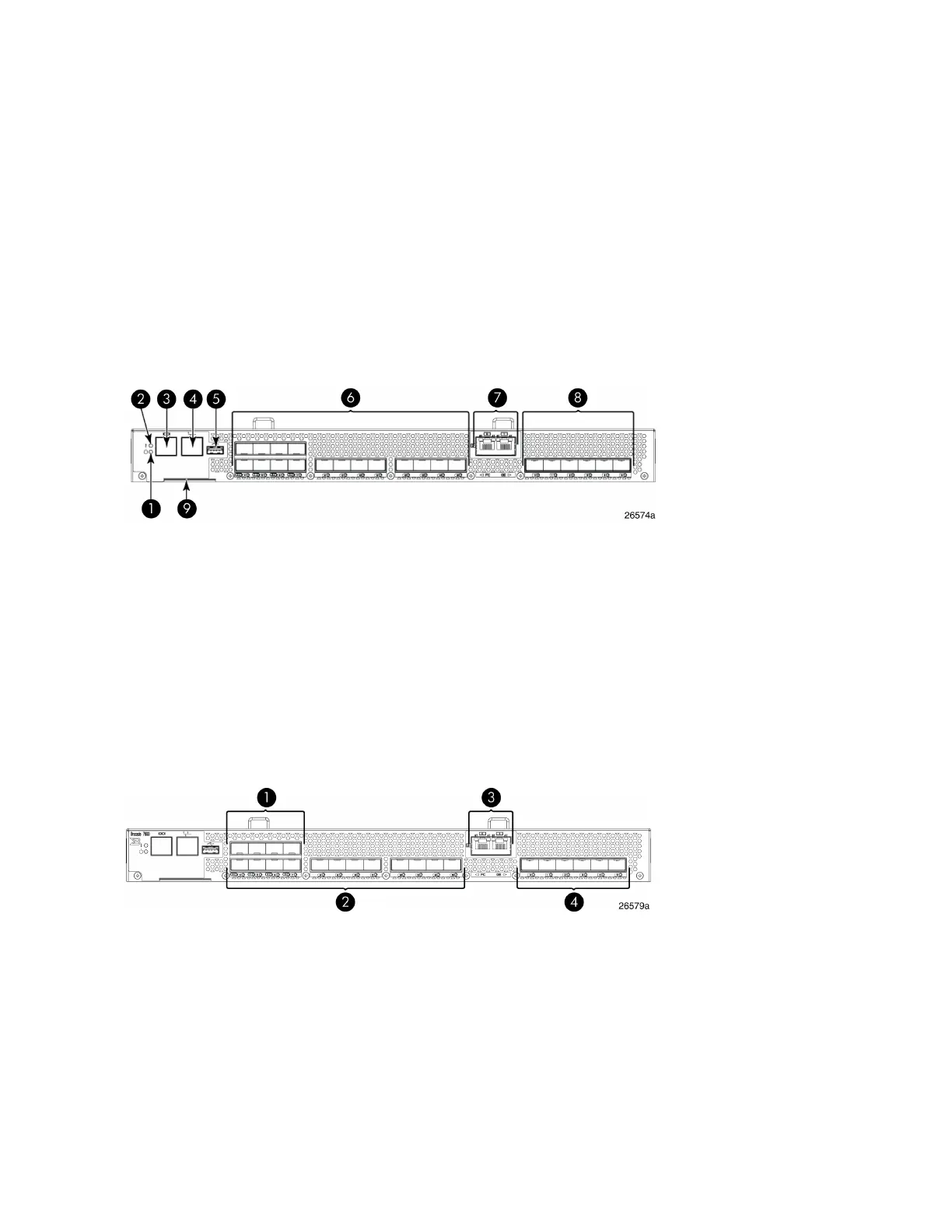

Figure 9 shows the components on the port side of the 1606 Extension SAN Switch.
6. Fibre Channel ports (16)1. System power LED
7. GbE ports: copper RJ45(2)2. System status LED
8. GbE ports: optical SFP (6)3. Console port (RJ45)
9. Serial number pull-out tab4. Ethernet management port
5. USB port
Figure 9 Port side of the HP 1606 Extension SAN Switch
.
The Fibre Channel ports are numbered from left to right on the faceplate, as shown in Figure 10.
3. GbE ports: ge0-ge1 (copper only)1. Fibre Channel ports 0–3
4. GbE ports: ge0–ge5 (SFP)2. Fibre Channel ports 4–15
Figure 10 Port numbering on the 1606 Extension SAN Switch
.
A fully licensed 1606 Extension SAN Switch can have two trunking groups. Group 1 consists of Fibre
Channel ports 0–7, and group 2 consists of Fibre Channel ports 8–15.
HP StorageWorks 8-Gb SAN Switches24
