4. Assemble the outer rails.
a. Attach the left outer rail and the right outer rail to the rear mounting brackets using two
1/4-20 hex nuts with captive star lock washers attached loosely, as shown in Figure 16.
Do not tighten the nuts.

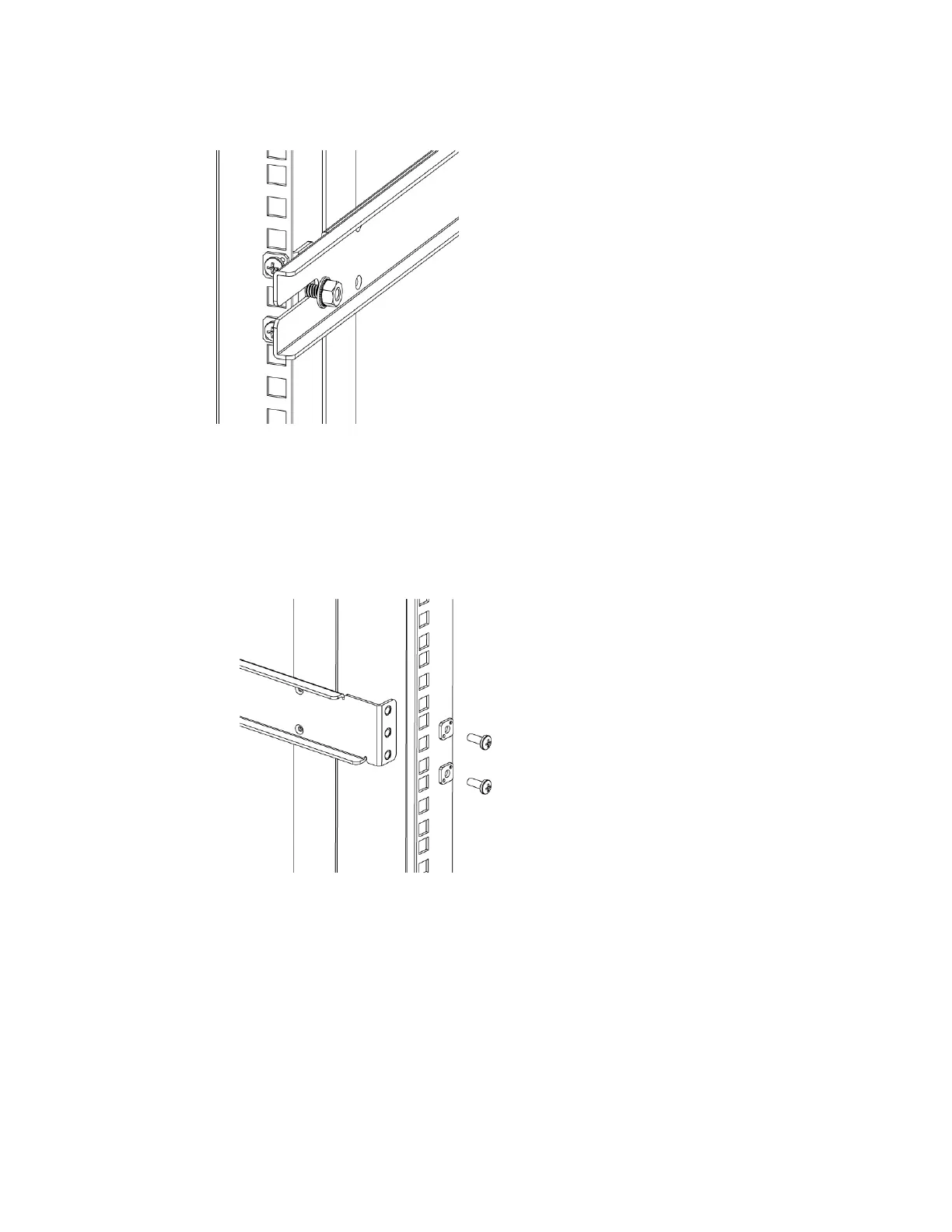

Figure 16 Installing the outer rails (HP 10000 Series rack)
.
b. Depending on the rack you are using, complete one of the following tasks:
• For an HP 10000 Series Rack, install two #10-32 x 1/2-inch Phillips panhead screws
with captive star lock washers and two #10 adapter washers in the upper and lower
holes on the right rail. Then, install two #10-32 x 1/2-inch Phillips panhead screws with
captive star lock washers and two #10 adapter washers in the upper and lower holes
on the left rail. (See Figure 17.)
Figure 17 Assembling the outer rails (HP 10000 Series rack)
.
8-Gb SAN Switch Hardware Reference Guide 39
