Port side of the FCoE Converged Network Switch

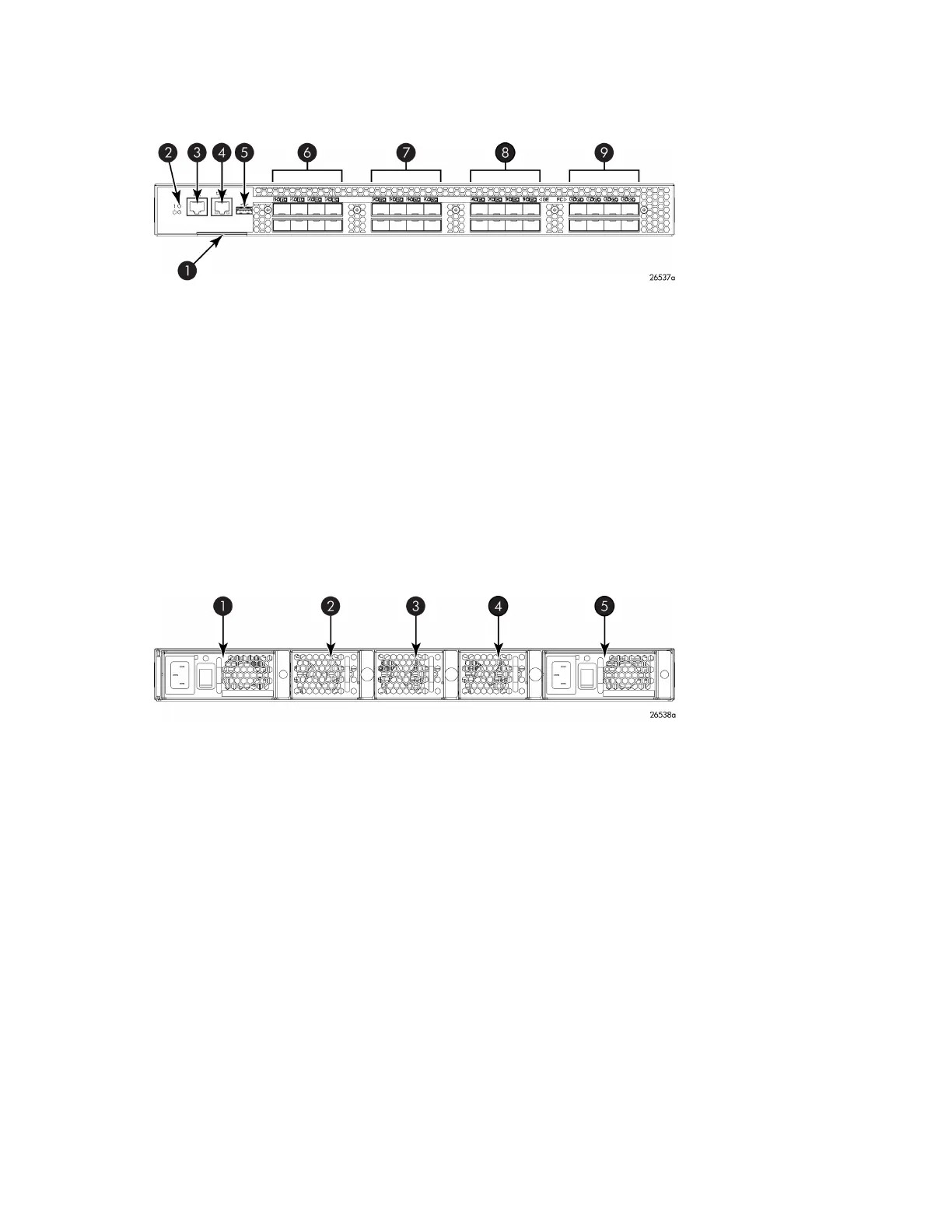

Figure 7 shows the port side of the FCoE Converged Network Switch.
6. 10-GbE ports 0–71. Switch ID pull-out tab
7. 10-GbE ports 8–152. System status (top) and power (bottom) LEDs
8. 10-GbE ports 16–233. Serial console port
9. FC ports 0–74. Management Ethernet port
5. USB port
Figure 7 Port side of the FCoE Converged Network Switch
.
Nonport side of the FCoE Converged Network Switch
Figure 8 shows the nonport side of the FCoE Converged Network Switch.
4. Fan assembly #11. Power supply #2
5. Power supply #12. Fan assembly #3
3. Fan assembly #2
Figure 8 Nonport side of the FCoE Converged Network Switch
.
1606 Extension SAN Switch features
A fully licensed 1606 Extension SAN Switch has the following features:
• FCIP capability
• Includes up to eight FCIP tunnels.
• Each FCIP tunnel is represented and managed as a VE_Port.
• Fibre Channel Routing Services can be used over the FCIP link.
8-Gb SAN Switch Hardware Reference Guide 21
