NOTE:
The LEDs may be solid amber or may flash during boot, POST, or other diagnostic tests. This is normal;
it does not indicate a problem unless the LEDs do not indicate a healthy state after all boot processes
and diagnostic tests are complete.
9. Port 0 status LED1. System status LED
10. Port 4 status LED2. System power LED
11. Port 8 status LED3. Console port
12. GbE copper port4. Ethernet link LED
13. GbE port 0 Fault (FLT) LED5. Ethernet status LED
14. GbE port 0 status/activity LED6. Ethernet port
15. GbE optical port7. IP Address pull-out tab
16. GbE dual-color optical port LED8. USB port

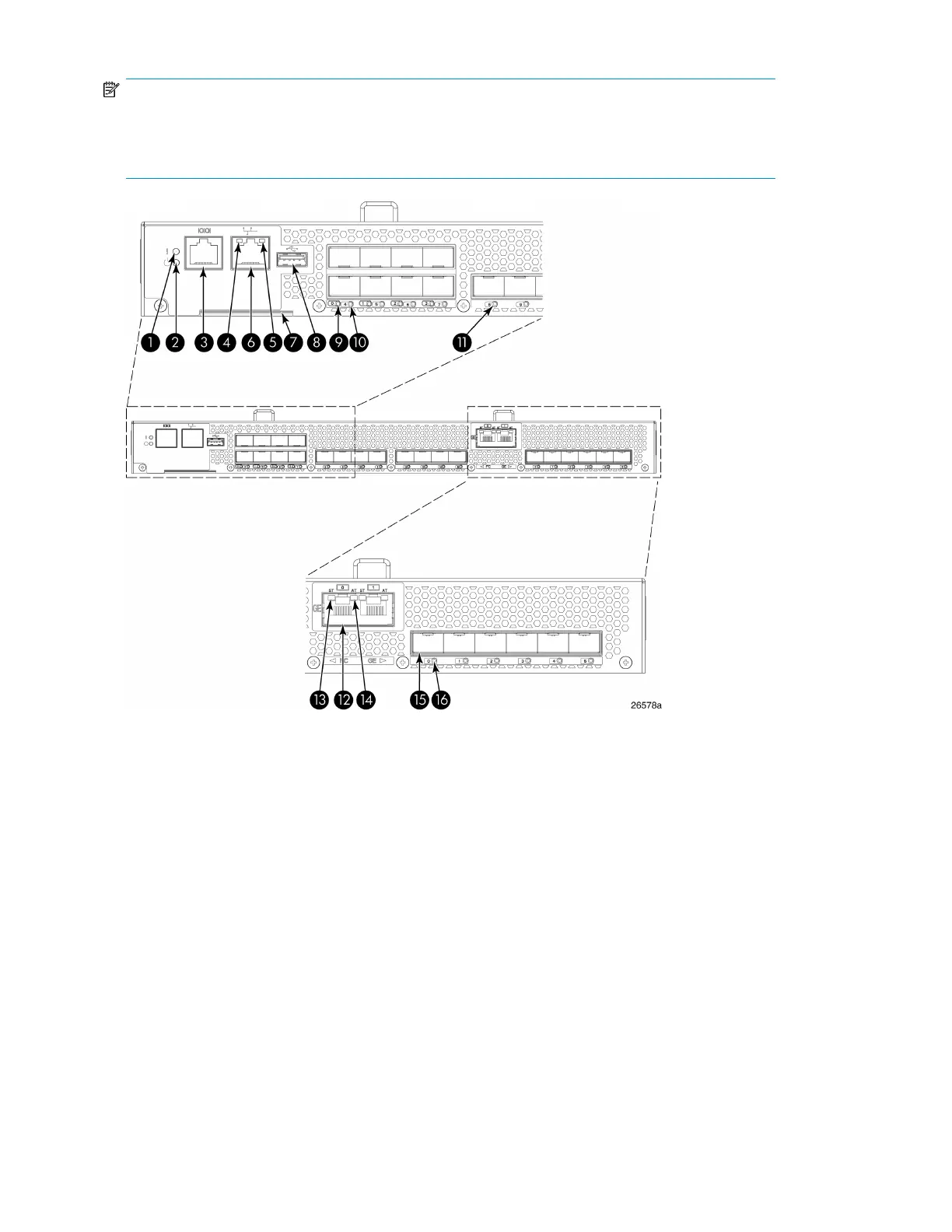

Figure 33 Port side LEDs on the 1606 Extension SAN Switch
.
