Switch Meshing
Switch Meshing Fundamentals
Switch Meshing Fundamentals
Terminology
Switch Mesh Domain. This is a group of meshed switch ports exchanging
meshing protocol packets. Paths between these ports can have multiple
redundant links without creating broadcast storms.

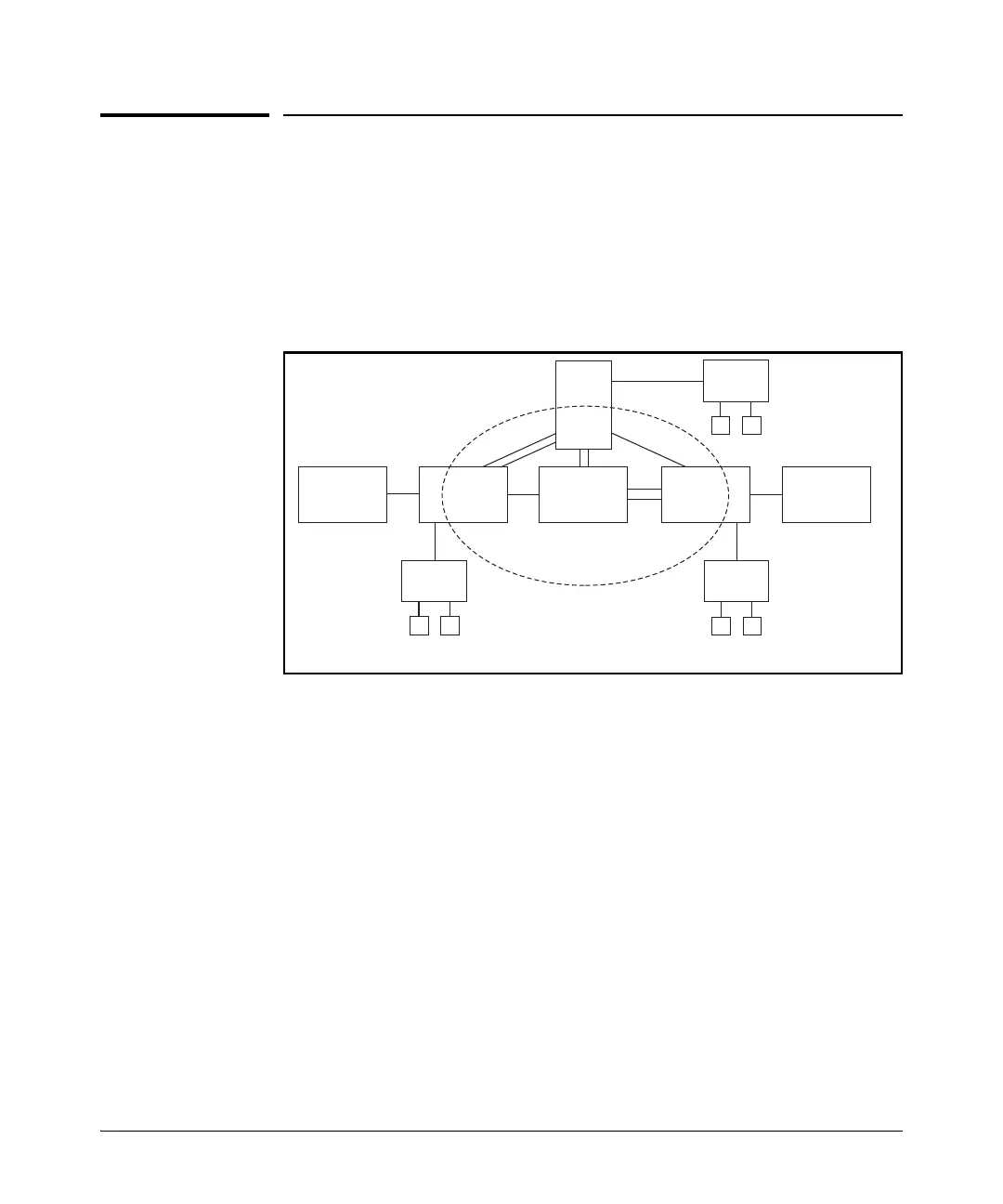

Figure 4-2. Example of a Switch Mesh Domain in a Network
Edge Switch. This is a switch that has some ports in the switch meshing
domain and some ports outside of the domain. (See figure 4-2, above.)
Switch 2
Switch
Non-Mesh
Switch
Non-Mesh
Switch 3 Switch 4
Hub
Hub
Hub
Switch 1
W
W
W
W
W
W
Switch Mesh Domain
Edge Switches: 1, 2, & 4

HP 3500 Series Specifications

General

Model	HP 3500 Series
Layer	Layer 3
MAC Address Table Size	16, 000 entries
Type	Managed
Uplink	SFP
PoE	Optional
Management	Web, CLI, SNMP
Routing Protocol	Static, RIP
Power Supply	Internal
Form Factor	1U rack-mountable
Jumbo Frame Support	Yes
Operating Temperature	32°F to 113°F (0°C to 45°C)
Ports	24 or 48 10/100/1000 ports
