4-8

Switch Meshing

Configuring Switch Meshing

Preparation

Before configuring switch meshing:

■ Review the Operating Rules (page 4-4), and particularly the restrictions

and requirements for using switch meshing in environments that include

static trunks, multiple static VLANs, GVRP, IGMP, and MSTP.

■ To avoid unnecessary system disruption, plan the mesh bring-up to mini-

mize temporary port-blocking. (Refer to “Bringing Up a Switch Mesh

Domain” on page 4-7.)

■ To view the current switch mesh status on the switch, use the CLI show

mesh command (page 4-12).

Menu: To Configure Switch Meshing

1. From the Main Menu, select:

2. Switch Configuration

2. Port/Trunk Settings

2. Press [E] (for Edit) to access the load balancing parameters.

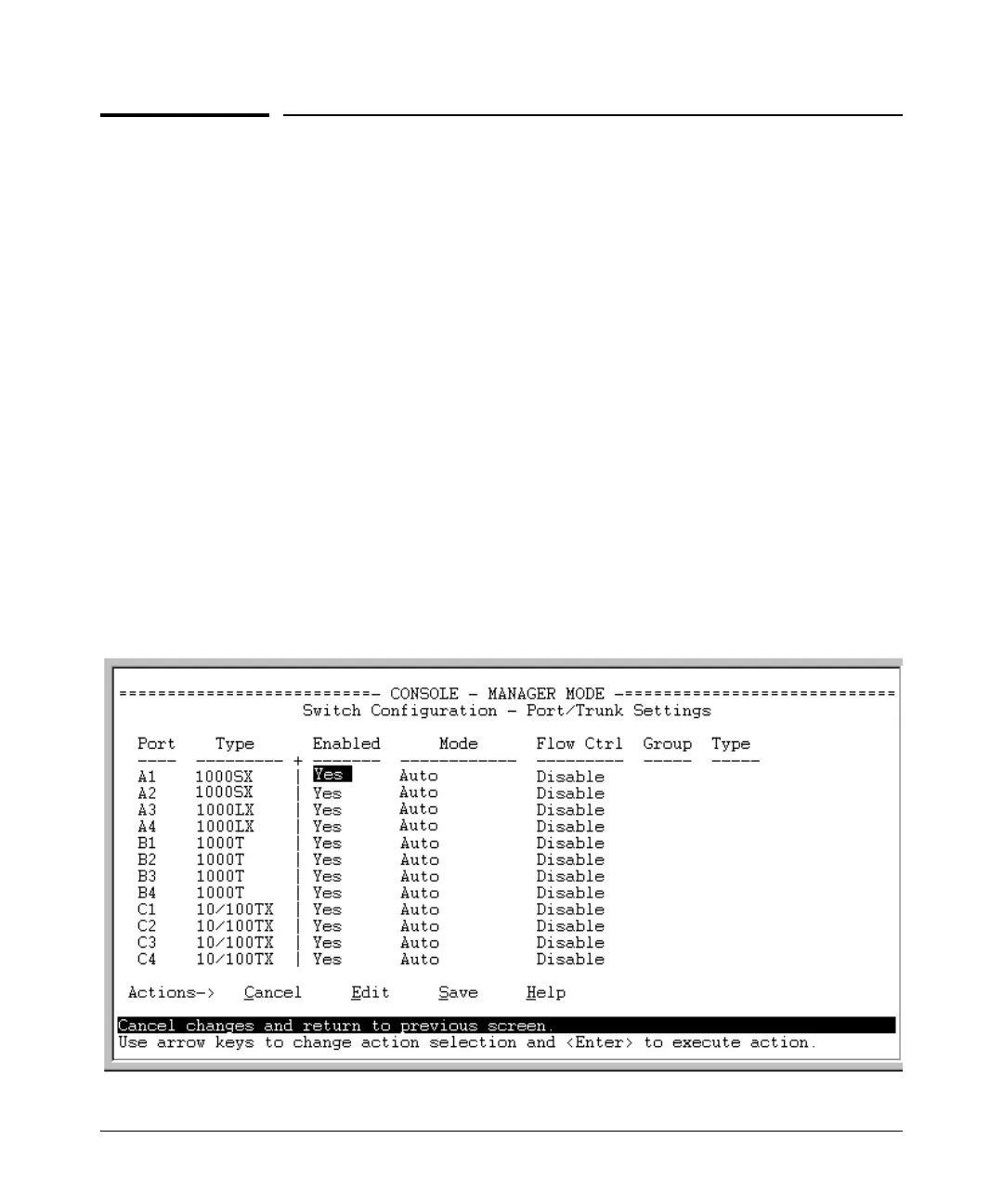

Figure 4-6. Example of the Screen for Configuring Ports for Meshing
