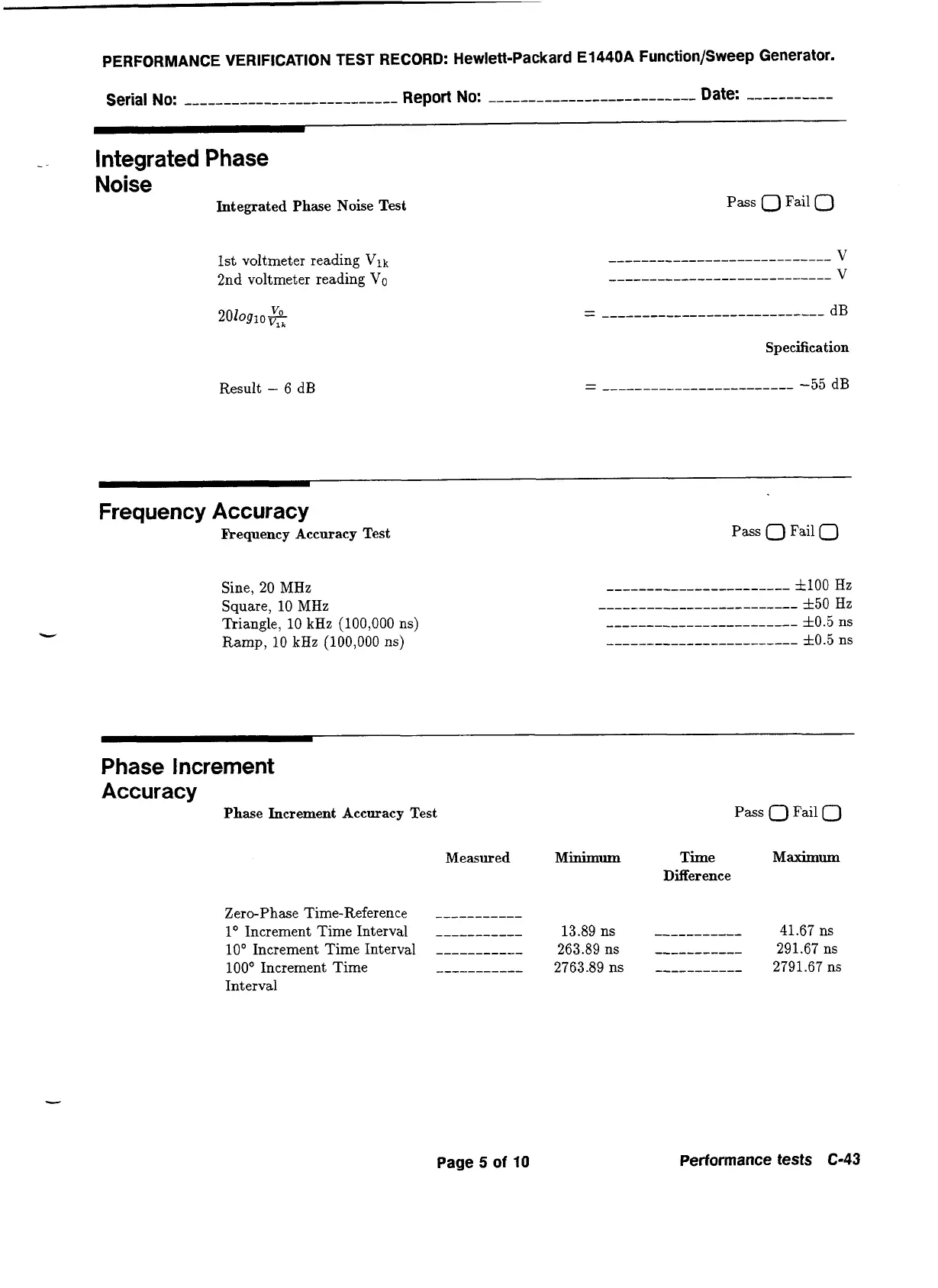

PERFORMANCE VERIFICATION TEST RECORD: Hewlett-Packard E1440A FunctionJSweep Generator.
Integrated Phase
Noise
Integrated Phase Noise Test
1st voltmeter reading Vlk
2nd voltmeter reading Vo
Result - 6 dB
Pass
0 Fail 0
- ............................ dB
Specification
- -
....................... - -55 dB
Frequency Accuracy
Frequency Accuracy Test
Sine, 20 MHz
Square, 10 MHz
Triangle, 10 kHz (100,000 ns)
Ramp, 10
kHz (100,000 ns)
Pass
0 Fail 0
Phase Increment
Accuracy
Phase Increment Accuracy Test
Pass 0 Fail 0
Measured Minimum Time Maximum
Difference
Zero-Phase Time-Reference -----------
lo Increment Time Interval ----------- 13.89 ns ----------- 41.67 ns
10' Increment Time Interval
----------- 263.89 ns ----------- 291.67 ns
100' Increment Time
----------- 2763.89ns ----------- 2791.67ns
Interval
Page 5 of 10
