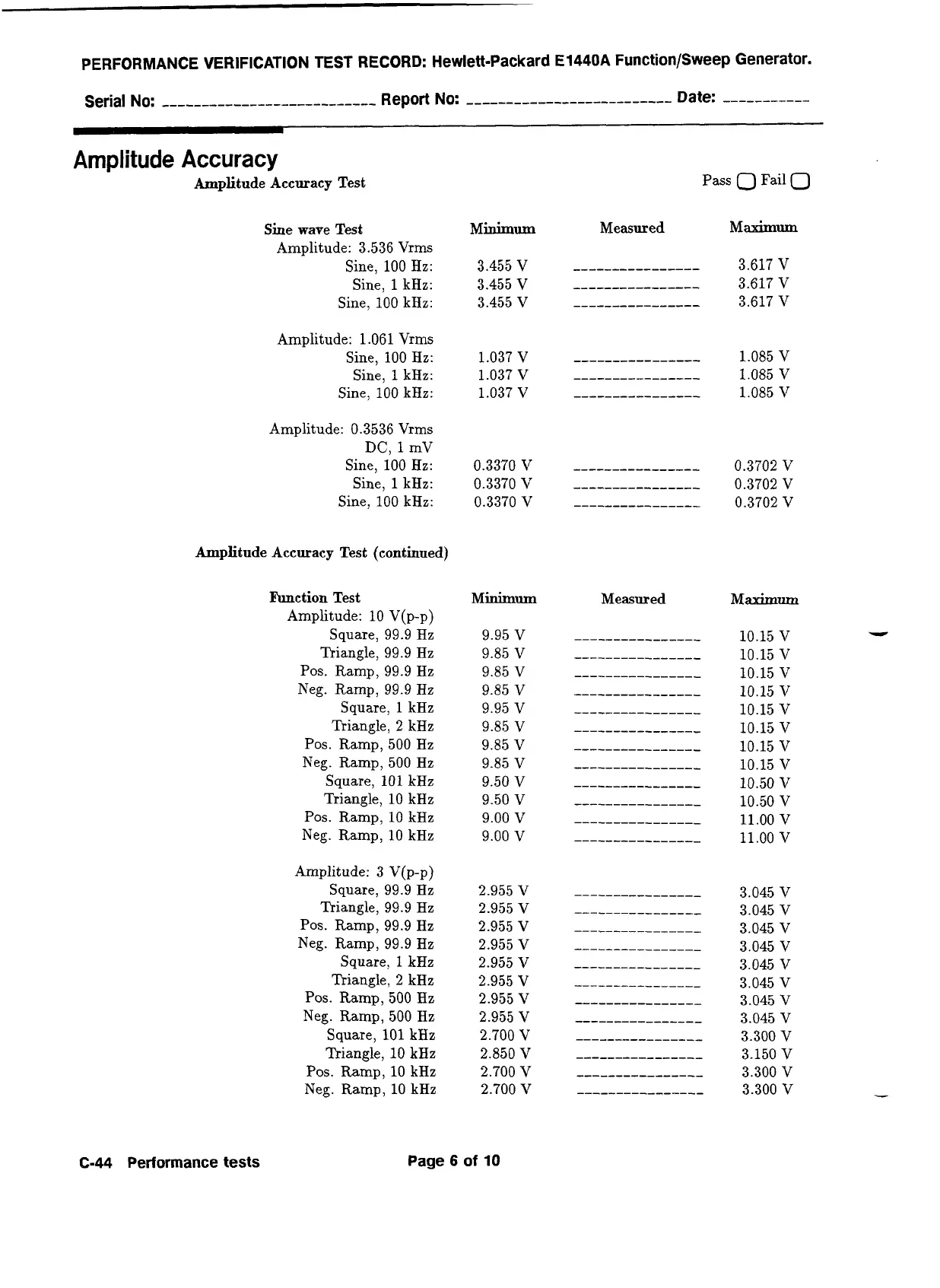

PERFORMANCE VERIFICATION TEST RECORD: Hewlett-Packard E1440A Function/Sweep Generator.
Amplitude Accuracy
Amplitude Accuracy Test
Sine wave Test
Amplitude: 3.536 Vrms
Sine, 100 Hz:
Sine,
1 kHz:
Sine, 100 kHz:
Amplitude: 1.061 Vrms
Sine, 100 Hz:
Sine,
1 kHz:
Sine, 100 kHz:
Amplitude: 0.3536 Vrms
DC, 1 mV
Sine, 100 Hz:
Sine,
1 kHz:
Sine, 100 kHz:
Amplitude Accuracy Test (continued)
Function Test
Amplitude: 10 V(p-p)
Square, 99.9 Hz
Triangle, 99.9 Hz
Pos. Ramp, 99.9 Hz
Neg. Ramp, 99.9 Hz
Square,
1 kHz
Triangle, 2 kHz
Pos. Ramp, 500 Hz
Neg. Ramp, 500 Hz
Square, 101 kHz
Triangle, 10 kHz
Pos. Ramp, 10 kHz
Neg. Ramp, 10 kHz
Amplitude: 3
V(p-p)
Square, 99.9 Hz
Triangle, 99.9 Hz
Pos. Ramp, 99.9 Hz
Neg. Ramp, 99.9 Hz
Square,
1 kHz
Triangle, 2 kHz
Pos. Ramp, 500 Hz
Neg. Ramp, 500 Hz
Square, 101 kHz
Triangle, 10 kHz
Pos. Ramp, 10 kHz
Neg. Ramp, 10 kHz
Minimum
3.455 v
3.455 v
3.455 v
1.037 V
1.037 V
1.037 V
0.3370 V
0.3370 V
0.3370 V
Minimum
9.95 v
9.85 V
9.85 V
9.85 V
9.95
v
9.85 V
9.85 V
9.85 V
9.50 V
9.50 V
9.00 V
9.00 V
2.955
V
2.955 V
2.955 V
2.955 V
2.955 V
2.955 V
2.955 V
2.955 V
2.700 V
2.850 V
2.700 V
2.700 V
Pass
0 Fail 0
Measured
C-44 Performance tests
Page
6 of 10
