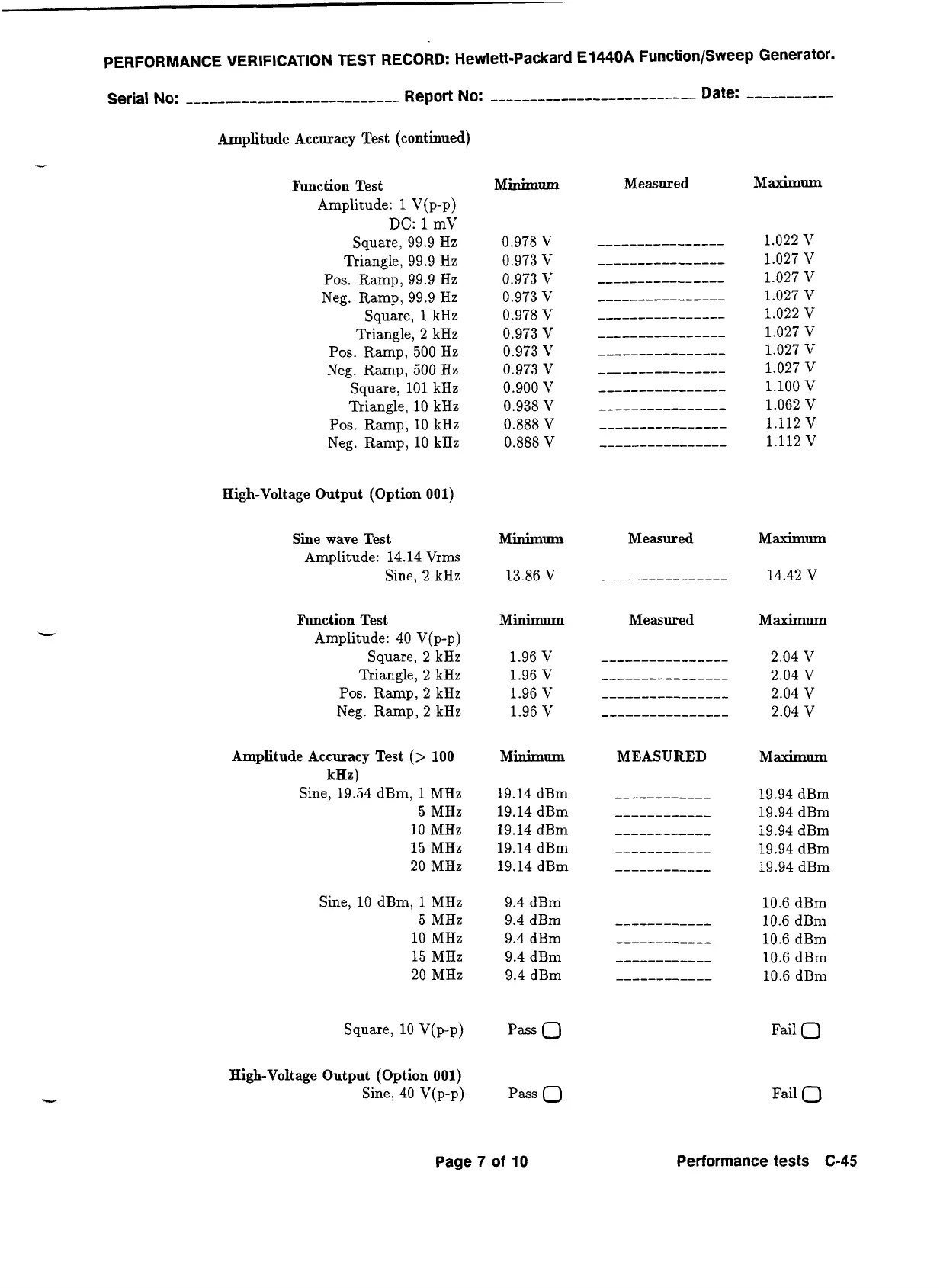

HP 75000 SERIES C - Page 169

Amplitude Accuracy Test (continued)
Function Test
Amplitude: 1 V(p-p)
DC: 1 mV
Square, 99.9
Hz
Triangle, 99.9 Hz
Pos. Ramp, 99.9 Hz
Neg. Ramp, 99.9 Hz
Square, 1 kHz
Triangle, 2 kHz
Pos. Ramp, 500 Hz
Neg. Ramp, 500 Hz
Square, 101 kHz
Triangle, 10 kHz
Pos. Ramp, 10 kHz
Neg. Ramp, 10 kHz
High-Voltage Output (Option 001)
Sine wave Test
Amplitude: 14.14 Vrms
Sine, 2
kHz
Function Test
Amplitude: 40 V(p-p)
Square, 2
kHz
Triangle, 2 kHz
Pos. Ramp, 2 kHz
Neg. Ramp, 2 kHz
Amplitude Accuracy Test (> 100
kHz)
Sine, 19.54 dBm, 1 MHz
5 MHz
10 MHz
15 MHz
20 MHz
Sine, 10 dBm, 1 MHz
5 MHz
10 MHz
15 MHz
20 MHz
Square, 10 V(p-p)
High-Voltage Output (Option 001)
Sine, 40 V(p-p)
Minimum
0.978 V
0.973 V
0.973 V
0.973 V
0.978 V
0.973 V
0.973 V
0.973
V
0.900 V
0.938 V
0.888 V
0.888 V
Minimum
13.86 V
Minimum
1.96 V
1.96 V
1.96 V
1.96 V
Minimum
19.14 dBm
19.14 dBm
19.14 dBm
19.14 dBm
19.14 dBm
9.4 dBm
9.4 dBm
9.4 dBm
9.4 dBm
9.4 dBm
Pass 0
Pass 0
Page 7 of 10
Measured
Measured
----------------
Measured
MEASURED
Maximum
1.022 V
1.027 V
1.027 V
1.027 V
1.022
v
1.027 V
1.027 V
1.027 V
1.100
v
1.062 V
1.112
v
1.112 v
Maximum
14.42 V
Maximum
2.04 V
2.04 V
2.04 V
2.04 V
Maximum
19.94 dBm
19.94 dBm
19.94 dBm
19.94 dBm
19.94 dBm
10.6 dBm
10.6 dBm
10.6 dBm
10.6 dBm
10.6 dBm
Fail
0
Fail 0
Performance tests C-45
