HP 75000 SERIES C User Manual

1. Place module on a bench with the jumper access cutout
uppermost
2. Refer to figure 2-3 and remove the single jumper from the column
where you want the full column jumpered according to the
BG/BR level you require
3. Move the three jumpers that are together, across to the column
you have just emptied
4. Place the single jumper in the vacated column in line with the
other two single jumpers
5. Check that the final jumper positions are correct for the BG/BR
level you require and that all jumpers are secure on their pins
3210 3210 3210 3210
BGiBRO BGIBR1 BGiBR2
BGiBR3
(Factory setting)

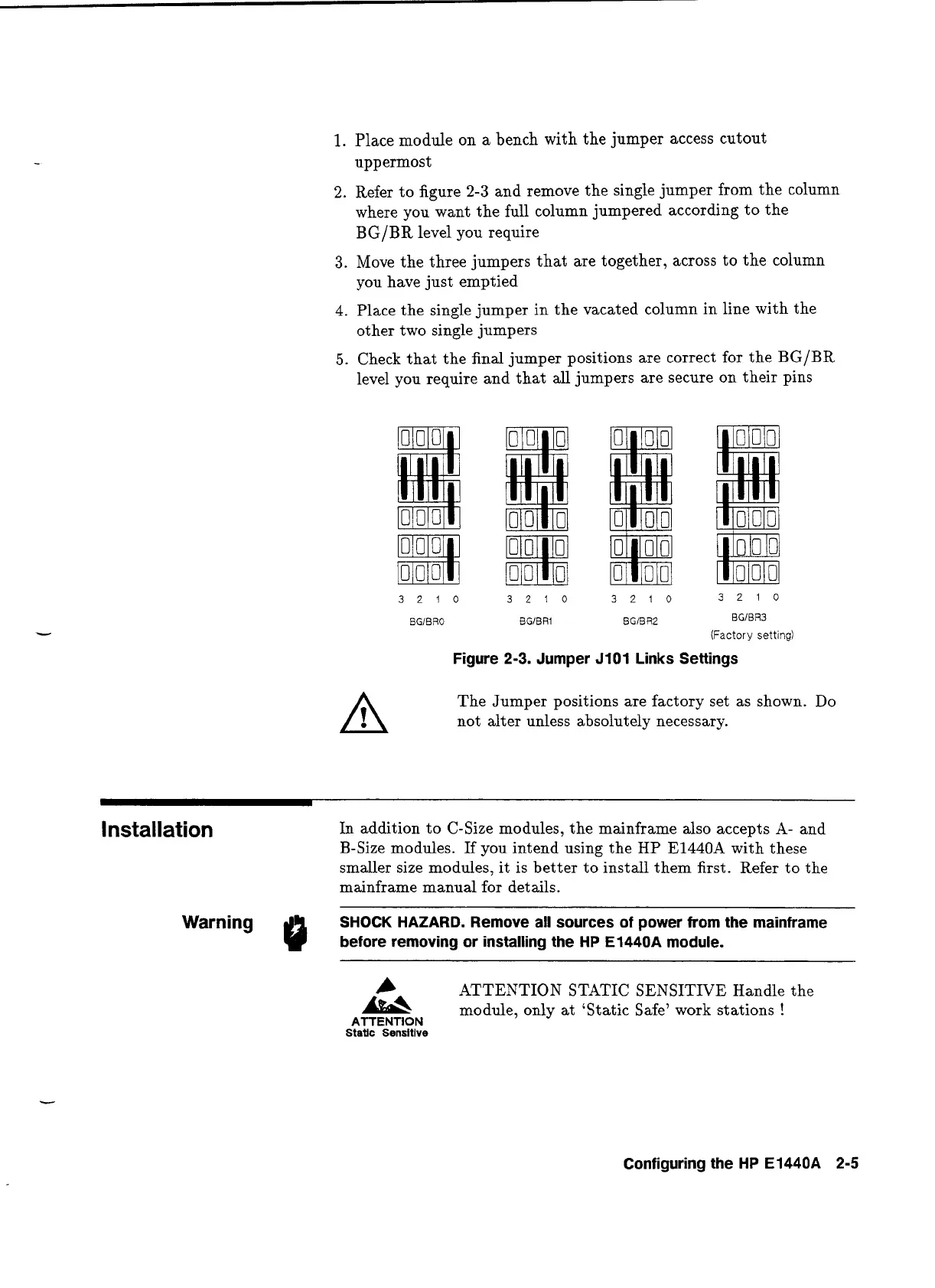

Figure 2-3. Jumper 5101 Links Settings
A
The Jumper positions are factory set as shown. Do
LA
not alter unless absolutely necessary.
l nstallation
In addition to C-Size modules, the mainframe also accepts A- and
B-Size modules. If you intend using the
HP E1440A with these
smaller size modules, it is better to install them first. Refer to the
mainframe manual for details.
SHOCK HAZARD. Remove all sources of power from the mainframe
Warning @ before removing or installing the HP E1440A module.
A
ATTENTION STATIC SENSITIVE Handle the
module, only at 'Static Safe' work stations
!
ATTENTION
Static Sensitive
Configuring the HP E1440A 2-5
