HP 75000 SERIES C User Manual

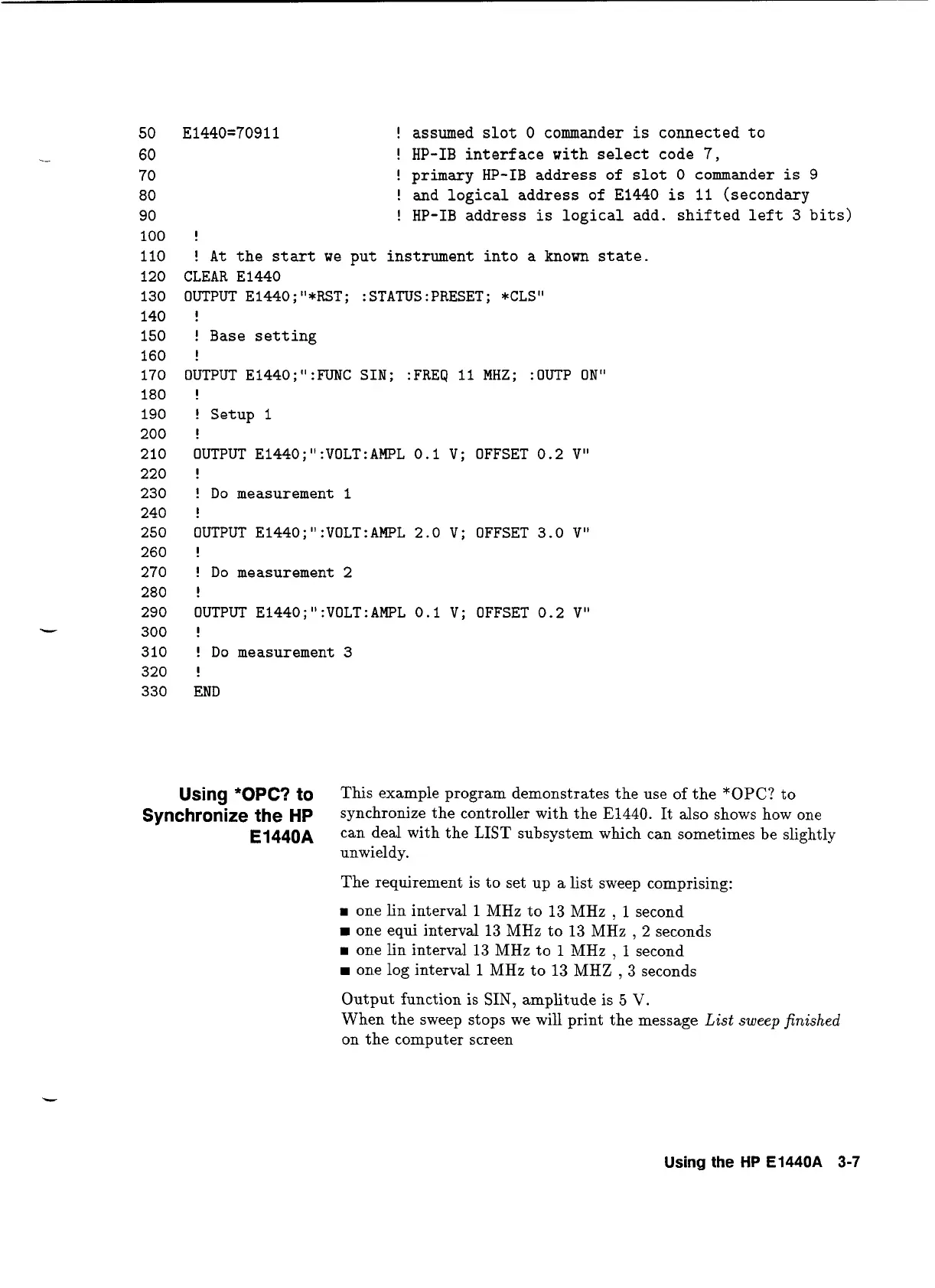

E1440=70911 ! assumed slot 0 commander is connected to
! HP-IB interface with select code 7,
! primary HP-IB address of slot 0 commander is 9
! and logical address of El440 is 11 (secondary
!
HP-IB address is logical add. shifted left 3 bits)
!
! At the start we put instrument into a known state.
CLEAR El440
OUTPUT El440
; I1*RST ;
: STATUS : PRESET ; *CLS1'
!
! Base setting
I
OUTPUT E1440;I1:FUNC SIN; :FREQ 11 MHz; :OUTP ON"
!
! Setup 1
!
OUTPUT El440 ; " :VOLT :AWL 0.1
V; OFFSET 0.2 V"
!
!
Do measurement 1
I
OUTPUT El440 ; I' :VOLT :AWL
2.0
V ; OFFSET 3.0 V"
!
! Do measurement 2
!
OUTPUT El440;":VOLT:AMPL 0.1 V; OFFSET 0.2 V"
!
! Do measurement 3
!
END
Using *OPC? to
This example program demonstrates the use of the "OPC? to
Synchronize the HP
synchronize the controller with the E1440. It also shows how one
~1440~
can deal with the LIST subsystem which can sometimes be slightly
unwieldy.
The requirement is to set up a list sweep comprising:
rn one lin interval 1 MHz to 13 MHz , 1 second
one equi interval 13 MHz to 13 MHz , 2 seconds
rn one lin interval 13 MHz to 1 MHz , 1 second
one log interval 1 MHz to 13 MHz , 3 seconds
Output function is
SIN, amplitude is 5 V.
When the sweep stops we will print the message List sweep finished
on the computer screen
Using the HP E1440A 3-7
