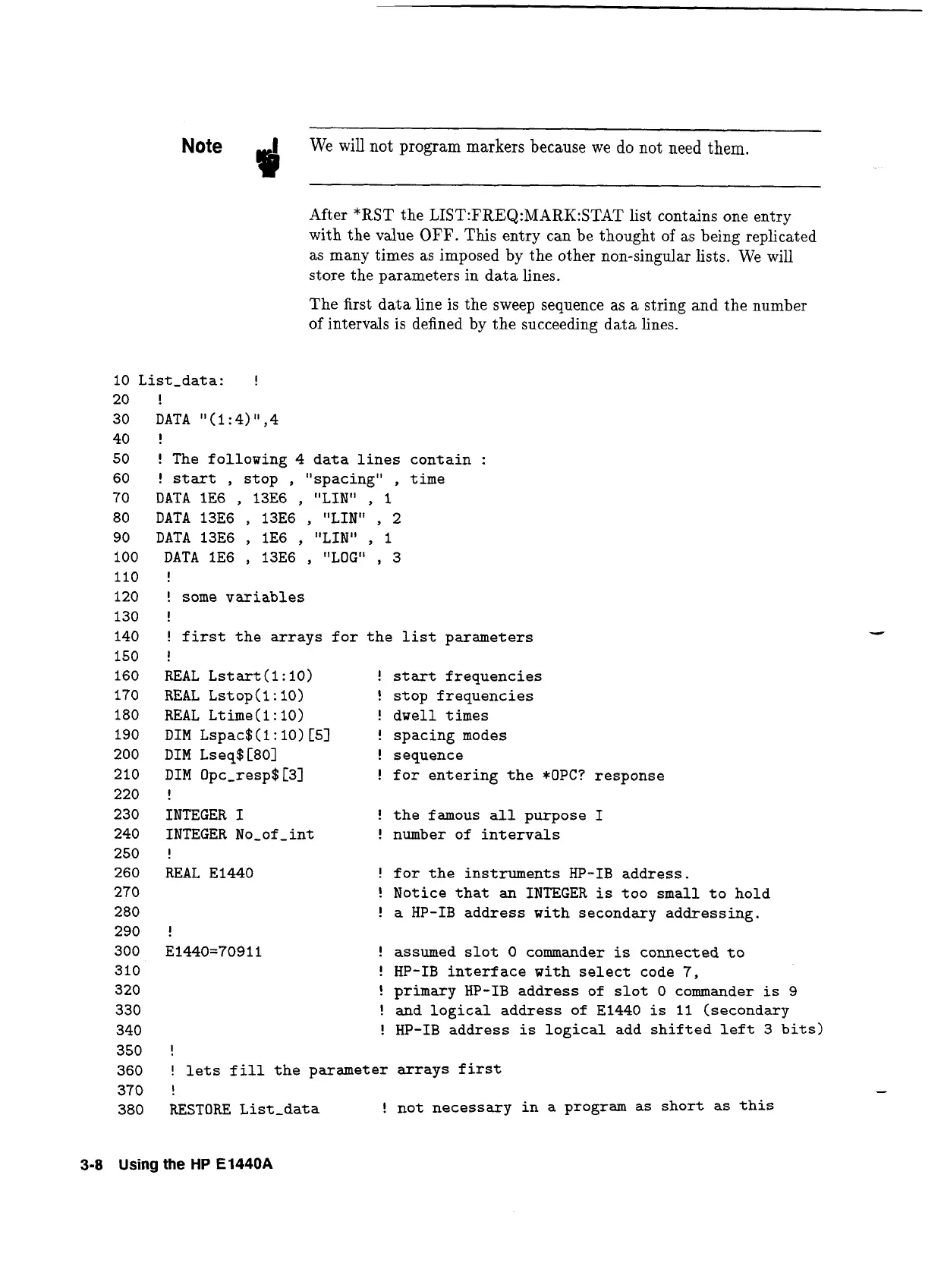

Note
I
We will not program markers because we do not need them.
r
After *RST the L1ST:FREQ:MARK:STAT list contains one entry
with the value
OFF. This entry can be thought of as being replicated
as many times as imposed by the other non-singular lists. We will
store the parameters
in data lines.
The first data line is the sweep sequence as a string and the number
of intervals is defined by the succeeding data lines.
10 List-data: !
20 !
30 DATA "(1:4)",4
40
!
50 ! The following 4 data lines contain :
60 ! start , stop , "spacing" , time
70 DATA lE6
, 13E6 , "LIN" , 1
80 DATA 13E6 , 13E6 , "LIN" , 2
90 DATA 13E6
, 1E6 , "LIN" , 1
100 DATA 1E6 , 13E6 , "LOG" , 3
110 !
120 ! some variables
130
!
140 ! first the arrays for the list parameters
150
!
160 REAL Lstart (1 : 10) ! start frequencies
170 REAL Lstop(1: 10)
! stop frequencies
180 REAL Ltime (1
: 10) ! dwell times
190
DIM Lspac$ (1 : 10) C51 ! spacing modes
200
DIM Lseq$[801 ! sequence
210
DIM Opc-resp$ C31 ! for entering the *OPC? response
220
!
230 INTEGER I ! the famous all purpose I
240 INTEGER No-of-int ! number of intervals
250
!
260 REAL El440 ! for the instruments HP-IB address.
270
! Notice that an INTEGER is too small to hold
280
! a HP-IB address with secondary addressing.
290
!
300 E1440=70911 ! assumed slot 0 commander is connected to
310
! HP-IB interface with select code 7,
320
! primary HP-IB address of slot 0 commander is 9
330
! and logical address of El440 is 11 (secondary
340
! HP-IB address is logical add shifted left 3 bits)
350
!
360 ! lets fill the parameter arrays first
370
!
380 RESTORE List-data
! not necessary in a program as short as this
3-8 Using the HP E1440A
