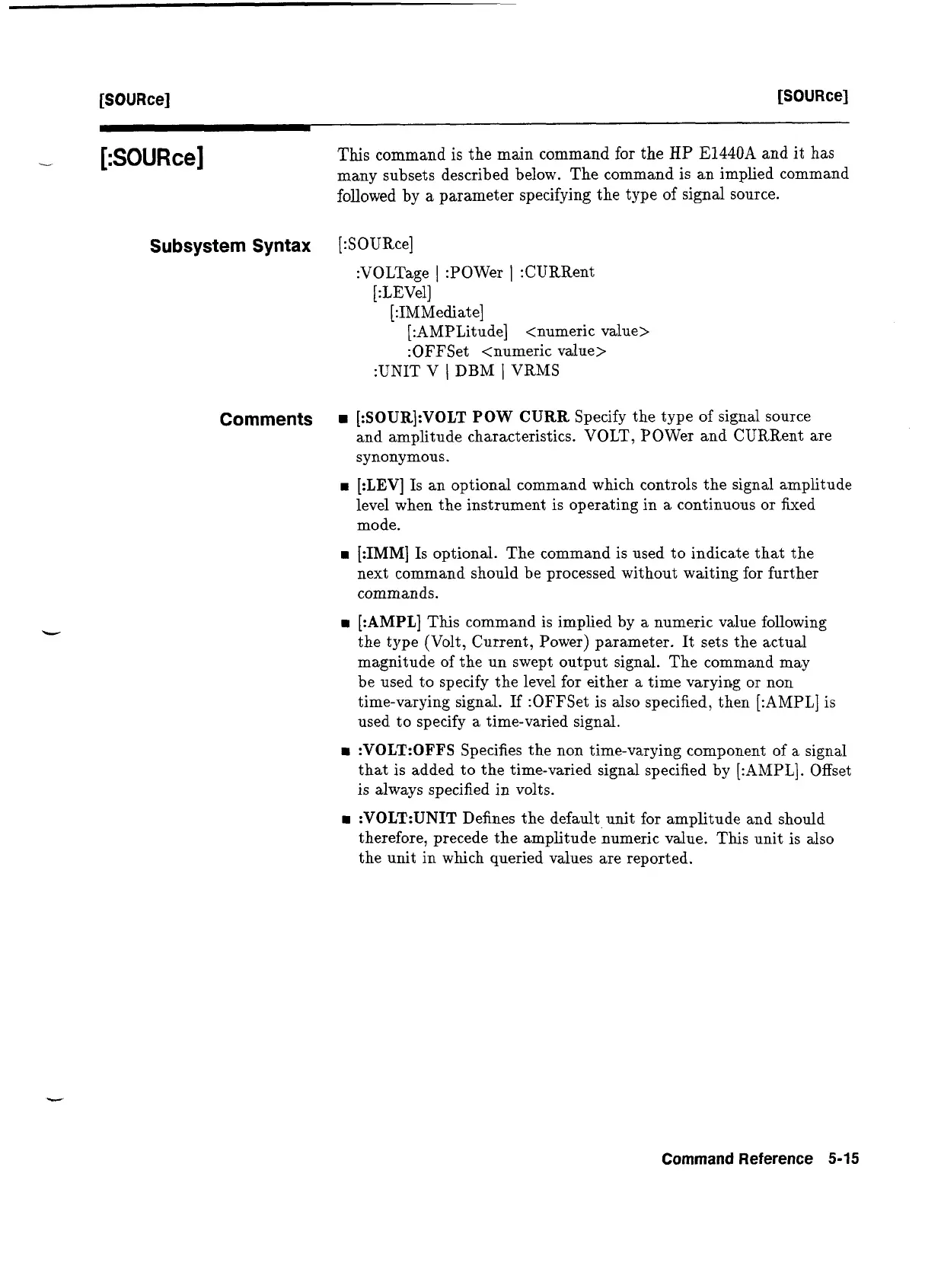

HP 75000 SERIES C User Manual

[SOURce] [SOURce]
- [:SOURce]
Subsystem Syntax
Comments
This command is the main command for the HP E1440A and it has
many subsets described below. The command is an implied command
followed
by a parameter specifying the type of signal source.
:VOLTage
I :Power I :CURRent
[:LEVel]
[:IMMediate]
[:AMPLitude] <numeric value>
:OFFSet <numeric value>
:UNIT V
1 DBM I VRMS
[:SOUR]:VOLT POW CURR Specify the type of signal source
and amplitude characteristics. VOLT, POWer and CURRent are
synonymous.
rn [:LEV] Is an optional command which controls the signal amplitude
level when the instrument is operating in a continuous or fixed
mode.
rn [:IMM] Is optional. The command is used to indicate that the
next command should be processed without waiting for further
commands.
m [:AMPL] This command is implied by a numeric value following
the type (Volt, Current, Power) parameter. It sets the actual
magnitude of the un swept output signal. The command may
be used to specify the level for either
a time varying or non
time-varying signal.
If :OFFSet is also specified, then [:AMPLI is
used to specify a time-varied signal.
rn :VOLT:OFFS Specifies the non time-varying component of a signal
that is added to the time-varied signal specified by [:AMPL]. Offset
is always specified in volts.
rn :VOLT:UNIT Defines the default unit for amplitude and should
therefore, precede the amplitude numeric value. This unit is also
the unit in which queried values are reported.
Command Reference 5-15
