5
BITS MNEMONICS BIT VALUE
15
P1 Board 32768
14
P2 Board 16384
13 Battery Test 8192
6 Motor 3 (Opt. 003) 64
5 Motor 2 32
4 Motor 1 16
3 Laser Control Board 8
2 Analog to Digital Conv. 4
1 Hardware Interface 2
0 Calibration Data 1

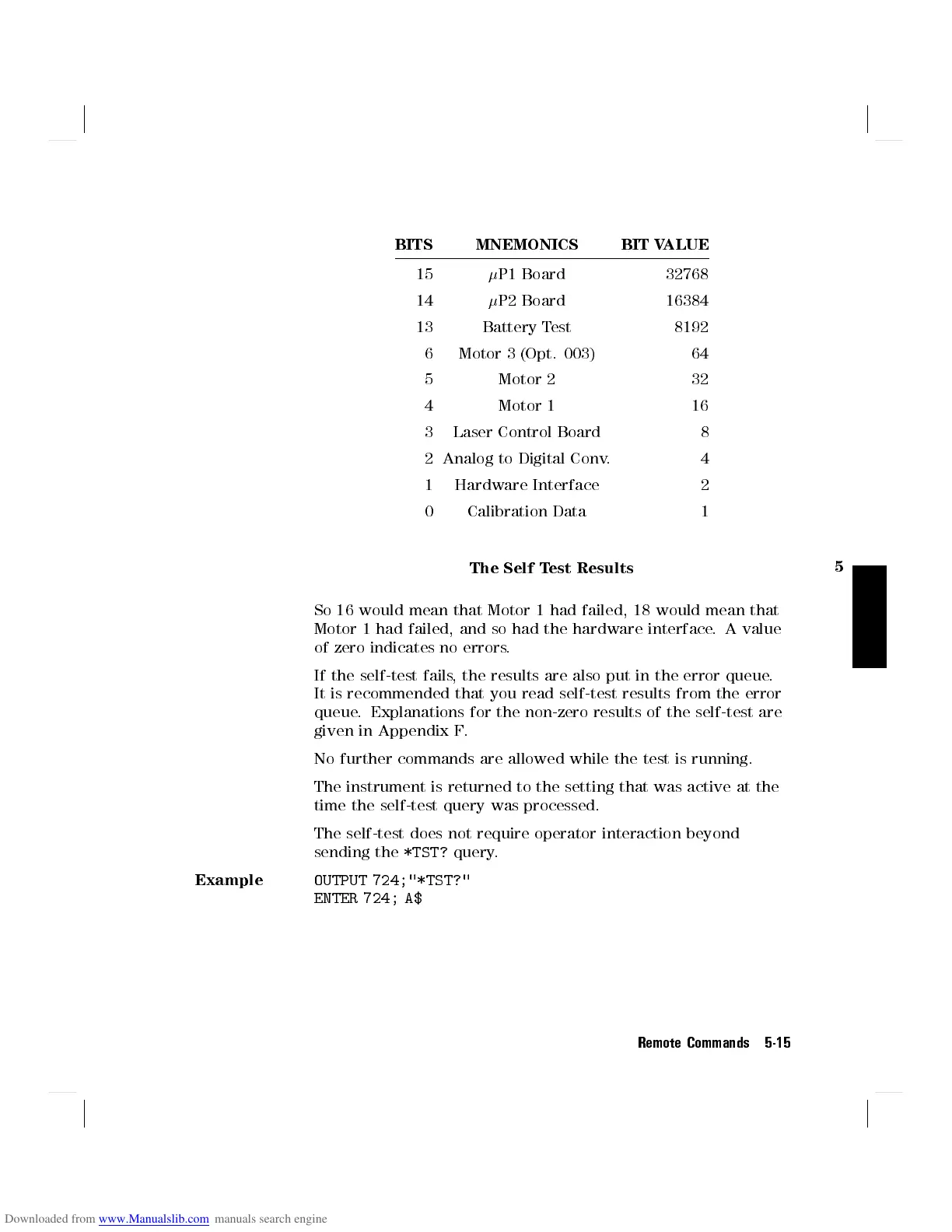

The Self Test Results
So 16 would mean that Motor 1 had failed, 18 would mean that
Motor 1 had failed, and so had the hardware interface. A value
of zero indicates no errors.
If the self-test fails, the results are also put in the error queue.
It is recommended that you read self-test results from the error
queue. Explanations for the non-zero results of the self-test are
given in Appendix F.
No further commands are allowed while the test is running.
The instrument is returned to the setting that was active at the
time the self-test query was processed.
The self-test does not require operator interaction beyond
sending the
*TST?
query.
Example
OUTPUT 724;"*TST?"
ENTER 724; A$
Remote Commands 5-15
