A
Warning
To avoid hazardous electrical shock, do not perform
electrical tests when there are signs of shipping damage to
any portion of the outer enclosure (covers, panels, etc.).
AC Line Power Supply Requirements
The tunable laser source can operate from any single-phase AC power source
that supplies between 100V and 240V at a frequency in the range from 50 to
60Hz. The maximum power consumption is 360VA with all options installed.
Line Power Cable
According to international safety standards, this instrument has a three wire
power cable. When connected to an appropriate AC power receptacle, this cable
earths the instrument cabinet. The type of power cable shipped with each
instrument depends on the country of destination. Refer to Figure A
-1 for the
part numbers of the power cables available.

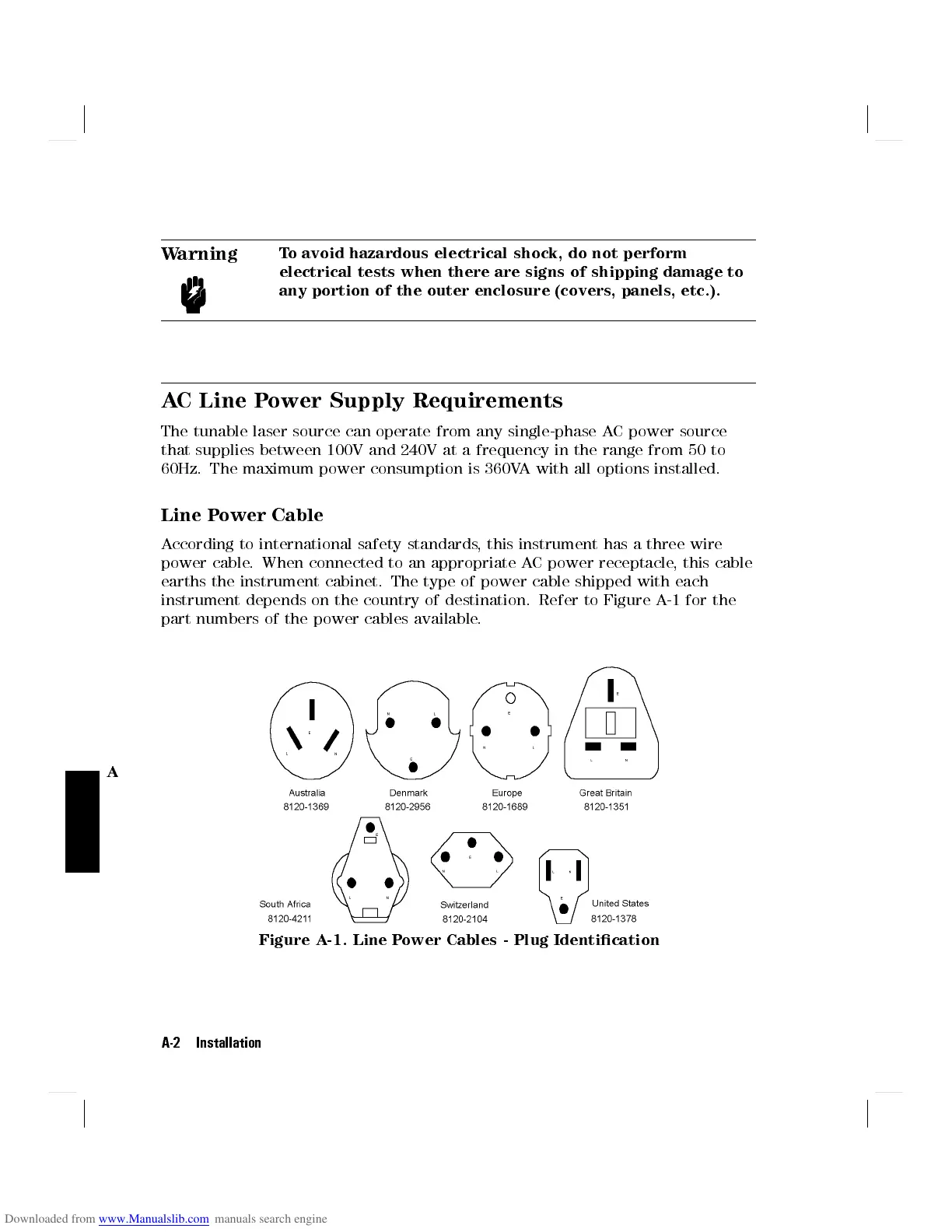

Figure A-1. Line Power Cables - Plug Identication
A-2 Installation
